Accessories and optional modules
Additional platform
In order to improve the availability of certain components on the surface of the feeder, it is possible to
structure the platform surface. Asyril can provide various types of platform on request. Frequently used
structures on Asycube 380 & 530 are as follows:

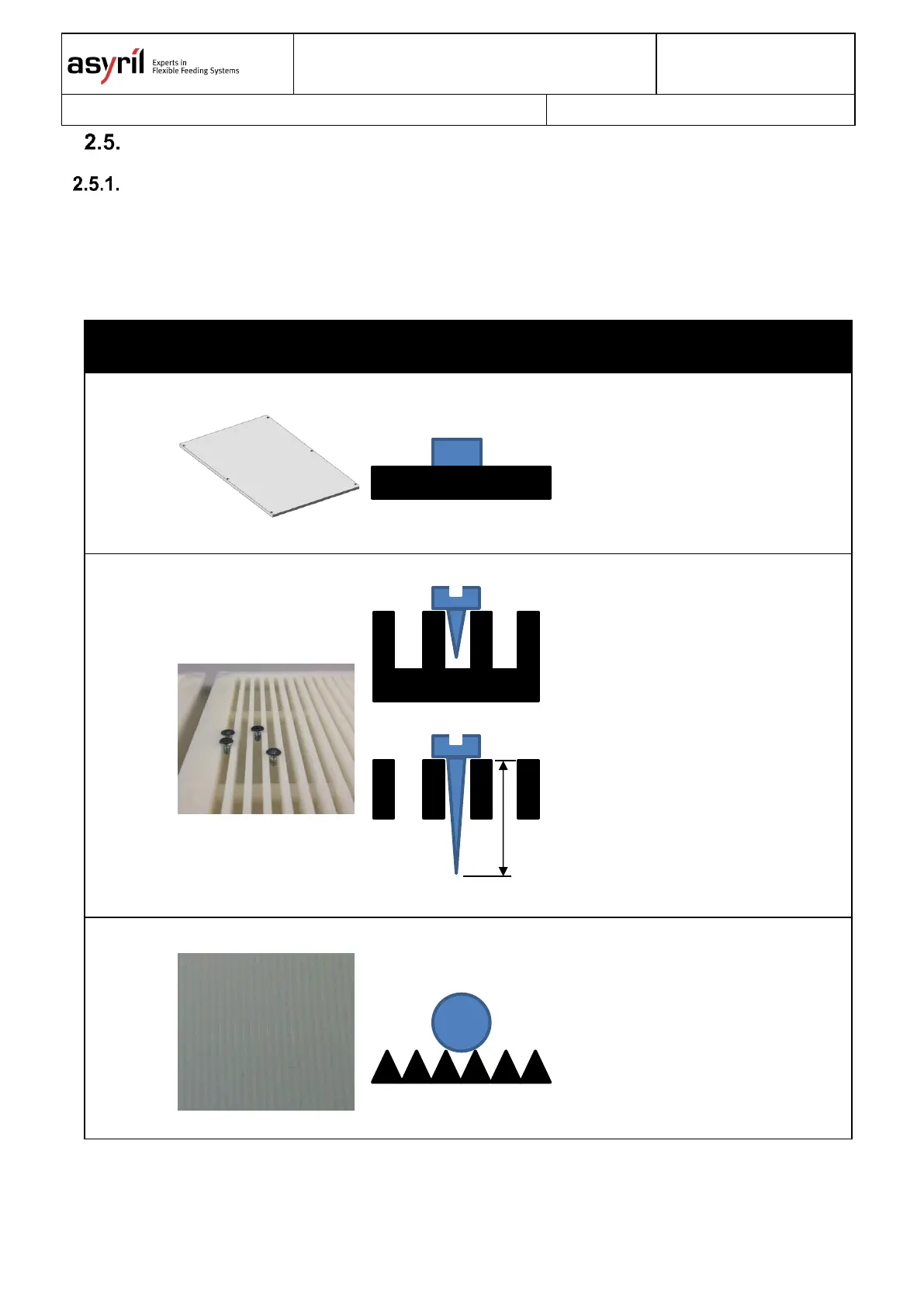

Platform
type
Example – picture
Example – drawing
Advantage
Flat
E.g.: Nuts
This type of plate can be used for a
large variety of components, but
mainly components with a flat surface
allowing a stable resting position.
Grooves
(deep)
E.g.: Screws, rivets
A structured platform with deep
grooves is used to supply screw-type
components to be fitted vertically.
A platform with transverse grooves is
used to supply components with a
maximum length of:
- 120 mm for Asycube 530
- 110 mm for Asycube 380
Grooves
(wide)
E.g.: Cylinders, needles
Wide grooves are useful when
cylindrical components are fed. They
reduce the stabilising time significantly
after component displacement on the
plate surface (stop the components
from rolling on the surface).
