Asyril Asycube 240 User Manual

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
40/50
Replacing/installing the backlight for Asycube 380 and 530
DANGER!
Make sure that all power sources and other cables to the unit are disconnected before
changing the backlight.
Material needed:
- New backlight assembly ordered from Asyril
- Flat wrench size 5.5
- Torx key size 10

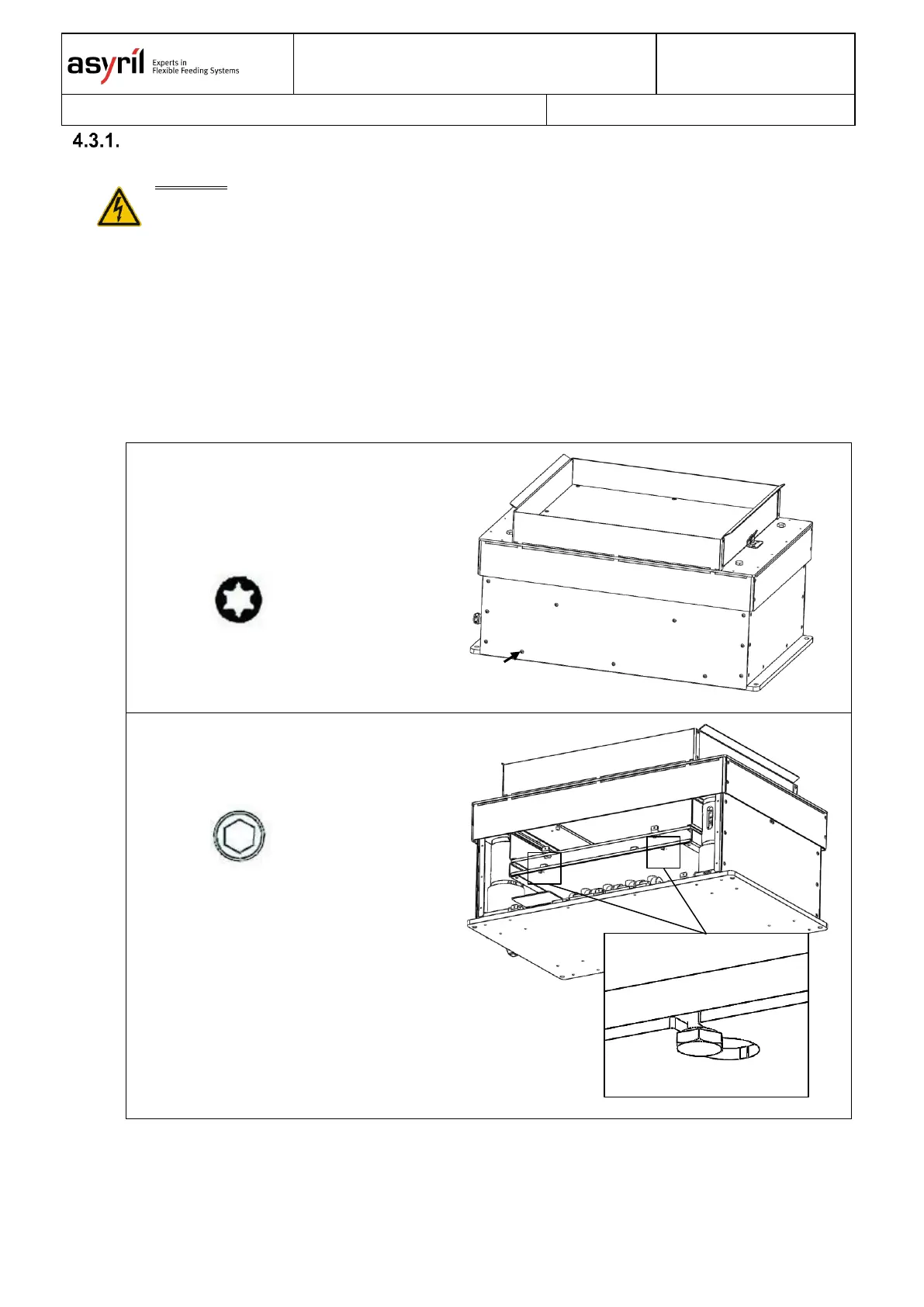

Step 1
Unscrew the screws on both
sides (A) and remove the two
side covers
Use a torx key size 10
Step 2
On both sides, unscrew the four
bolts (B)
Use a flat wrench size 5.5
(A)
(B)
