Asycube 380 & 530
Operating Manual
000.101.151
Version: B
14/50

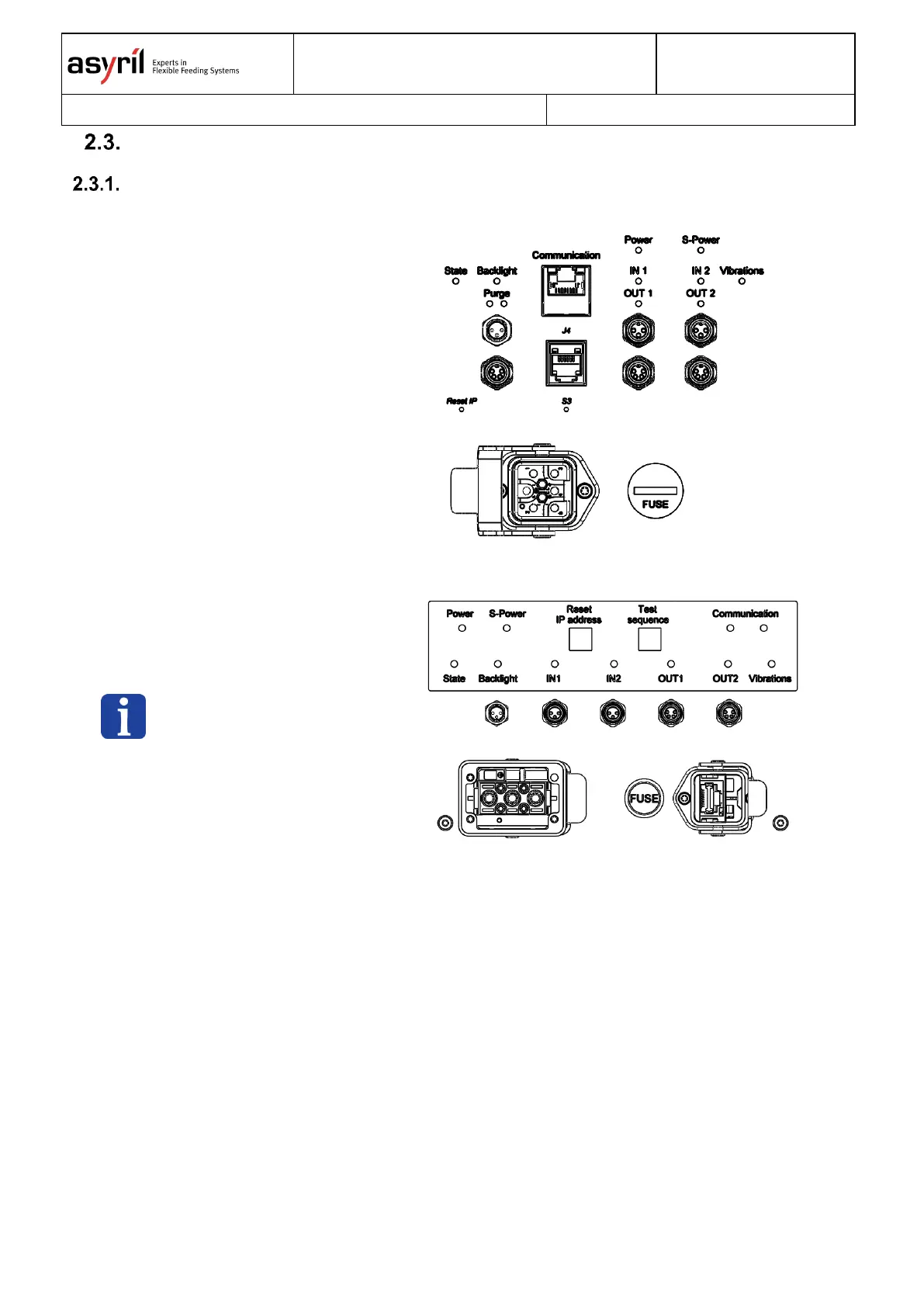

Electrical interfaces
Overview
Asycube is a standalone module with
its own controller. The electrical
interfaces of the Asycube are situated
at the back of the device:
(A) Backlight synchronisation
(B) Digital input 1
(C) Digital input 2
(D) Digital and analogue output 1 for
hopper
(E) Digital and analogue output 2 for
hopper
(F) Power connection
(G) Fuse
(H) Ethernet connection (RJ45)
(I) Purge connector (Asycube 380 only)
(J) Programming connection (RJ12)
(K) Reset IP address
NOTE:
The cables are not part of the
Asycube, but can be ordered
separately.
(Please refer to chapter 2.5.3
"Cables")
Figure 2-5: Asycube 380 electrical interfaces
(H)
(A)
(C)
(D)
(E)
(F)
(B)
(G)
(A)
(B)
(C)
(E)
(D)
(I)
(G)
(F)
(H)
(J)
K
Figure 2-6 Asycube 530 electrical interfaces
