Asycube 380 & 530
Operating Manual
000.101.151
Version: B
18/50

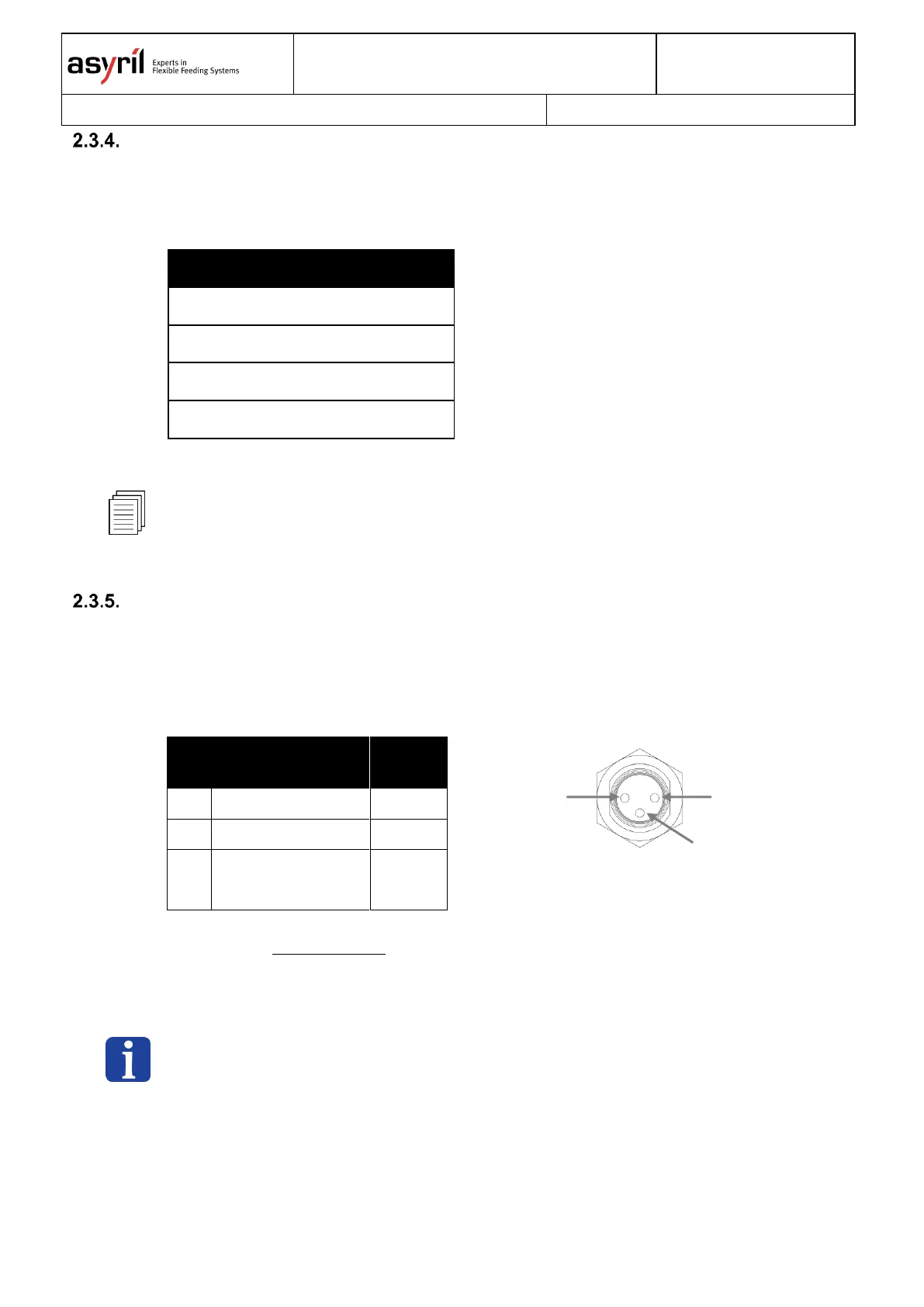

Communication
The communication with the Asycube is established by a standard Ethernet
communication via the RJ45 port.
Characteristic
Value
Default IP
address
192.168.127.254
Default subnet
mask
255.255.255.0
Port
4001
MAC address
Can be read by
ARP request
For more information on the procedure to restore the default IP address, please see
chapter 4.3.2.
Backlight synchronisation
A standard M8 3-pin cable is used to synchronise the camera's image acquisition with the Asycube
backlight. This cable must be connected as follows:
Pin
Waveform
Cable
(option)
(1)
Not wired
brown
(3)
0 V GND
blue
(4)
+24 V pulse
(illumination synch.)
black
Connector type (on Asycube side):
M8, 3P, male
Figure 2-13: Backlight synchronisation
Asycube 380 and 530
NOTE:
The Asycube backlight illumination time corresponds to the signal impulse length.
(3)
(4)
(1)
