FlexiROC T35 R/T40 R 9 Angle instruments

112 No: 3171473547.1 en

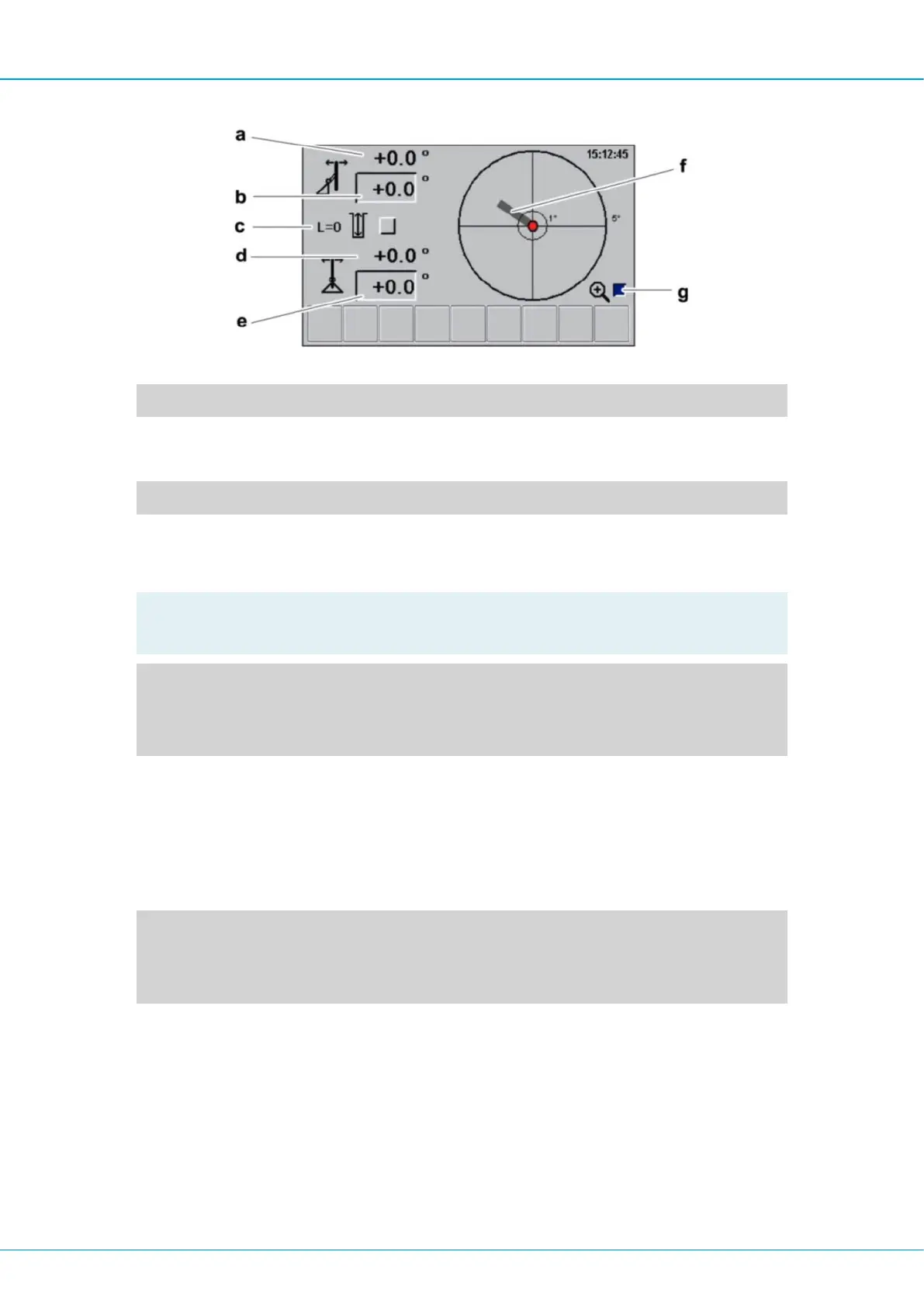

Directional instrument - graphic display mode

Spike forward = +º

Spike back = -º

Table38: Feed movement - Tilt (feeder forward and reverse)

Spike left = +º

Spike right = -º

Table39: Feed movement - Swing (feeder right and left)

NOTE: The display shows Tilt movement forwards = +º and back = -º. To show: drill

bearing from drill rig with + angles. Drill bearing in under the drill rig with - angles.

a Actual inclination front/back: Shows the ac-

tual inclination of the feeder. When the feeder is

positioned perfectly, the desired value and the ac-

tual value are the same.

b Desired inclination front/back: Set the desired

inclination in relation to the reference point (sight).

Mark the field by moving with the arrow keys until

the field is blue and then press Enter to get a

flashing cursor under the digits. Set the desired

hole inclination using the arrow keys and press

Enter to confirm.

c Actual inclination left/right: Shows the actual

inclination of the feeder. When the feeder is posi-

tioned perfectly, the desired value and the actual

value are the same.

d Desired inclination left/right: Set the desired
