FlexiROC T35 R/T40 R 10 Options
126 No: 3171473547.1 en
The electric filler pump will stop automatically when the drill rig fuel tank is full. It will also
stop if the source of fuel runs out.
10.3 Water mist system
10.3.1 General
The water mist system is a pressurised system that is pressurised from the drill rig's air
system.
n The water mist system comprises:
l Tank
l Safety valve
l Strainer
l Two cocks
l Two valves
l Non-return valve (to prevent water flowing back to the compressor).

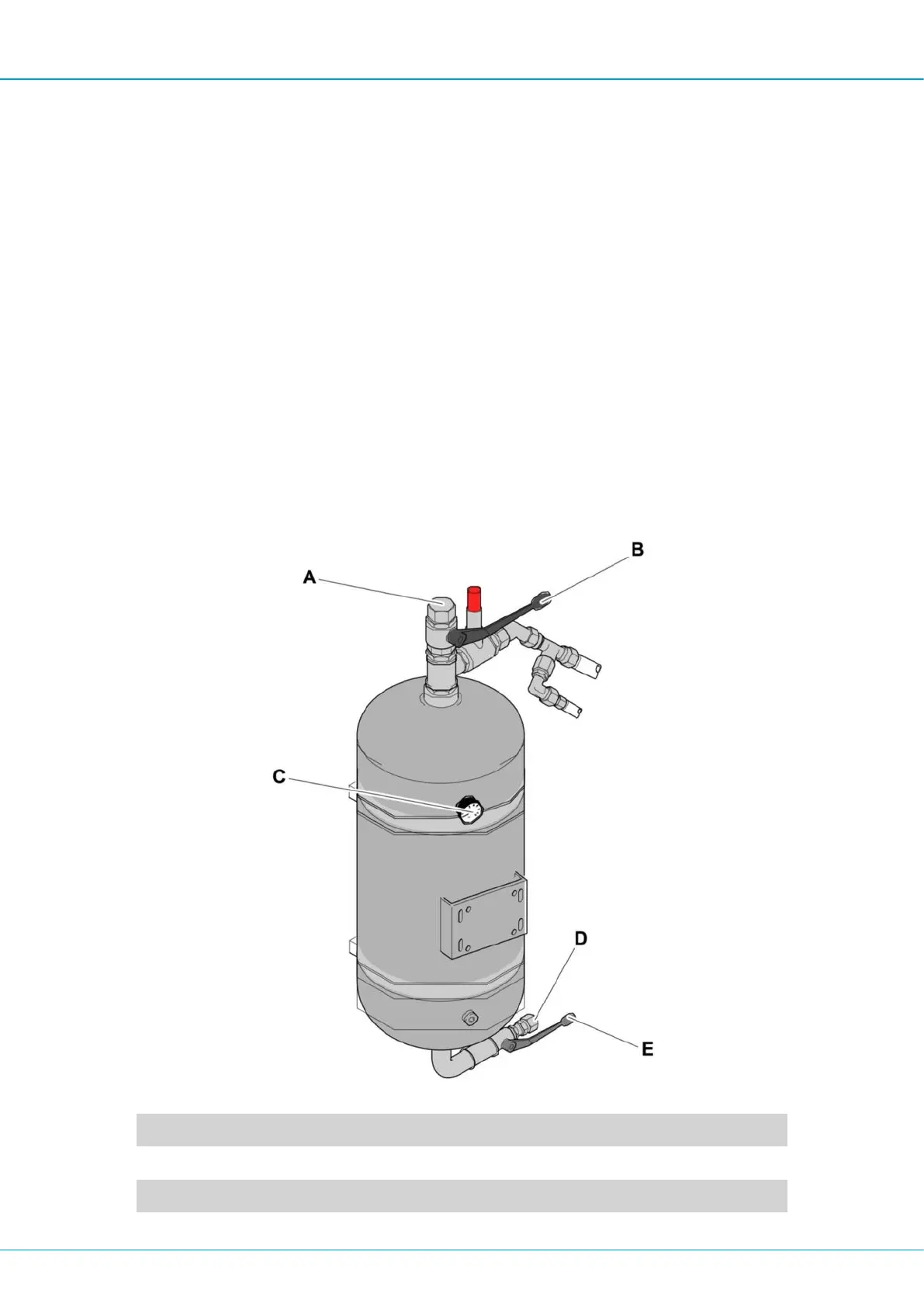

Pressure tank
Pressure tank.
A Cover.
B Filler cock.
C Pressure gauge.
