FlexiROC T35 R/T40 R 7 Before drilling
95 No: 3171473547.1 en
11.

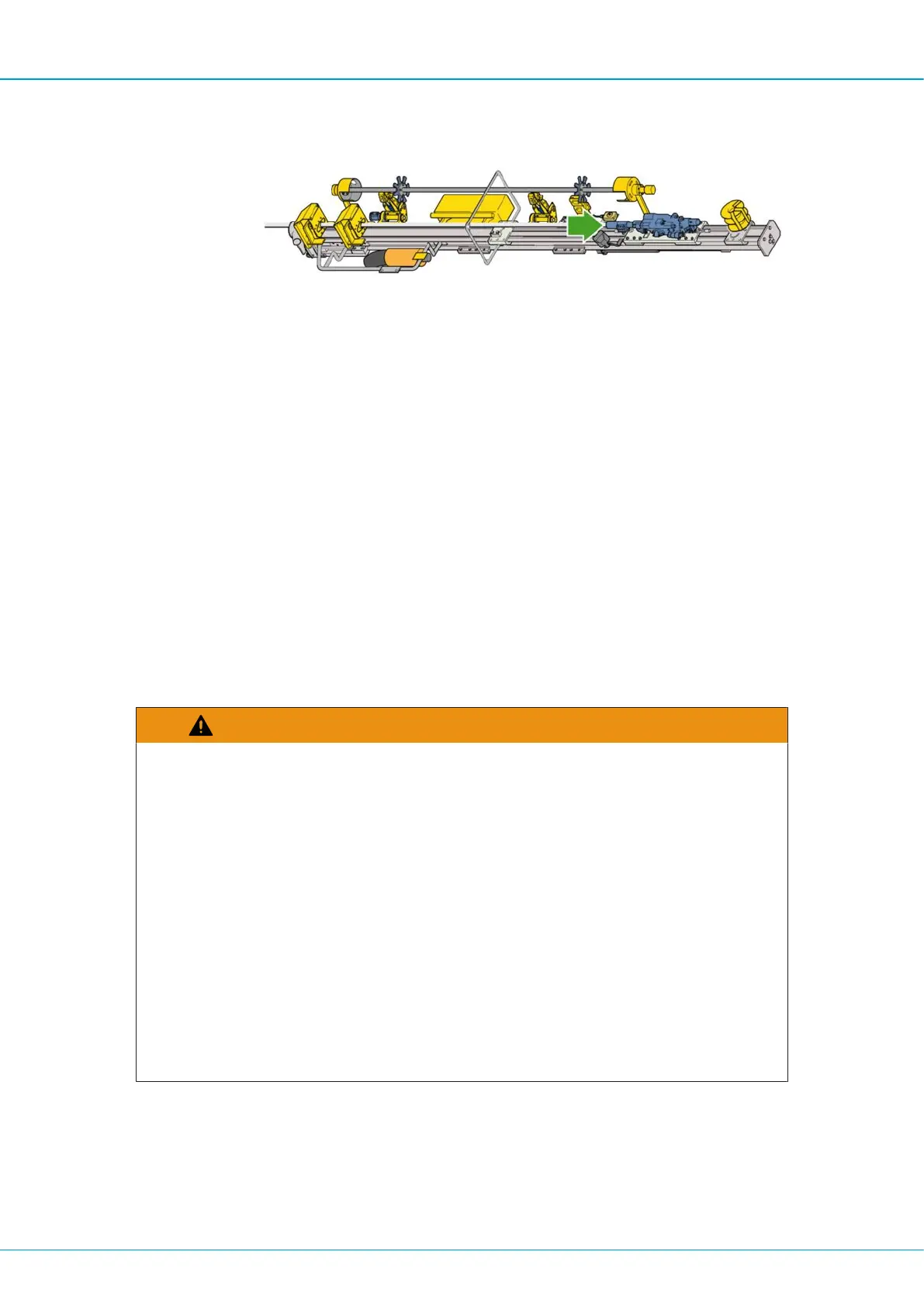

Run the rock drill up with the drill rod until it stops at the automatic stop in the drill
steel. Right-hand multifunction lever, position (c).
When switch S113 is activated, the cradle will be stopped automatically in the right
position for inserting the drill rod into the carousel.
12.
Activate loose grip by moving the multifunction lever S260 to neural position. Run the
rock drill up until it stops at the automatic stop for inserting the rod in the carousel.
13.
Open the rod handling grippers and move out the rod handling arms. Turn the left-
hand multifunction lever anticlockwise while pulling it back.
14.
Activate hard grip with the rod grippers by leaving the left-hand multifunction lever
pulled back and turning it to neutral.
15.
Unthread the drill road from the adapter. Right multi-function lever, down to the right.
16.
Run up the rock drill when the drill rod has been unscrewed. Right-hand multifunction
lever, position (c).
17.
Move the drill rod into the carousel. Left multi-function lever, Up (position a).
18.
Repeat the procedure until the required number of drill rods are in the carousel.
7.3 Setting up for drilling
WARNING
Serious injury
Risk of dumping
u May cause severe personal injury and damage to property
u Keep the track oscillation cylinders locked
u Do not lower the hydraulic jack too much, the rear sections of the track frames must
stand firmly against the ground
u The angles for Downward/Upward/Lateral, specified in Technical data, must NOT be
combined
u Do not exceed the angles of inclination, see Technical data
u Note the gradient meters' values
u Never operate the drill rig from the downhill side
u Ensure that unauthorised personnel are not within the working area
