Operator’s instructions
1. General
18
Air system
The air system consists of the compressor with oil separator, hoses and valves. The
compressor is belt-driven from the diesel engine.
The compressor element is lubricated by an air-oil mixture. The mixture is separated
in the oil separator.
The system delivers air for flushing the borehole, cleaning the dust collector filter
and to the rock drill lubrication system (ECL).
Pump configuration, see separate instructions
Identification of the drill rig
Data plates are affixed to the front part of the chassis frame and the right-hand side of
the boom support.
Table:
• They contain the following information:
-Address
- Type of drill rig
- Serial number
-Installed power
- Total weight of drill rig
7RPC-F 20 Rotation control
8Rotation 21 Pump 1
9DCT (Dust collector) 22Pump 2
10 Winch 23 Pump 3
11 Positioning, front panel 24 Pump 4
12 Positioning, rear panel 25 Hydraulic Tank
13 Panel selector 26 Cooling fan

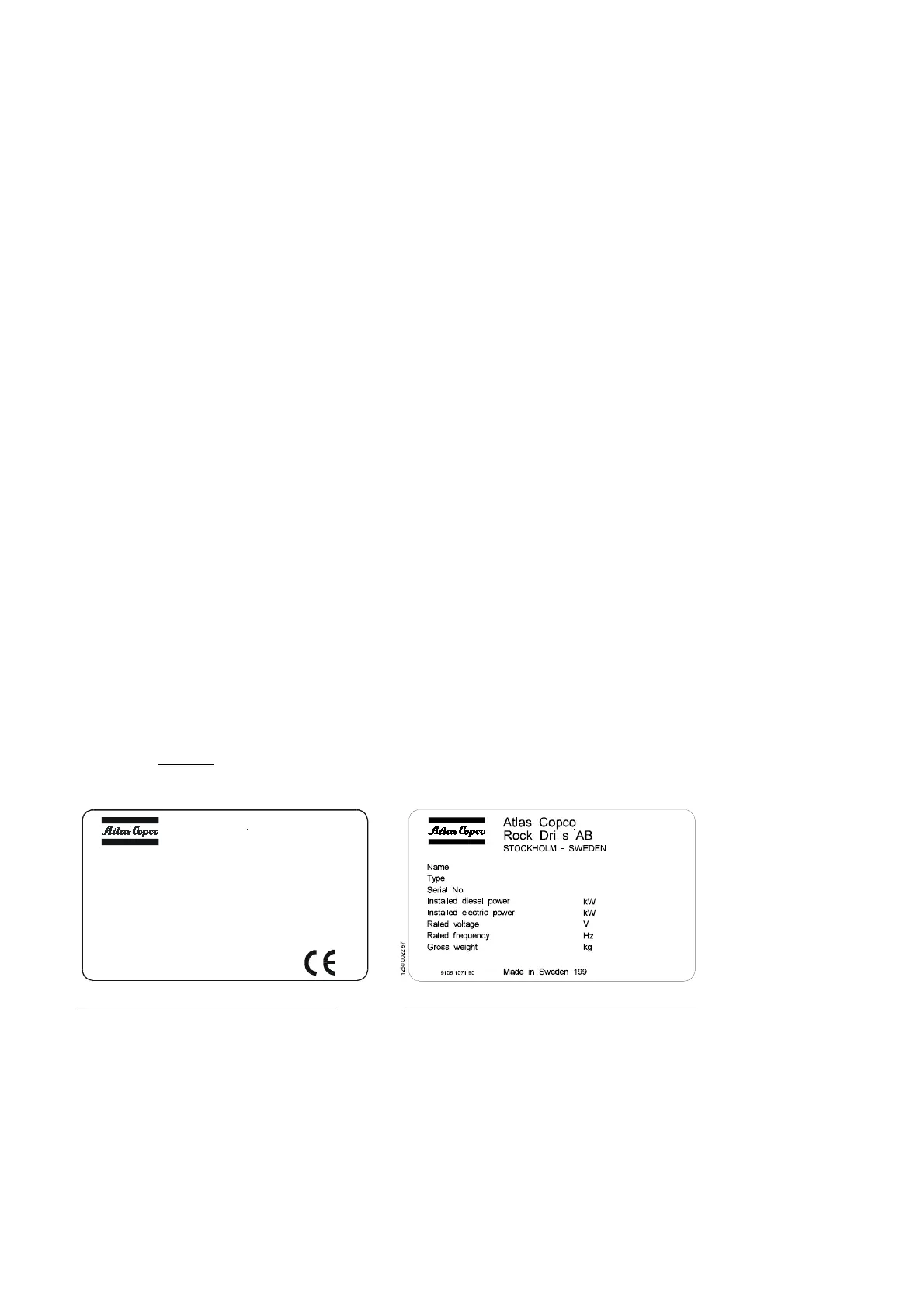

Figure: Data plate for CE approved rig
Figure: Data plate for non-CE approved rig
Rock Drills AB
Atlas Copco
STOCKHOLM - SWEDEN
Name
Type
Serial No.
Installed diesel power
Installed electric power
Rated voltage
Rated frequency
Gross weight
Made in Sweden 199
kW
V
Hz
kg
kW
9106 1071 90
5
5
