Operator’s instructions
8. Options
84
Diagnostics
Table:
ROC-ANGIE
General
ROC-ANGIE measures forward/rearward and right/left angles from the feeder's ver-
tical position.
If straight vertical holes are drilled then it is unnecessary to aim ROC-ANGIE.
The drill rig can stand in any direction at all relative to the bench if ROC-ANGIE is
correctly aimed.
FAULT ACTION
No angles are indicated and
there is no lighting in the
displays

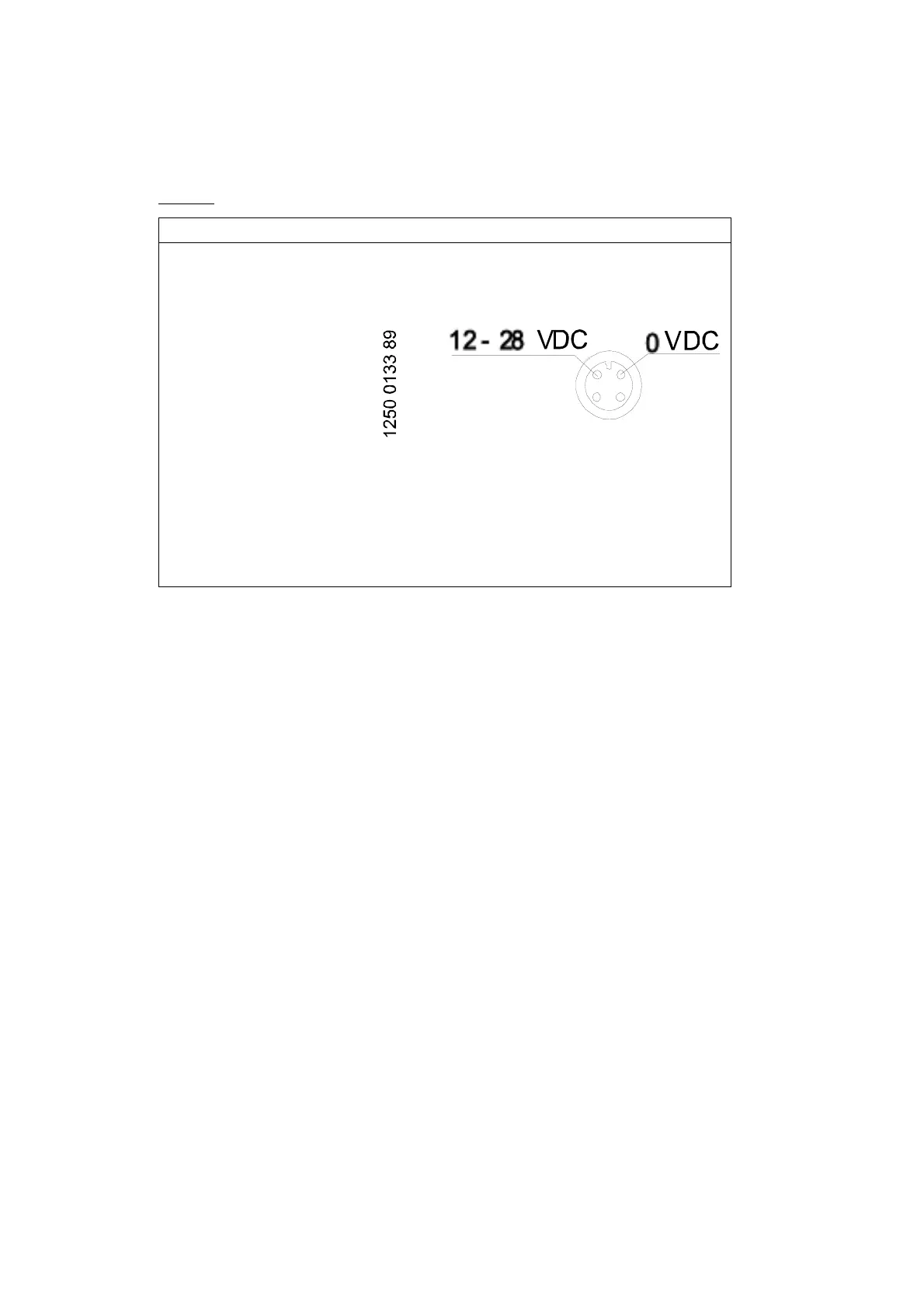

Check the voltage between 0 VCD and 12-28
VCD on the power supply cable's connection to
the instrument. The voltage should be 12 to 28 V.
If there is no voltage, check the fuse, the cable
and the drill rig's electrical system. If there is
voltage, replace the instrument.
The displays show no signs or
irrelevant signs and the
lighting is switched on.
Restart the instrument by disconnecting the power
supply for 30 seconds.
If the instrument still does not work, replace the
instrument.
