Operator’s instructions
8. Options
86
Preparations for assembly

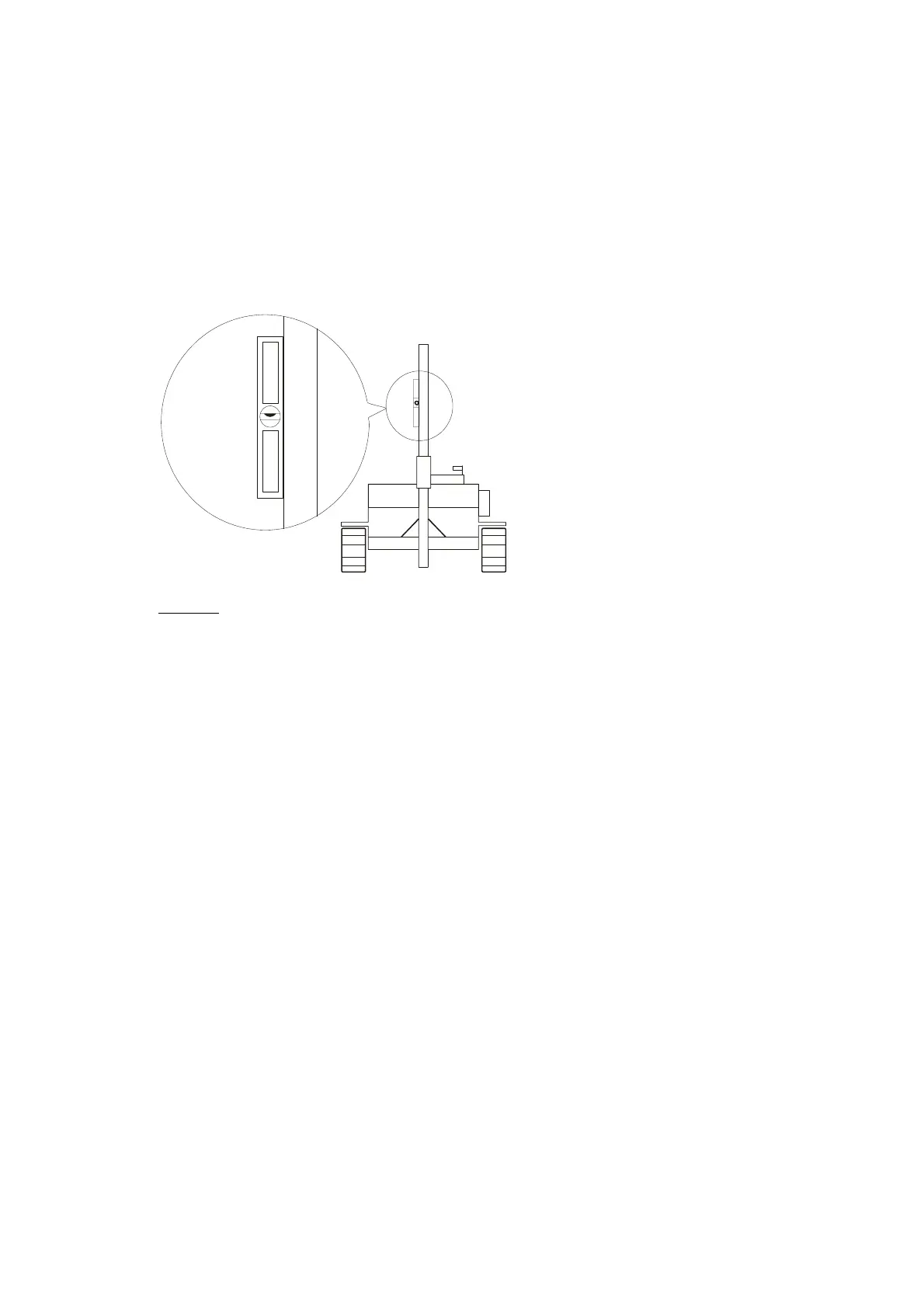

1. Set the feed in a vertical position with the aid of a spirit level. Adjust forward/rear-
ward for a precise vertical reading.
2. Adjust left/right for a precise vertical reading.
3. Check that both left/right and forward/rearward are still vertical.
Figure:
Assembly
1. Mount the retaining yoke/bracket or welded beam on the feeder at such a height
that the receiver is easy to read. To facilitate matters, mount ROC-ANGIE on the
same side as the drill operator.
2. Position ROC-ANGIE in the retaining yoke and tighten the bolts. If everything is
correct, both scales should now show 0° even if ROC-ANGIE is rotated round its
own axis. If this is not the case, proceed to the “adjustment” section.
Conditions
The feed must be in a precisely vertical position, both left/right and forward/rear-
ward. See the “assembly” section.
1250 0092 62
