2.1.2 Rear Panel
The device's rear panel provides the power connectors, which are located on the power
supply module, as shown in the figure below and described in the subsequent table.

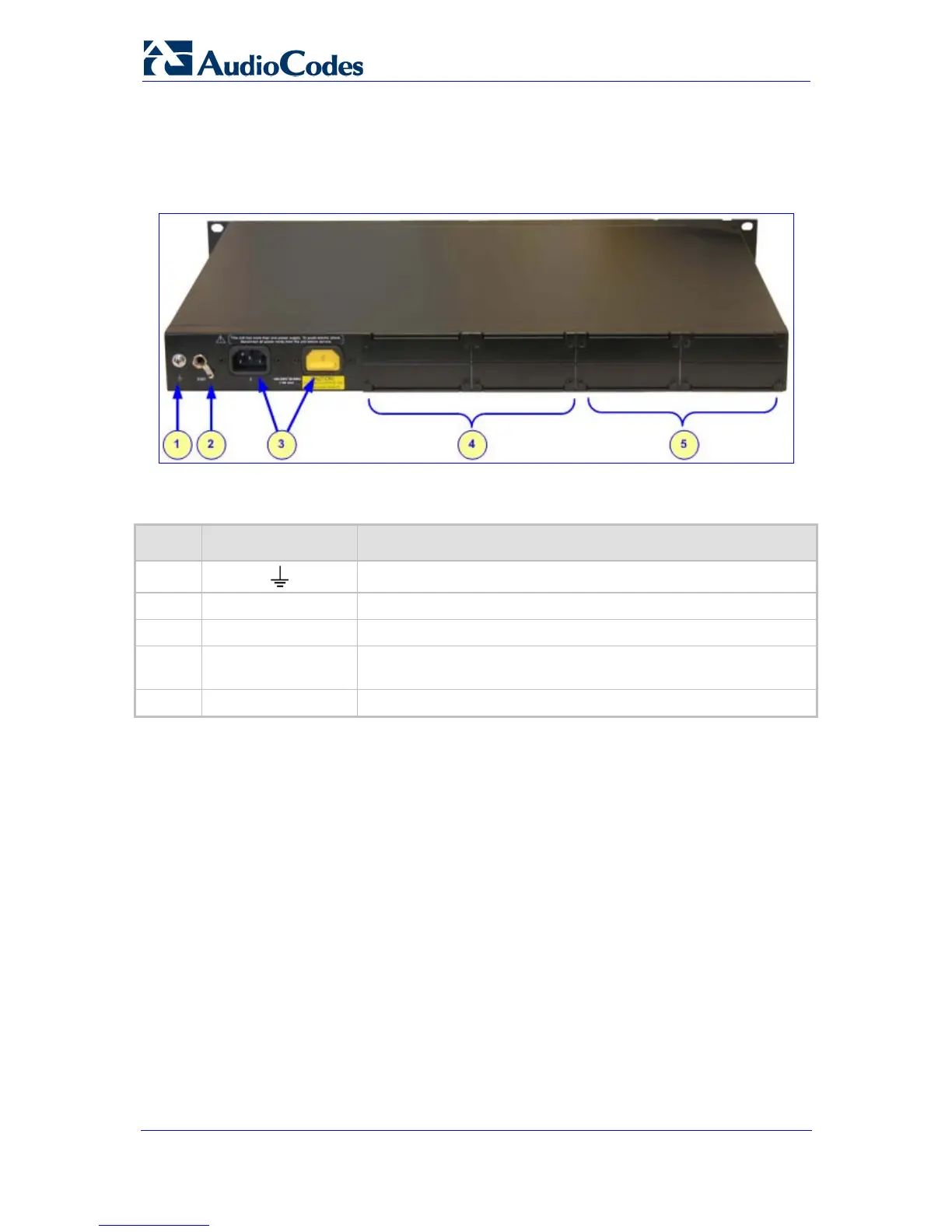

Figure 2-2: Rear Panel
Table 2-2: Rear Panel Component Descriptions
Item # Label Component Description
1
Protective earthing screw.
2 ESD Electrostatic Discharge (ESD) socket.
3 100-240V~1A Dual AC Power Supply Entry.
4 -
Slots for housing optional OSN server modules (refer to Open
Solution Network (OSN) Server Platform on page 61).
5 - Slots reserved for future use.
2.2 Unpacking Package Contents
Follow the procedure below for unpacking the carton in which the device is shipped.
¾ To unpack the device:
1. Open the carton and remove packing materials.
2. Remove the chassis from the carton.
3. Check that there is no equipment damage.
4. Ensure that in addition to the chassis, the package contains the following items:
• One or two AC power cables.
• Four anti-slide bumpers for desktop installation option.
• Two-meter length RS-232 DB-9 adaptor cable (for direct serial connection to PC).
5. Check, retain and process any documents.
6. Notify AudioCodes or your local supplier of any damage or discrepancies.
