117
Entertainment OverviewControlsDriving hintsNavigationMobilityReference
If you no longer require the partition net, take
hold of the rail at both ends and remove it from
the holders, arrow 2. Allow the partition net to
slide slowly into the cassette.

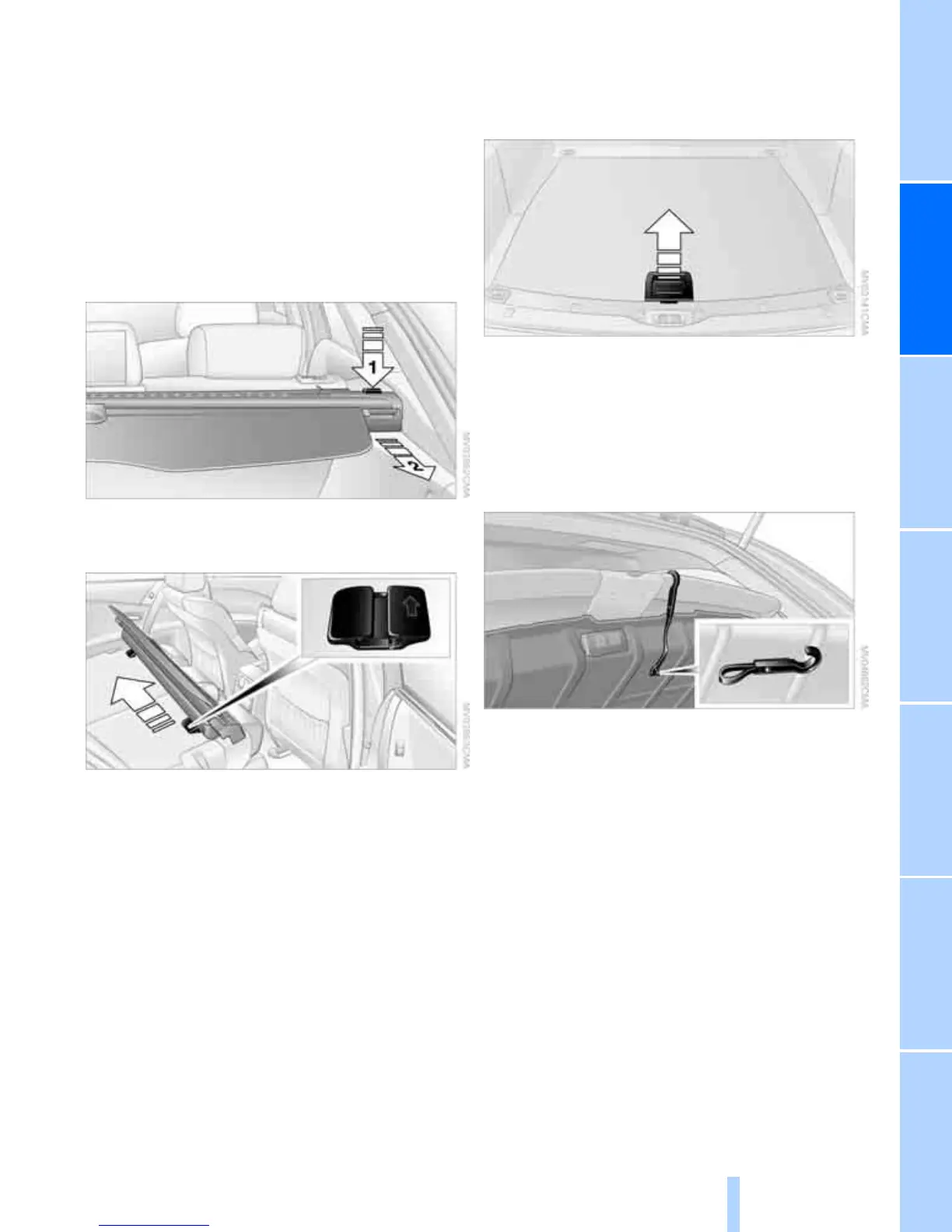

With enlarged load area
1. Fold down both rear seat backs, see Enlarg-
ing the load area.
2. Release the casing at the buttons on either
side, arrow 1.
3. Pull out the casing to the rear, arrow 2, tak-
ing care not to tilt it.
4. Push the casing into the guides on the
reverse of the seat backs.
5. Carefully pull out the partition net and insert
it in the front holders, see With normal load
area. This is best done working from the
front seat.
To restore the original arrangement, proceed in
the reverse order. Finish off by sliding the cas-
ing forwards in the holders on both sides until it
engages. The red warning zone in the recess
then disappears. Tug the casing to check that it
is properly locked in position.
Compartment in floor
To open: reach into the recess and fold up the
handle.
The floor panel flap can be removed.
The partitions in the compartment can be rear-
ranged.
Folding up spare wheel cover
Swing up the cover.
Disengage the hook from the holder and
engage it in the floor panel flap.
Before folding down, replace the hook in its
original position.
Storage package*
Tensioning straps
You can disengage the right-hand tensioning
strap, e.g. to open the side panel. To disengage
it, pull it back at the rear end; to engage it, press
it into the opening. It can in addition be secured
in the middle. This allows you to secure objects
of varying sizes with it.
