SP00D00490 2020-01-08| Robert Bosch GmbH
Initial settings | ACS 763/863 | 55 en

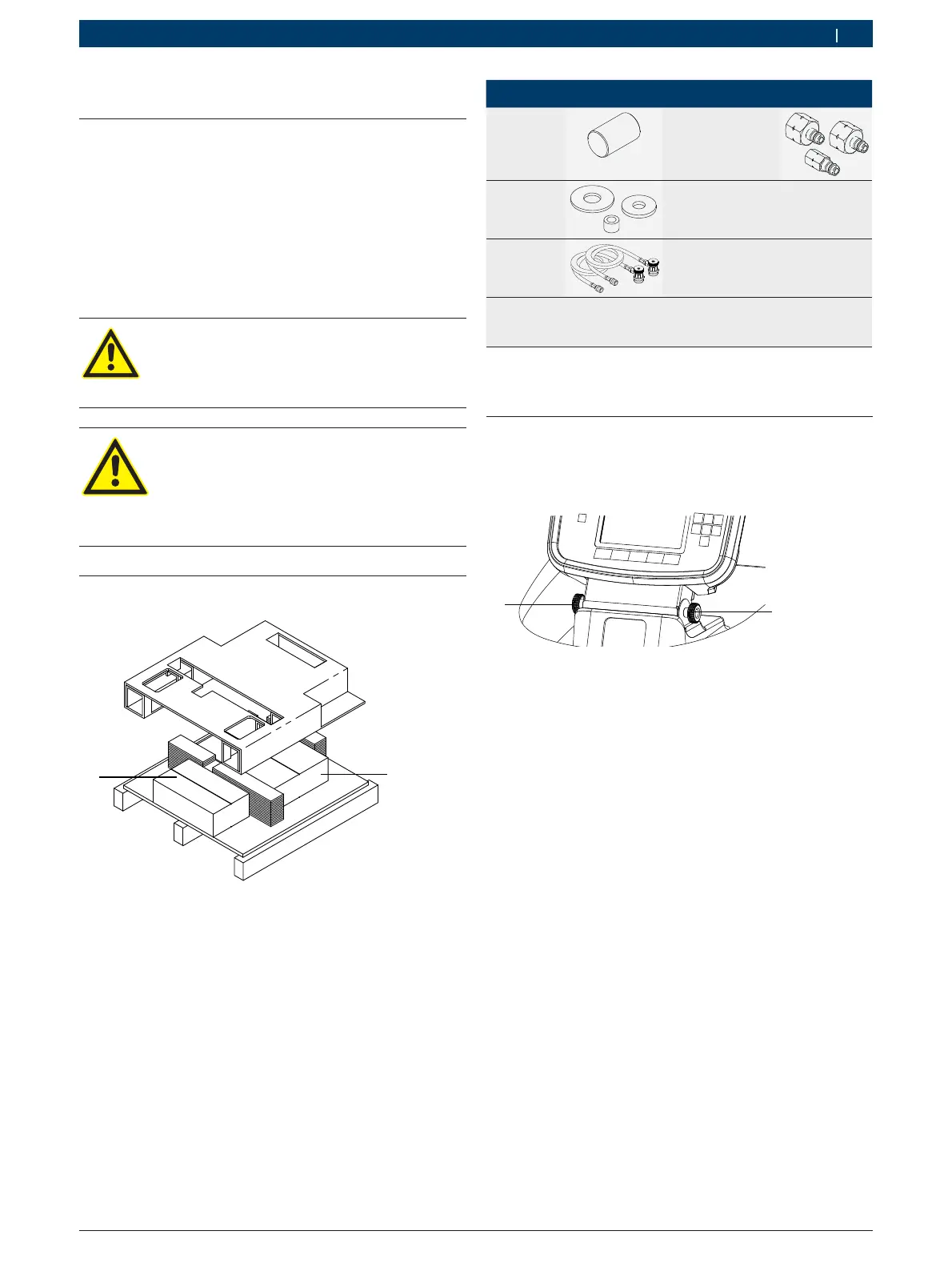

5. Initial settings
5.1 Removing transportation packaging
1. Remove the bands wrapping the cardboard.
2. Remove the cardboard.
3. Lift one side of the unit to remove the front wheels
out of the base.
4. Cautiously pull the unit from the rear handle making
sure to has a firm grip.
5. Let it get off slowly from the pallet trying to avoid
sudden bumps.
CAUTION: Carry out the operations
described with the utmost care and on a
flat horizontal surface to reduce the risk of
overturning the unit.
WARNING: to prevent injuries while
working with the refrigerant, read and
follow the instructions and warnings in this
manual, and wear protective clothing, such
as safety glasses and gloves.
5.2 Unpacking the accessories kit
2
1
Fig. 10: Unpacking the accessories kit
1 Accessories kit
2 Accessories kit
Remove the cardboard containing the accessory kit
from the station packing and remove the various
packagings.
Accessories kit
Calibration
weight
533 g
External cylinder
adapters for tank
filling (3)
Gaskets (3) Plastic envelope containing the
user manual and relevant Material
Safety Data Sheets (MSDSs).
Service
hoses (2)
Four bottles: oil drain bottle, PAG
oil bottle, POE oil bottle and UV
dye bottle
Power cable, dust cover
and safety kit (glasses and
gloves)
WiFi dongle
1)
and N2H2 kit
1)
1)
May be included in scope of delivery, depending on the version
ordered
5.3 Control panel and display adjustment
!
Never use the control panel (HMI) to move the
station.
1
1
Fig. 11: Control Panel and Display (HMI)
1 Adjustment knobs
1. Loosen both knobs while holding the control panel
(HMI) with one hand.
2. Use a knob to adjust the hardness in handling the
control panel.
3. Use the other knob as lock/unlock to adjust the tilt
of the control panel. Tighten it firmly after reaching
the desired inclination.
