SP00D00490 2020-01-08| Robert Bosch GmbH
Introduction | ACS 763/863 | 51 en
1
4
5
6
8
9
7
3
2

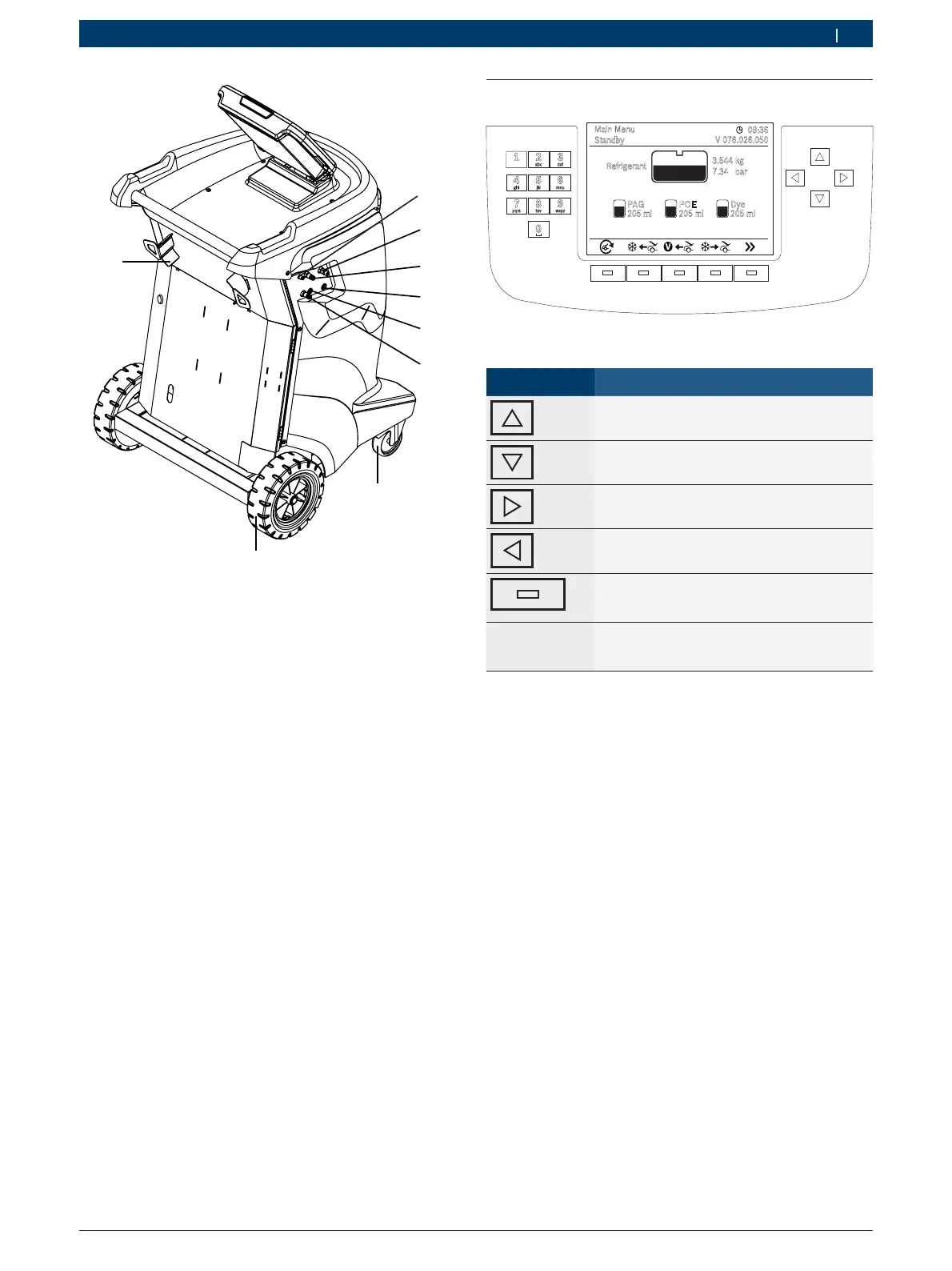

Fig. 2: ACS 763/863
1 N2H2 or N2 max input port 14 bar (1.4 MPa)
2 Flush connection (high pressure*)
3 Flush connection (low pressure*)
4 Connection for service hose (high pressure*)
5 Connection for service hose (low pressure*)
6 Contaminated refrigerant recovery outlet (only for ACS 863)
7 Front wheels with parking brake
8 Rear wheels
9 Hose support
(*) max 25 bar (2.5 MPa)
3.4 Control panel functions
Refrigerant
Main Menu
09:36
V 076.026.050
Standby
3.544 kg
7.34 bar
205 ml
POE
205 ml
PAG
205 ml
Dye
Fig. 3: Control panel keypad
Symbol Description
UP ARROW to select the previous option of
a menu.
DOWN ARROW to select the next option of
a menu.
RIGHT ARROW to scroll to the next screen.
LEFT ARROW to scroll to the previous
screen.
SELECTION KEYS (function keys) to select
the functions shown on the display (lower
icons).
0...9
A...Z
The input keys can be used to enter letters,
numbers, and special characters in the input
fields.
