SP00D00490 2020-01-08| Robert Bosch GmbH
50 | ACS 763/863 | Introductionen
3. Introduction
3.1 Application
The station is suitable for vehicles with traditional
combustion engine (PAG oil), hybrid and electric (POE
oil).The station has all the functions necessary for the
maintenance of vehicle air conditioning systems.
! The station can operate with PAG oil or POE oil. The
mixture of the two oils causes damage to the vehicle
air conditioning system. The station is delivered with
a new oil bottle for PAG compressor oil and one for
POE oil compressor. Fill both new oil bottles with
the correct compressor oil and always be careful to
connect the correct new oil bottle.
! The station can only be used with R1234yf. The
station must not be used for the maintenance
of vehicles with air conditioning systems that
use refrigerants other than R1234yf to prevent
damage. Before performing maintenance of the air
conditioning system, check the type of refrigerant
used in the air conditioning system of the vehicle.
3.2 Supply
Replacement component Code
ACS 763/863 –
Safety kit (glasses and gloves) SP00100744
Original instructions SP00D00490
High pressure service hose
1)
–
Low pressure service hose
1)
–
1 x New oil bottle PAG 250ml SP00101414
1 x New oil bottle POE 250ml SP00101412
1 x UV dye bottle 250ml SP00101418
Oil drain bottle 250ml SP00101727
Tank adapter (1234 <22 HW) SP00100699
Tank adapter gaskets (1234 <22 HW) SP00100366
Tank adapter (1234 DNT) SP00100698
Tank adapter gaskets (1234 DNT) SP01100020
Tank adapter (1234> 22 HW) SP00100703
Tank adapter gaskets (1234 >22 HW) SP00100367
Calibration weight SP01100095
Power cable SP00100438
UK power cable SP00100444
Dust cover SP00101641
WiFi dongle
2)
SP00101379
N2H2 kit
2)
SP00101740
1)
Preassembled
2)
May be included in scope of delivery, depending on the version
ordered
3.3 Description of the equipment
1 2 3
6
7
5
4
8
13
14
12
11
10
9
a
b
c
d
e
f
j
k
l
m
n
o
t
u
v
w
x
y
z
g
h
i
p
q
r
s

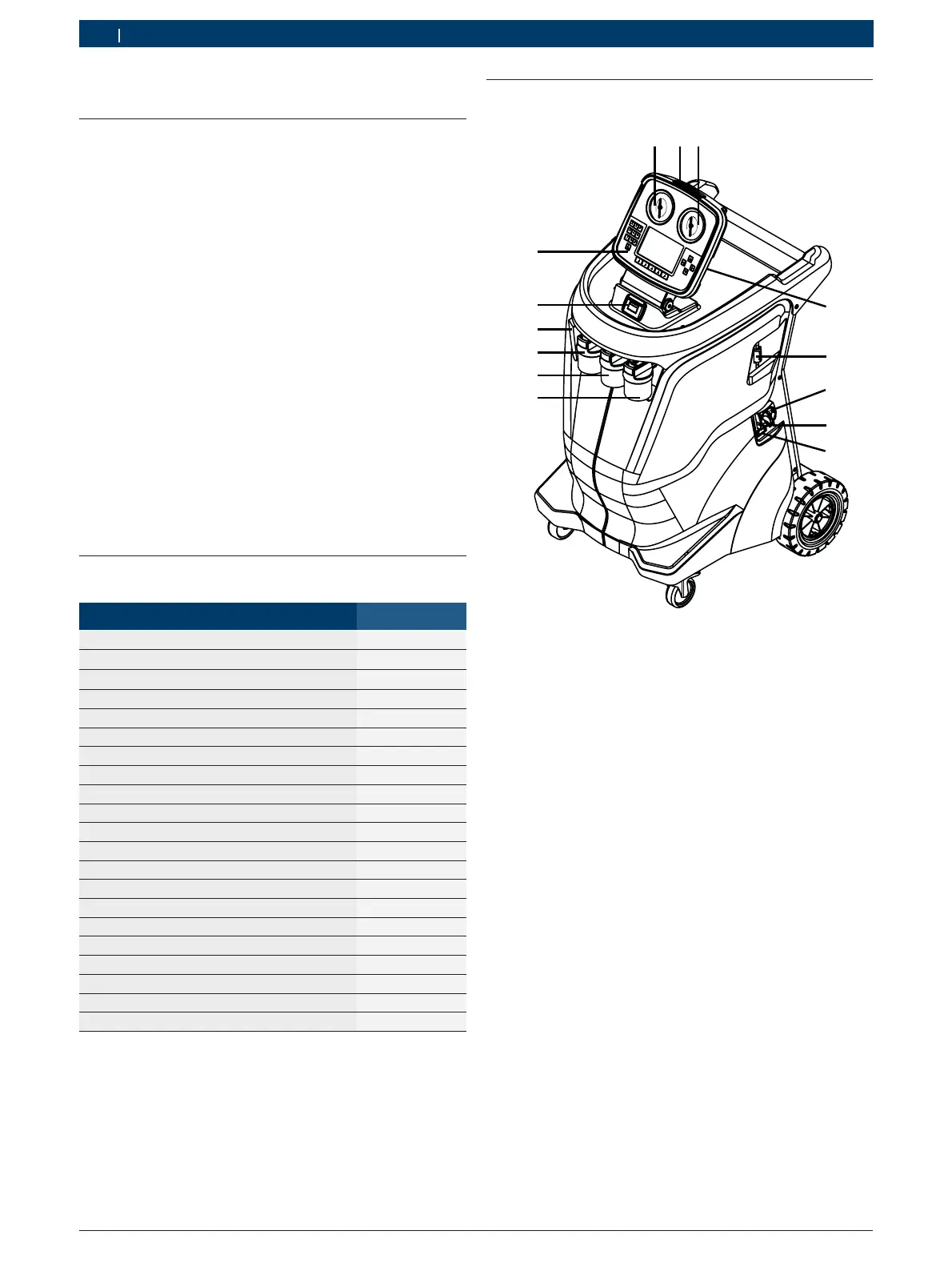

Fig. 1: ACS 763/863
1 Low pressure (LP) gauge
2 Visual alarm
3 High pressure (HP) gauge
4 2 x USB port 2.0
5 Refrigerant identifier filter (only for ACS 863)
6 Main switch
7 Resettable fuse
8 Power socket
9 UV dye bottle
10 New oil bottle (POE)
11 New oil bottle (PAG)
12 Exhausted oil bottle
13 Printer
14 Control panel and display (HMI)
