en | B92x keypad operation overview Control Panels
2019.06 | 07 | F.01U.307.371 Bosch Security Systems B.V.
21 B92x keypad operation overview
GAS
A1 Lobby
Ready to turn on
8
7 6
9
5
10
1
2
3
4

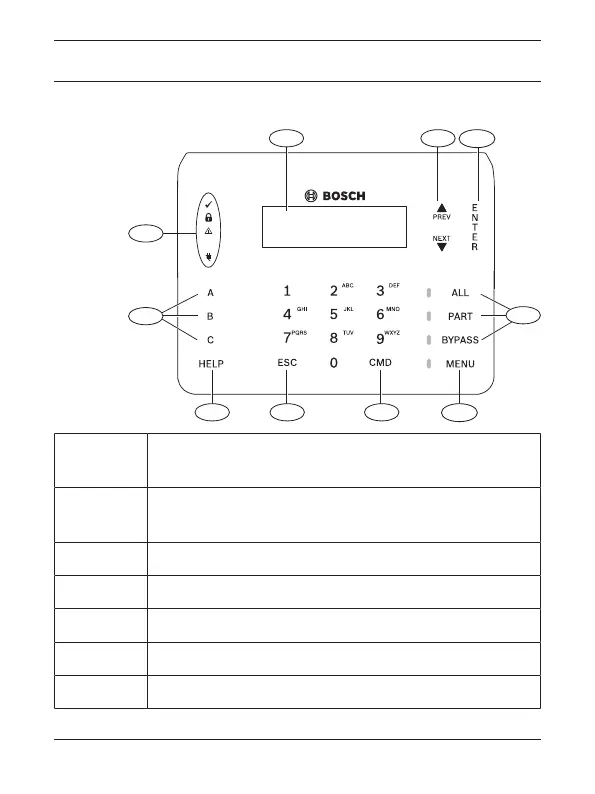

Callout
Number
Description
1 Alphanumeric display (refer to Display overview, page
120)
2 PREV and NEXT keys
3 ENTER key
4 ALL, PART, and BYPASS keys
5 MENU key
6 CMD key (Command)

Bosch B8512G Specifications

General

Model	B8512G
Category	Control Panel
Power Supply	12 VDC
Series	G Series
Areas	8
PGM Outputs on Board	8
On-board Ethernet	Yes
Wireless Support	Yes
Manufacturer	Bosch
Input Voltage	16.5 VAC
Users	500
Communication Formats	IP, GSM, PSTN
Compatibility	Compatible with Bosch detectors, keypads, and communication modules
