en | B93x keypad operation overview Control Panels
2019.06 | 07 | F.01U.307.371 Bosch Security Systems B.V.
12 B93x keypad operation overview
1
4
7
ESC
GHI
PQRS
0
CMD
9
WXYZ
6
MNO
3
DEF
2
5
JKL
8
TUV
ABC
NEXT
HELPPREV
Area 1 Off
A1 Lobby
Ready to turn on
<Shortcuts
Menu>
GAS
3
7
6 5
4
3
1
2
4
1
4
7
ESC
GHI
PQRS
0
CMD
9
WXYZ
6
MNO
3
DEF
2
5
JKL
8
TUV
ABC
Callout
Number
Description

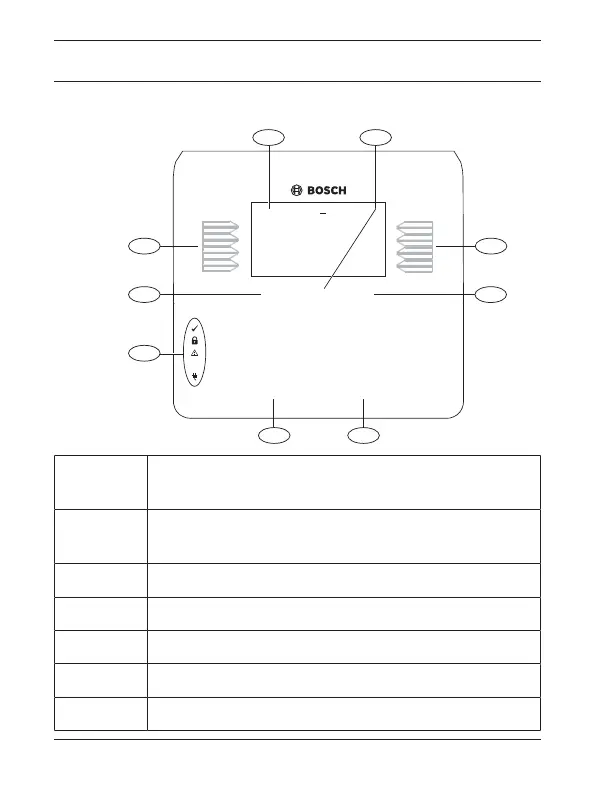

1 Alphanumeric display (refer to Display overview, page
42)
2 HELP key
3 Softkeys
4 PREV and NEXT keys
5 CMD key (Command)
6 ESC key (Escape)

Bosch B8512G Specifications

General

Model	B8512G
Category	Control Panel
Power Supply	12 VDC
Series	G Series
Areas	8
PGM Outputs on Board	8
On-board Ethernet	Yes
Wireless Support	Yes
Manufacturer	Bosch
Input Voltage	16.5 VAC
Users	500
Communication Formats	IP, GSM, PSTN
Compatibility	Compatible with Bosch detectors, keypads, and communication modules
