English – 9
Assembly
Inserting and Removing the On-Board
Computer

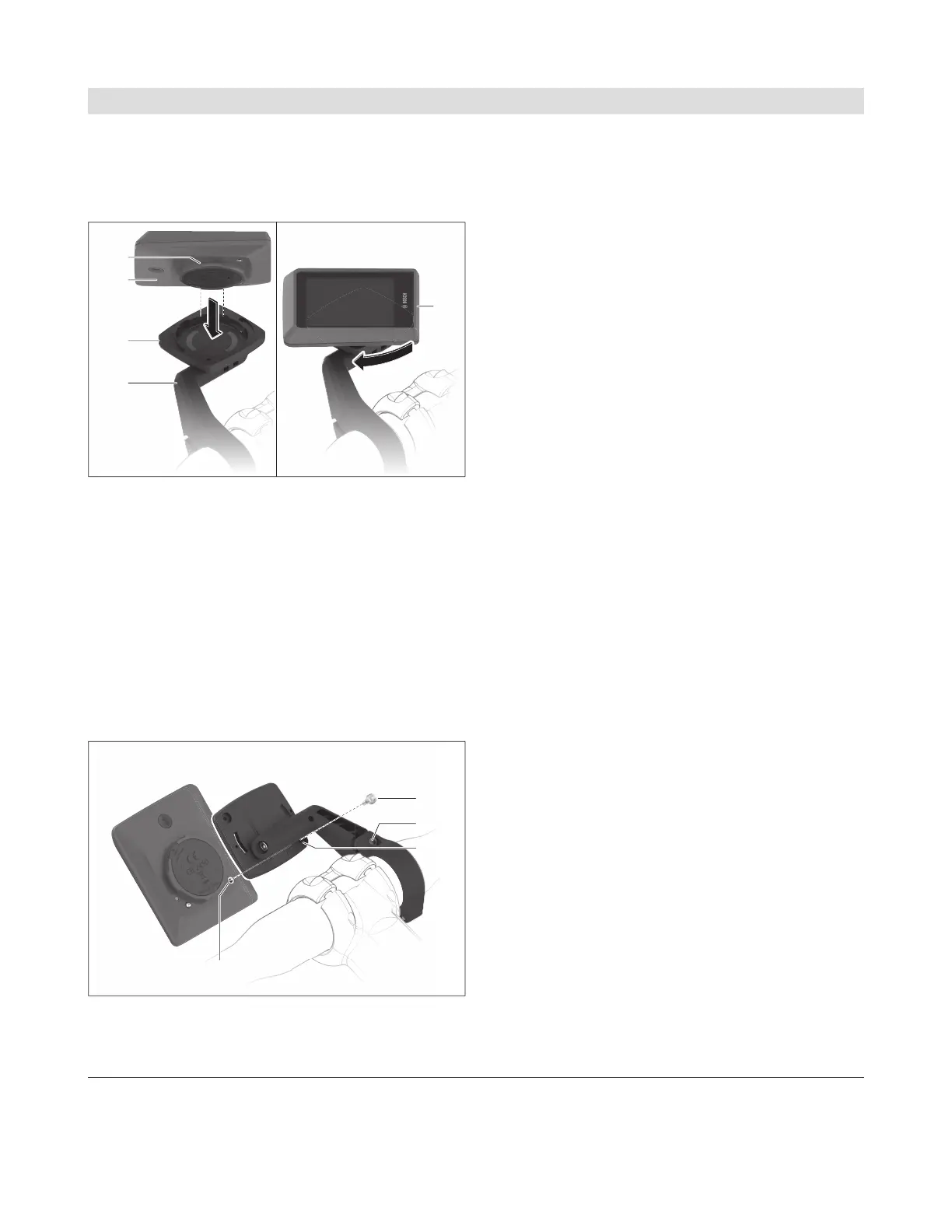

To insert the (9)on-board computer, insert the lugs
of the battery compartment(10) into the cradle(8)
of the holder, and gently press down on the on-board
computer. To lock, turn the on-board computer clock-
wise until it engages.
To remove the on-board computer(9), turn it coun-
terclockwise and remove the on-board computer
from the cradle(8).
u When you park up the eBike, remove the on-
board computer.
Inserting the Locking Screw
The on-board computer can be secured in place to
prevent it from being removed from the holder. The
on-board computer must be in the holder for this.
Undo the fastening screw(11) of the clamp with a
hex key until the holder(7) can be moved. Turn the
holder(7) until the bottom side of the on-board com-
puter is accessible. Insert the locking screw(6) and
bolt it with the on-board computer. Align the
holder(7) correctly with the on-board computer and
tighten the fastening screw(11) again with a hex key.
Note: The locking screw is not designed to prevent
theft.
Bosch eBike Systems 0 275 U07 3BI | (03.03.2023)
