English – 20
nector(5) facing upwards until the battery clicks
into place. Ensure that the battery is aligned cor-
rectly.
❷
Close the locking mechanism(9), insert the
key(1) into the battery lock(2) and lock the bat-
tery. Make sure that the safety hook(3) is cor-
rectly hooked in at the opening of the guide
rail(11). Otherwise, there is a risk of the battery
falling out while riding.
Always remove the key(1) from the battery lock(2)
after locking it. This prevents both the key from falling
out and the eBike battery from being removed by
unauthorized third parties when the eBike is not in
use.
CompactTube Battery (built-in)
The eBike batteries built-in to the bicycle frame must
only be removed in the event of a fault. Contact an au-
thorized bicycle dealer if this happens.

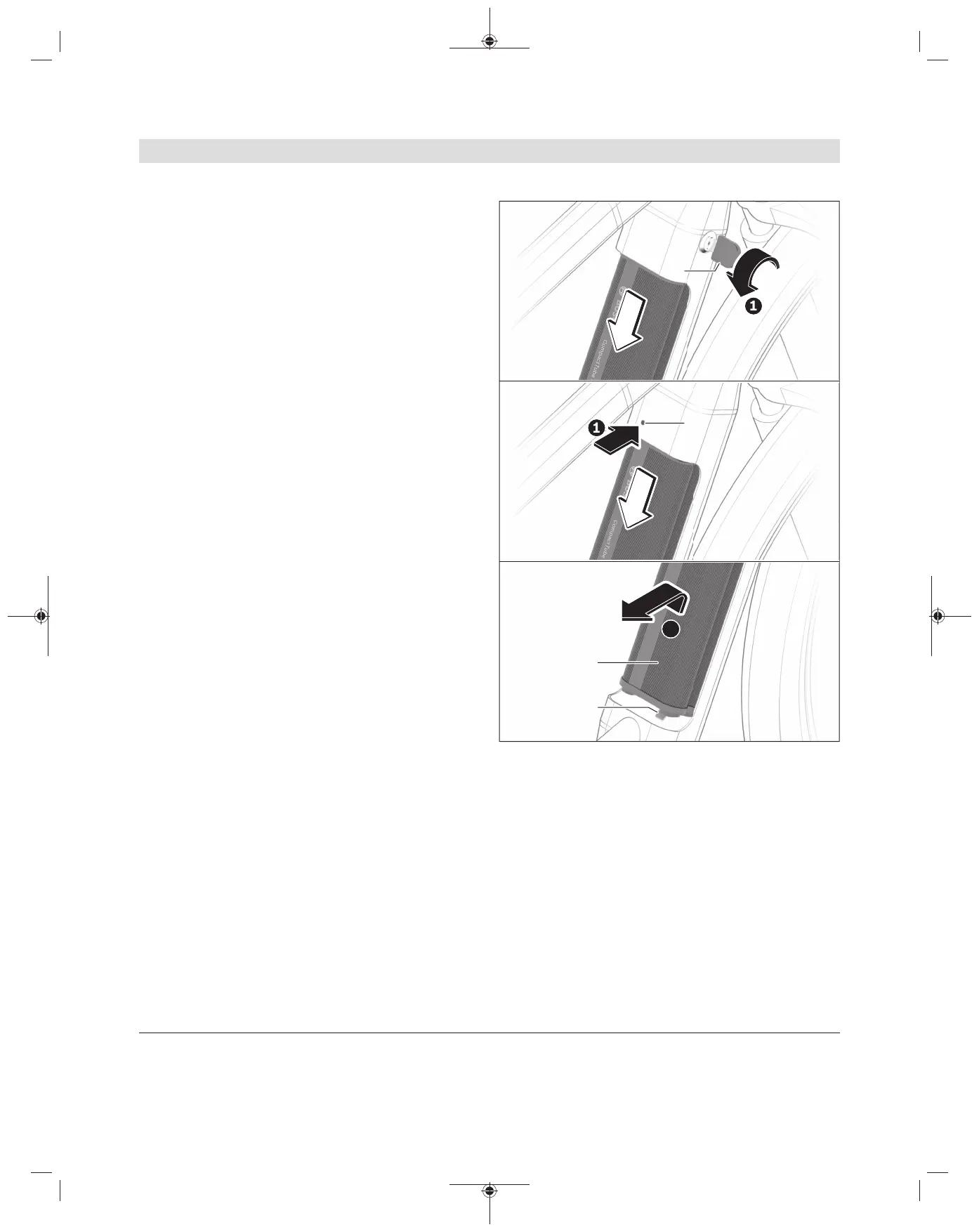

Removing the CompactTube Battery (pivot)
❶
To remove the CompactTube battery(20), open
the battery lock(2) with the key(1) or press on
the unlocking element(24) with a suitable, non-
pointed tool (e.g. a hex key). The battery will be
unlocked and fall into the safety restraint(22).
Note: When removing the eBike battery, hold it firmly
in your hand.
❷ Hold the battery firmly, gently slide the battery
towards the battery lock(2) and remove it from
the safety restraint(22).
Note: The unlocking element may vary from the im-
age and may be a manufacturer-specific solution.
0 275 U07 3PX | (20.03.2023) Bosch eBike Systems
