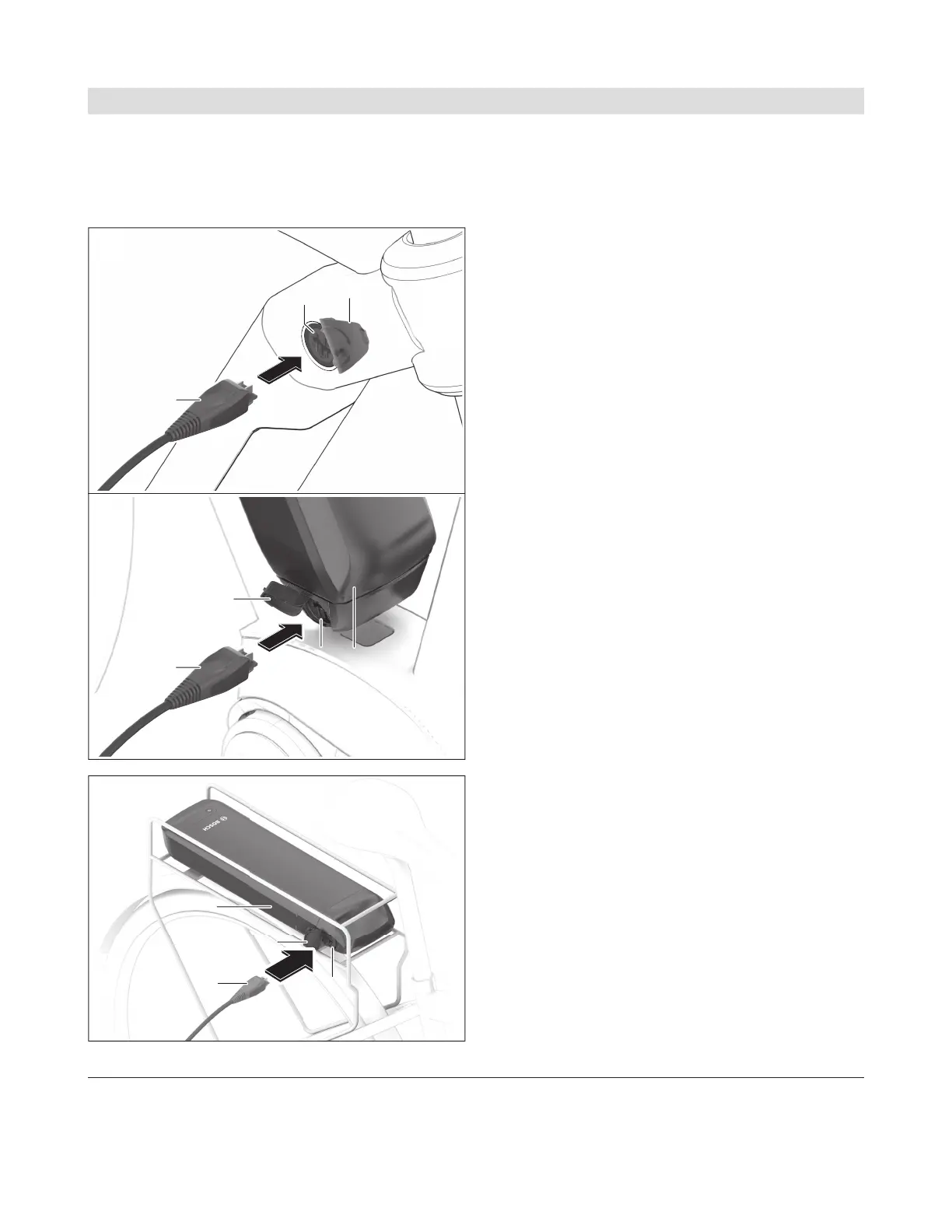

Plug the charging connector(5) of the charger into
the charging socket(6) on the eBike battery.
Charging the eBike Battery when Inserted in the
eBike
(5)
Charging connector
(6)
Socket for charging connector
(14)
Charging socket cover
(12)
PowerPack
(13)
Rack-mounted battery
Switch the eBike battery off. Clean the cover of the
charging socket (14). Avoid getting dirt, e.g. sand or
soil, in the charging socket and contacts in particular.
Lift the cover of the charging socket (14) and plug the
charging connector (5) into the charging socket (6).
u There is a risk of fire due to the charger heating
up during charging. Ensure the eBike battery on
the eBike is completely dry and placed on a fire-
proof surface before charging. If this is not possi-
ble, remove the eBike battery from the holder and
charge it in a more suitable location. When doing
so, read and observe the operating instructions of
the eBike battery.
Charging process
The charging process begins as soon as the charger is
connected to the eBike battery or charging socket on
the eBike and to the mains.
Note: The charging process is only possible when the
temperature of the eBike battery is within the permit-
ted charging temperature range.
Note: The drive unit is deactivated during the charg-
ing process.
The eBike battery can be charged with and without
the on-board computer. When charging without the
on-board computer, the charging procedure can be
observed on the battery charge indicator(7) and,
where applicable, on the operating unit.
When the on-board computer is connected, a charg-
ing notification appears on the display.
The state of charge is displayed by the battery charge
indicator(7) on the eBike battery, the operating unit
and, where applicable, the on-board computer.
The LEDs on the eBike battery charge indicator(7)
flash during the charging process. Each solid illumi-
nated LED represents approximately 20% of the
