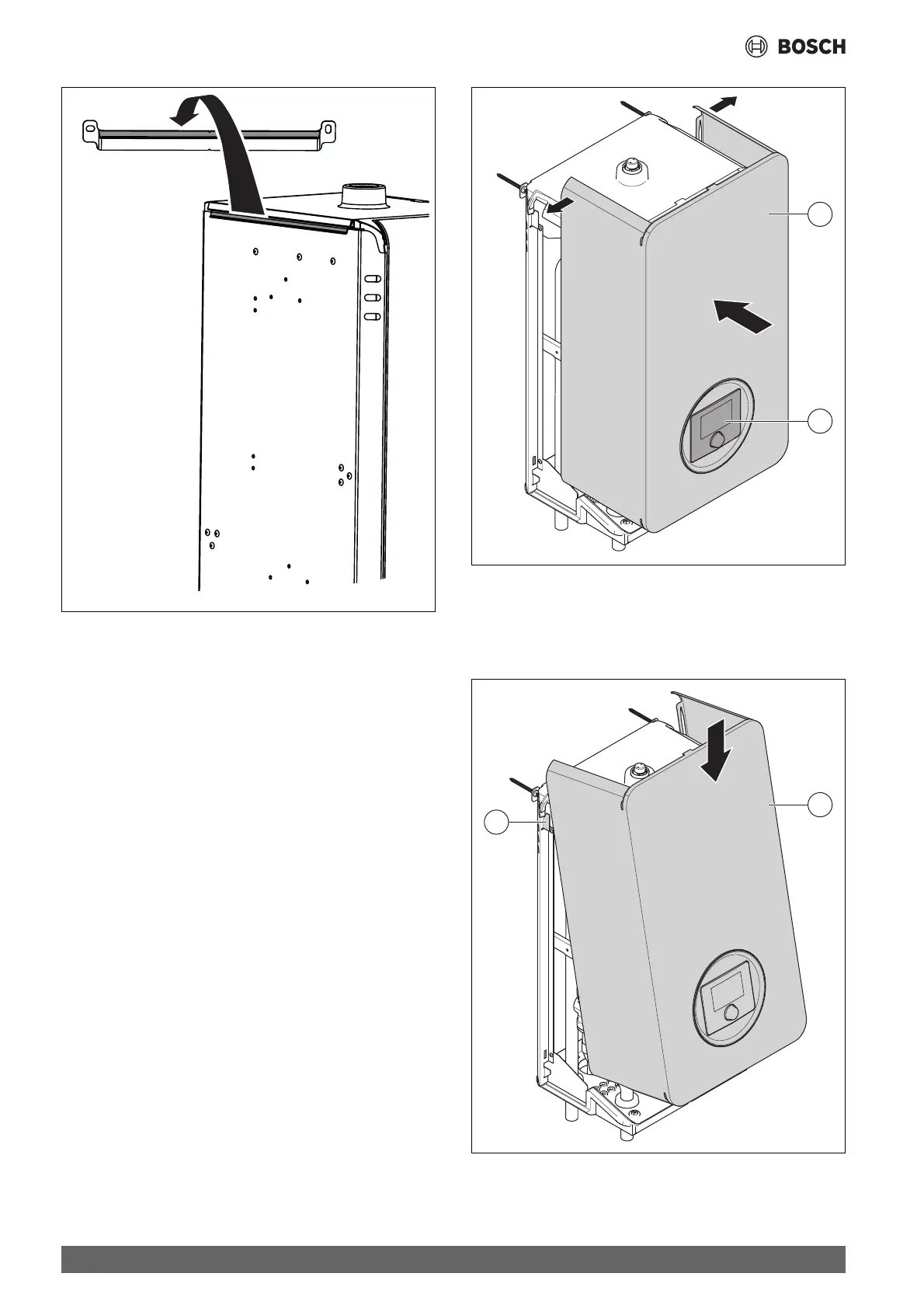

Fig. 16 Hanging the indoor unit
▶ Insulate the pipework (Chapter 4.8).
5.3.3 Fitting the cover
To fit the top cover [1]:
▶ Connect the EMS cable to the control unit [2].
▶ Pull the sides of the cover [1] slightly apart at the back (paying
attention to the top cover) and push the cover backwards.
Fig. 17 Fitting the cover
[1] Cover of the indoor unit
[2] Control unit
To attach the cover [2] to the top fixing [1]:
▶ Push the cover [2] slightly down.
Fig. 18 Attach the cover to the top fixing
[1] Fixing on the top side
[2] Cover of the indoor unit
00100
0010031293-002
1
2
0010031297-002
1
2
