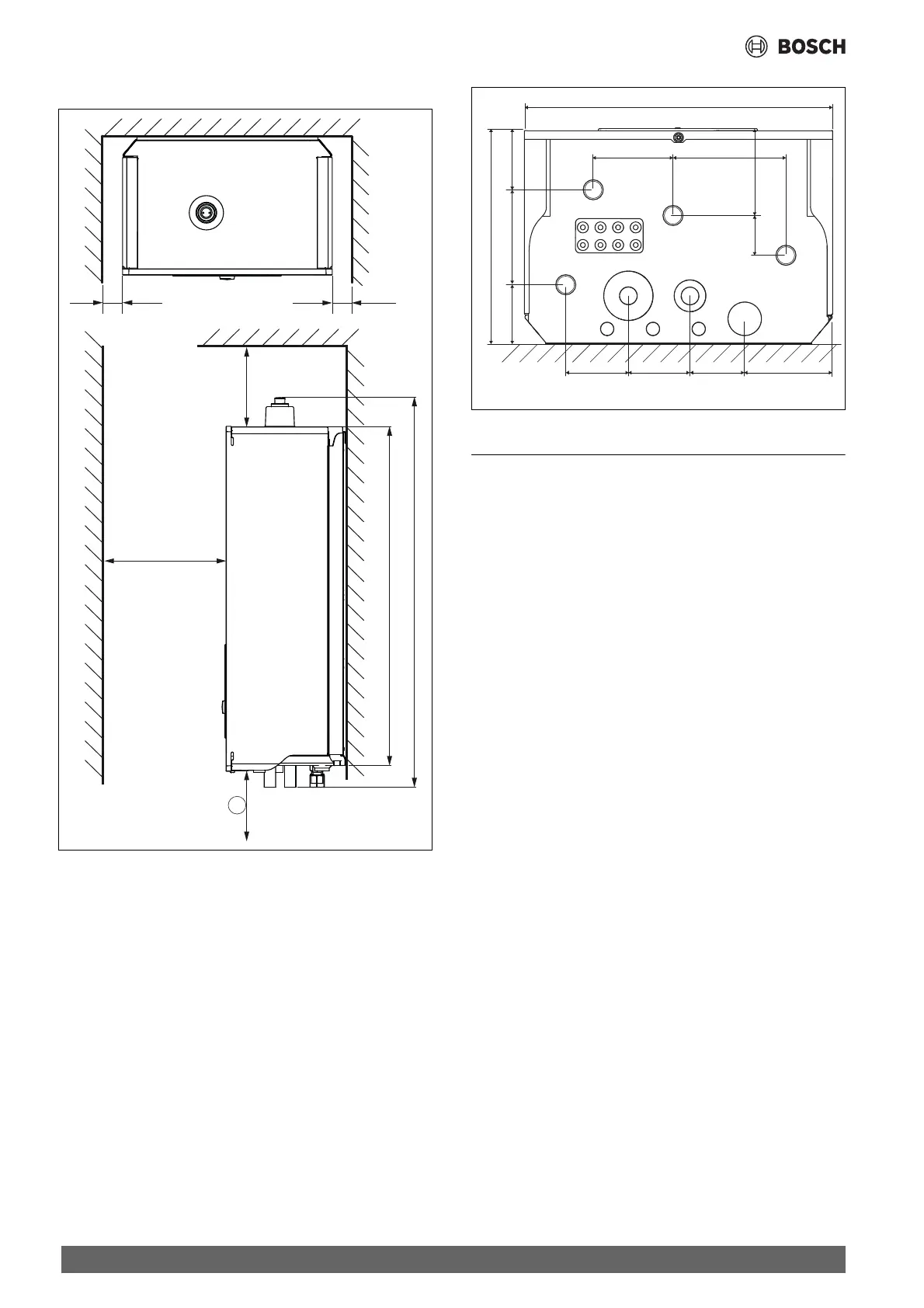

2.6 Dimensions and minimum clearances
Mount the indoor unit high enough so that the control unit is easy to use.
In addition, take into account pipes and connections under the indoor
unit.
Fi
g. 5 Clearances between connections (mm)
3Regulations
Follow the directives and regulations given below:
• Local provisions and regulations of the electricity supplier and
corresponding special rules
• National building regulations
• F-Gas regulation
• EN 50160 (Voltage characteristics of electricity supplied by public
electricity networks)
• EN 12828 (Heating systems in buildings - Design and installation of
water-based heating systems)
• EN 1717 (Protection of potable water against pollution in potable
water installations)
• EN 378 (Refrigerating systems and heat pumps - Safety and
environmental requirements)
• Local installation regulations for low-voltage electrical installations,
e.g. DIN VDE 0100 (for Germany) or IEC 60364
The document 6720807972 contains further information about the
applicable regulations. You can use the document search on our website
to display this. You will find the address of the website on the back of
these instructions.
0010029918-003
350
90 129
100627066
243
62 114
9844
67
Fig. 4 Minimum distance (mm)
[A] It is recommended to ensure a minimum volume of 1 m³ underneath
the indoor unit. If this is not possible, ensure that the room is not
air-tight by allowing an air vent passage at a height lower than the
bottom of the indoor unit.
0010028013-005
≥100 ≥100
≥550
A
≥800
655
757
