Disassembly Procedures
1 Battery Removal
Note: Place the S1 Pro on a soft cloth to prevent
any scratches or damage to the enclosure.
1.1 Caution: To prevent damage and injury,
Insure there is no power applied to the unit.
Remove AC mains and the battery prior to
disassembly of the S1 Pro.
1.2 Unscrew the two screws that secure the
battery cover located at the bottom of the S1 Pro
indicated by arrows in gure 4.
1.3 Lift up on the two plastic exible pull tabs
indicated by arrows in gure 5 and pull out the
battery.
Note: When reinstalling the battery it can only be
installed in one position.
1.4 Figure 6 will show the battery connector and
compartment.

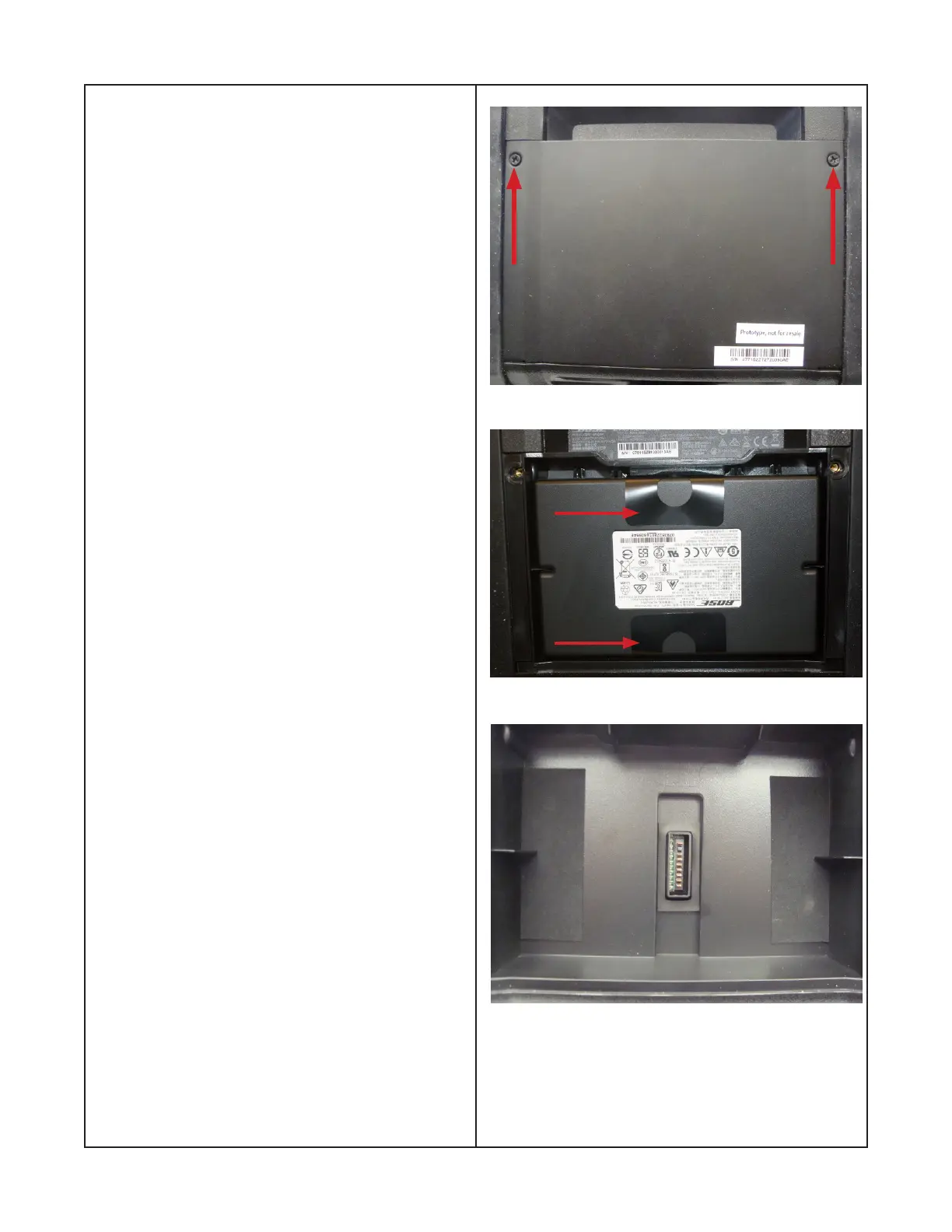

Figure 4
Figure 5
Figure 6
To Next Page
