25
Disassembly Procedures
2. Grille Removal
Important Note: To prevent scratching the
exterior surface, place a soft cloth onto a clean
work surface.

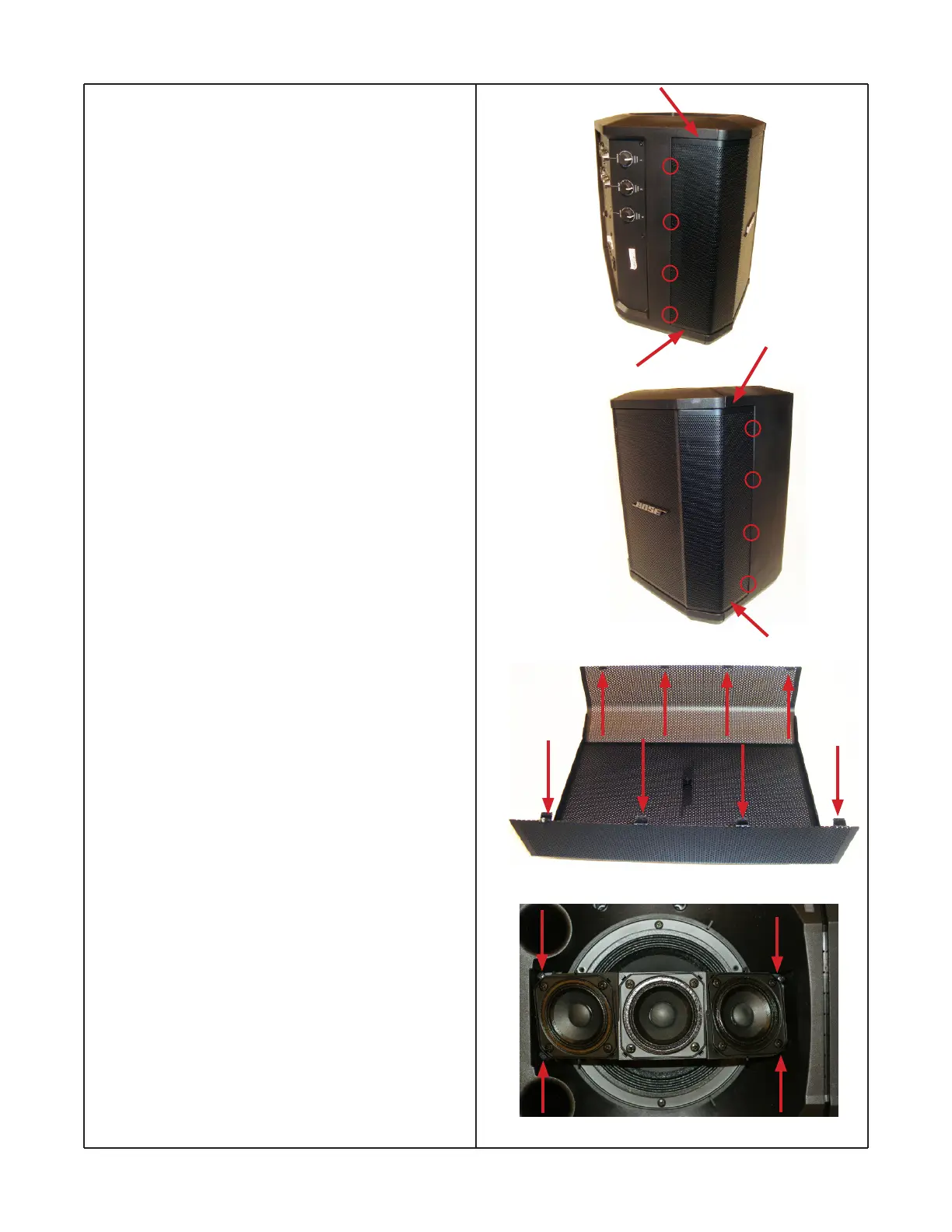

2.1 Remove the grille by prying outward with a
non-damaging tool. Arrows indicate the areas in
gures 7 and 8 where the non abrasive tool may
be inserted. Each side of the grille has 4 tabs
indicated by red circles that must be pulled away
without damaging the cabinet assembly.
2.2 2.2 Figure 9 shows each side of the grille with Figure 9 shows each side of the grille with
four tabs per side.four tabs per side.
Note: Note: When removing the grille insure tabs do When removing the grille insure tabs do
not scrape along the enclosure. not scrape along the enclosure.
3. Twiddler
TM
Enclosure Removal
3.1 Perform procedure 2.
3.2 Remove the four screws indicated by arrows
shown in gure 10.
Figure 7
Figure 8
Figure 9
Figure 10
