26

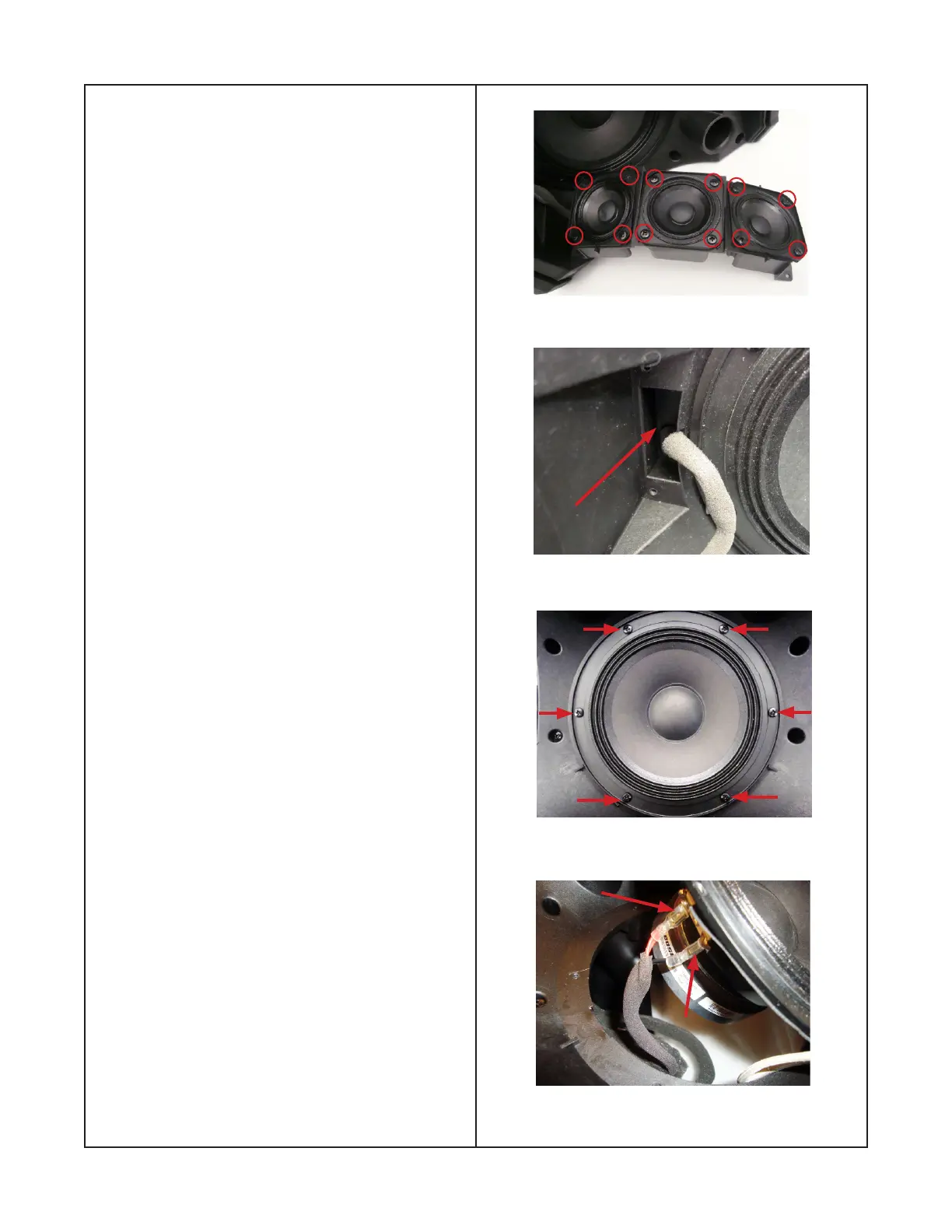

Figure 11
Figure 12
Figure 13
Figure 14
Disassembly Procedures
3.3 Lift out the Twiddler
TM
enclosure as indicated
in Figure 11.
3.4 The circles shown in gure 11 indicate the
mounting screws used to secure the Twiddlers.
All Twiddler’s are daisy chained.
Note: The Twiddler enclosure harness is placed
in the opening shown by the arrow during re-
assembly as shown in gure 12.
4. Woofer Removal
4.1 Perform procedures 2 and 3.
4.2 Remove the six screws indicated by arrows
in Figure 13.
4.3 Remove the Faston
TM
connectors as shown
in gure 14.
Note: The speaker lugs are locked and must be
depressed downward to release.
