Brother BE-438D Service Manual

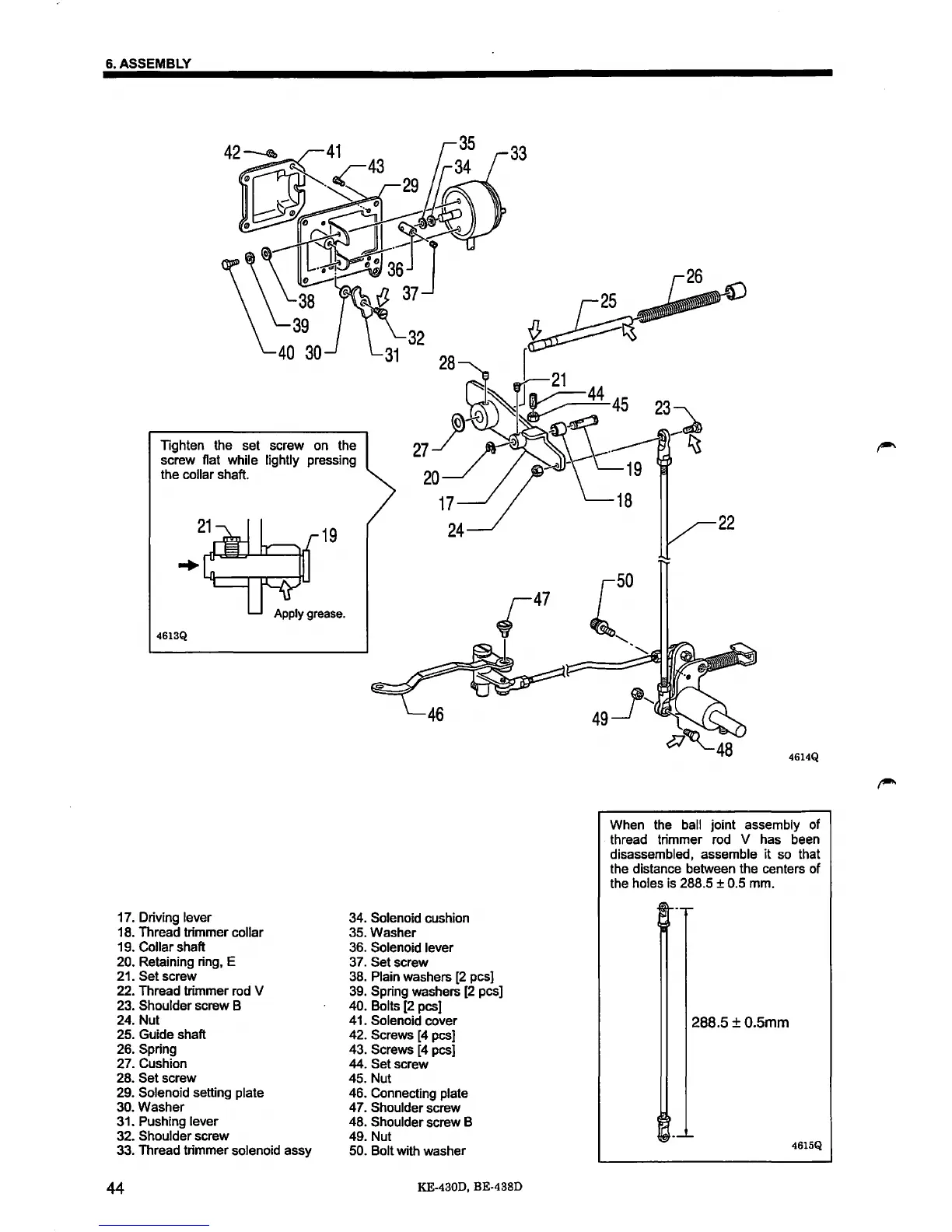

&.ASSEMBLY
Tighten the set screw on the
screw flat
while lightly pressing
the
collar shaft.
4613Q
17. Driving lever
18. Thread trimmer
collar
19. Collar shaft
20. Retaining ring, E
21. Set screw
22. Thread trimmer rod V
23.
Shoulder screw B
24. Nut
25. Guide shaft
26.Spring
27. Cushion
28.
Set screw
29.
Solenoid setting plate
30. Washer
31. Pushing lever
32.
Shoulder screw
33. Thread trimmer solenoid assy
34. Solenoid cushion
35.Washer
36. Solenoid lever
37.
Set screw
38.
Plain washers [2 pes]
39. Spring washers
[2 pes]
40. Bolts [2 pes]
41.
Solenoid cover
42. Screws
[4 pes]
43. Screws
[4 pes]
44. Set screw
45. Nut
46. Connecting plate
47. Shoulder screw
48. Shoulder screw B
49. Nut
50. Bolt with washer
33
44
KE-4300, BE-4380
4614Q
When the ball joint assembly of
thread trimmer rod V has been
disassembled, assemble
it so that
the distance between the centers of
the holes is 288.5
± 0.5 mm.
288.5 ± O.Smm
4615Q
From the library of: Superior Sewing Machine & Supply LLC
