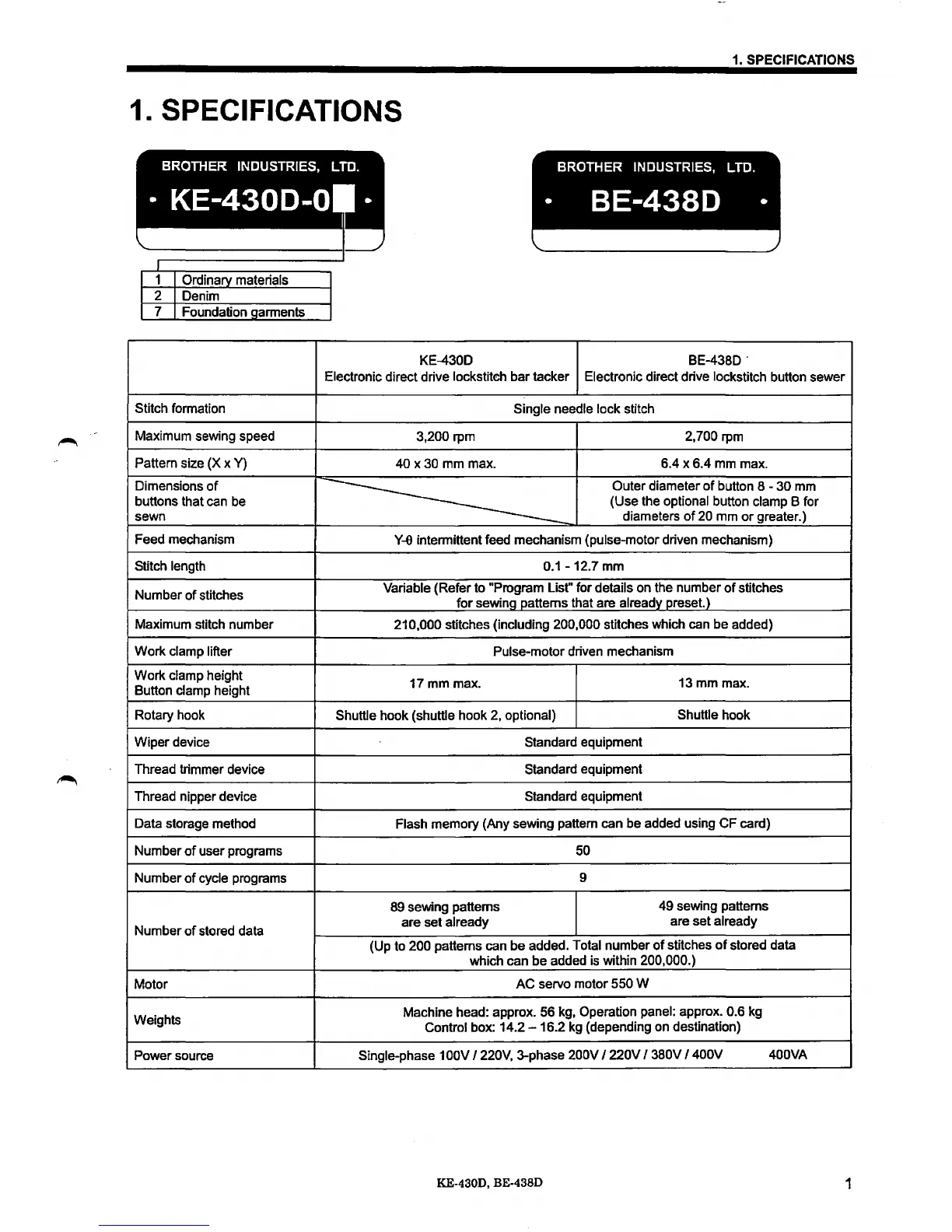

1. SPECIFICATIONS
1. SPECIFICATIONS
KE-4300
BE-438D ·
Electronic direct drive lockstiteh bar tacker Electronic direct drive lockstitch button sewer
Stitch formation
Single needle lock stitch
Maximum sewing speed
3,200 rpm 2,700 rpm
Pattern size (X x Y)
40 x 30 mm max.
6.4 x 6.4
mm
max.
Dimensions
of
---------
Outer diameter
of
button 8 - 30 mm
buttons that can be (Use the optional button clamp B for
sewn diameters
of
20 mm
or
greater.)
Feed mechanism
Y-6
intermittent feed mechanism (pulse-motor driven mechanism)
Stitch length
0.1
-12.7
mm
Number
of
stitches
Variable (Refer to "Program List" for details on the number
of
stitches
for
sewing patterns that are already preset.)
Maximum stitch number
210,000 stitches (including 200,000 stitches which can be added)
Work clamp
lifter Pulse-motor driven mechanism
Work clamp height
17 mm max.
13 mm max.
Button clamp height
Rotary hook
Shuttle hook (shuttle hook 2, optional)
Shuttle hook
Wiper device
Standard equipment
Thread trimmer device
Standard equipment
Thread nipper device
Standard equipment
Data storage method Flash memory (Any sewing pattern can be added using
CF card)
Number
of
user programs 50
Number
of
cycle programs
9
89 sewing patterns
49 sewing patterns
Number
of
stored data
are set already
are set already
(Up to
200 patterns can be added. Total number
of
stitches
of
stored data
which can be added
is
within 200,000.)
Motor
AC
servo motor 550 W
Weights
Machine head: approx.
56
kg, Operation panel: approx. 0.6 kg
Control box:
14.2-16.2
kg (depending on destination)
Power source
Single-phase 1
OOV
I 220V, 3-phase 200V I 220V I 380V I 400V
400VA
KE-430D, BE-438D
1
