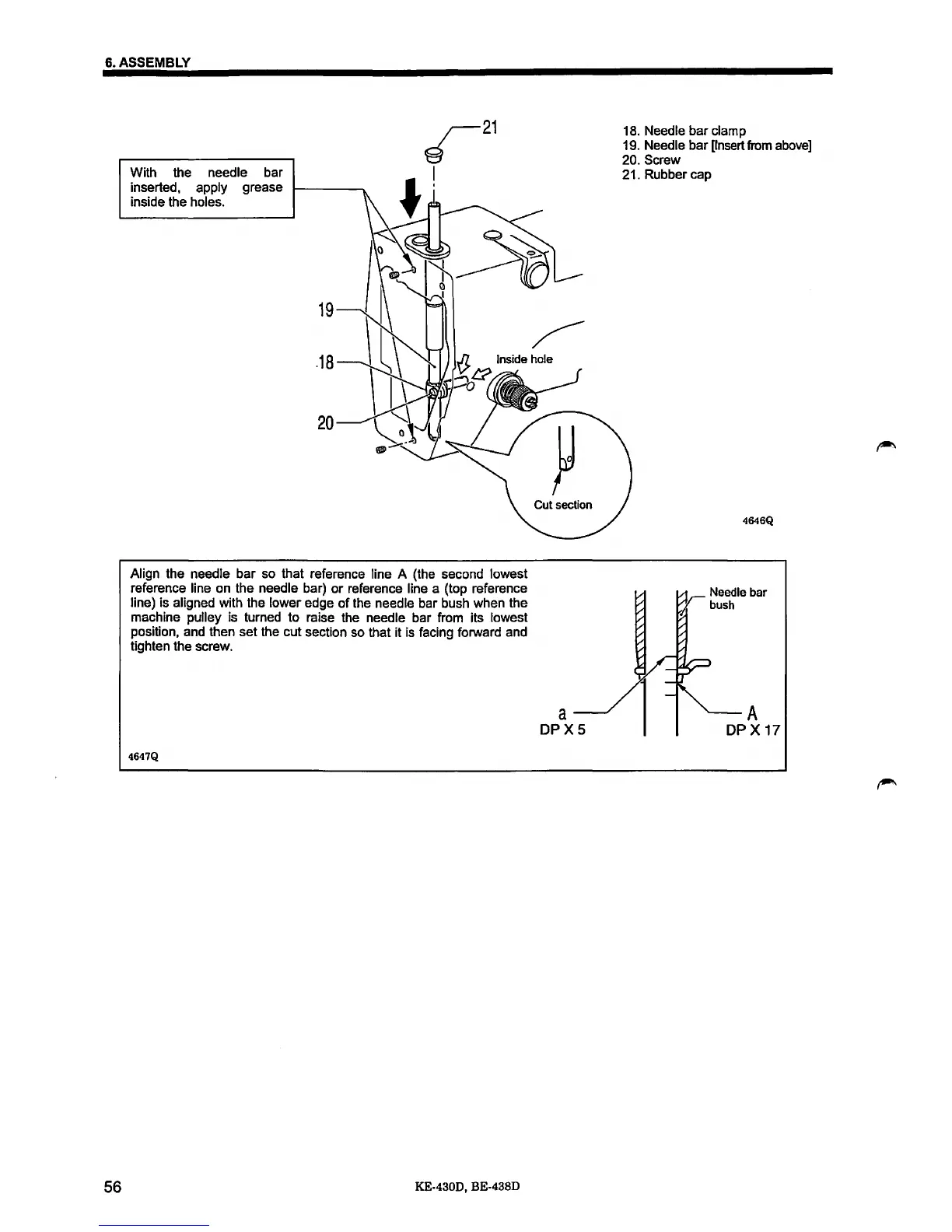

6.ASSEMBLY
56
With the needle bar
inserted, apply grease
inside the
holes.
19
.18
20
Align the needle bar so that reference line A (the second lowest
reference line on the needle bar) or reference line a (top reference
line) is aligned with the lower edge of the needle bar bush when the
machine
pulley is turned to raise the needle bar from its lowest
position, and then set the cut section so that it is facing forward and
tighten the screw.
4647Q
KE-430D, BE-438D
a
DPX5
18. Needle bar clamp
19. Needle bar Pnsert from above]
20. Screw
21. Rubber cap
4646Q
A
DPX 17
