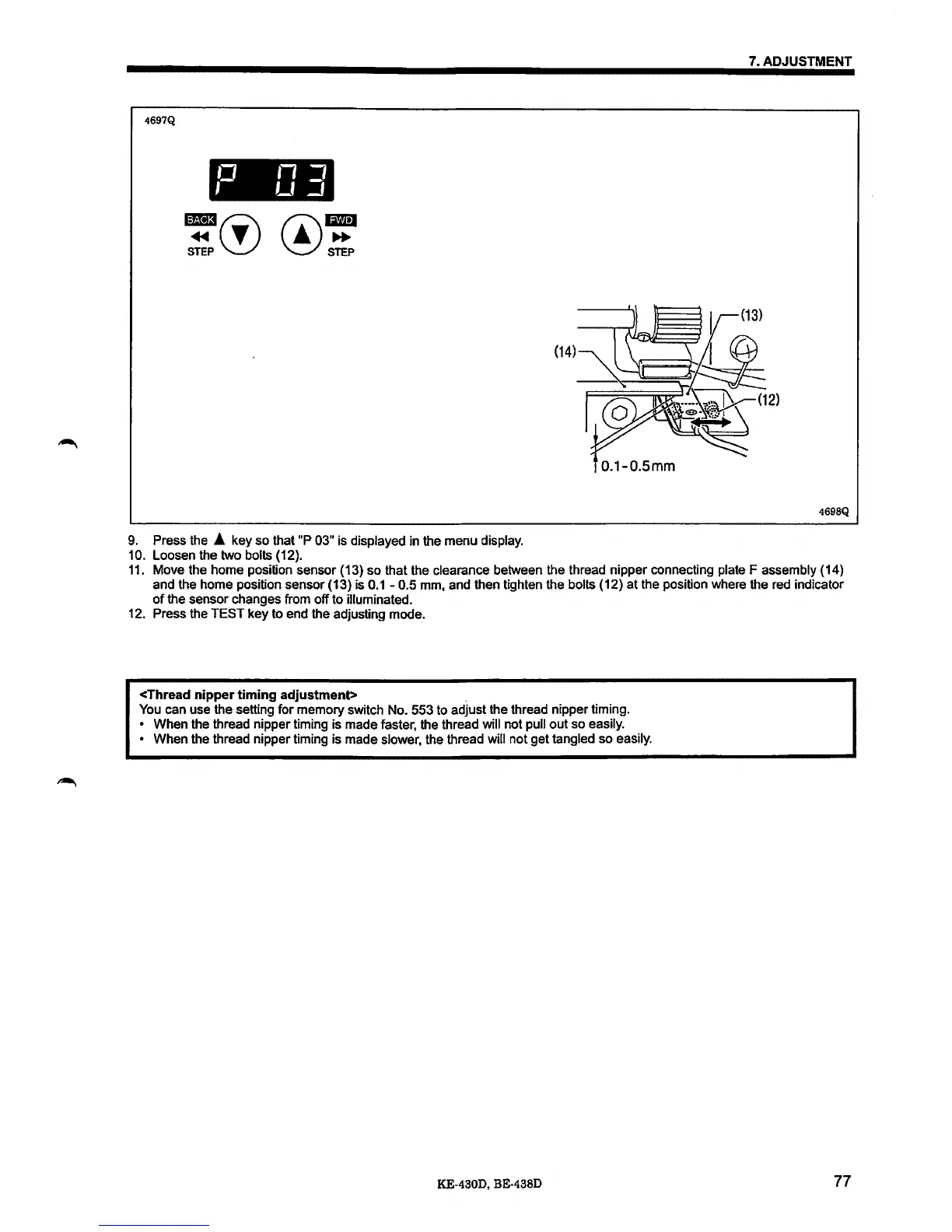

Press the
.&.
key so that "P 03" is displayed in the menu display.
10. Loosen the two bolts (12).
7. ADJUSTMENT
0.1-0.Smm
4698Q
11.
Move the home position sensor (13) so that the clearance between the thread nipper connecting plate F assembly (14)
and the home position sensor (13)
is
0.1-0.5
mm, and then tighten the bolts (12)
at
the position where the red indicator
of
the sensor changes from off to illuminated.
12.
Press the TEST key to end the adjusting mode.
<Thread
nipper
timing
adjustment>
You
can use the setting for memory switch No. 553 to adjust the thread nipper timing.
• When the thread nipper timing is made faster, the thread will not pull out so easily.
•
When the thread nipper timing is made slower, the thread will not get tangled so easily.
KE-430D, BE-438D
77
To Next Page
