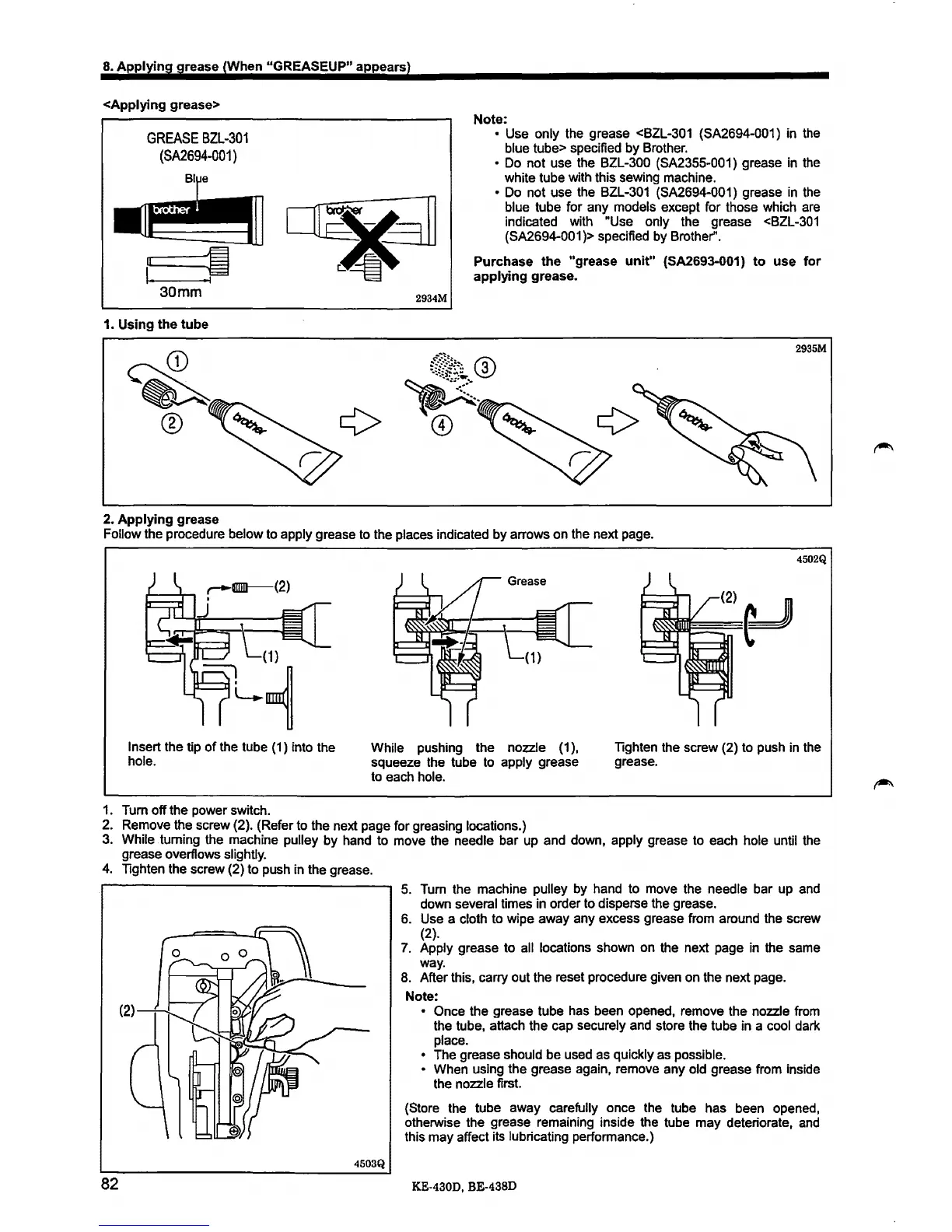

8.
Applying
grease (When "GREASEUP" appears)
<Applying grease>
GREASE
BZL-301
(SA2694-001)
,.u.._
___
~
I I
30mm
1. Using
the
tube
CD
~
®
2.
Applying
grease
2934M
Note:
• Use only the grease <BZL-301 (SA2694-001) in the
blue tube> specified by Brother.
•
Do
not use the BZL-300 (SA2355-001) grease
in
the
white tube with this sewing machine.
•
Do
not use the BZL-301 (SA2694-001) grease
in
the
blue tube for any models except for those which
are
indicated with "Use only the grease <BZL-301
(SA2694-001 )>specified by Brother".
Purchase
the
"grease
unit"
(SA2693-001)
to
use
for
applying
grease.
2935M
Follow the procedure below to apply grease
to
the places indicated by arrows on the next page.
Insert the tip
of
the tube (1) into the
hole.
1.
Tum off the power switch.
While pushing the nozzle
(1
),
squeeze the tube
to
apply grease
to each
hole.
4502Q
lighten
the screw (2) to push
in
the
grease.
2.
Remove the screw (2). (Refer to the next page for greasing locations.)
3. While turning the machine pulley by hand to move the needle bar up and down, apply grease to each hole until
the
grease overflows slightly.
4.
lighten
the screw (2) to push in the grease.
4503Q
82
5.
Tum the machine pulley
by
hand to move the needle bar up
and
down several times
in
order to disperse the grease.
6.
Use a cloth to wipe away any excess grease from around the screw
(2).
7.
Apply grease to all locations shown on the next page
in
the same
way.
8.
After this, carry out the reset procedure given on the next page.
Note:
• Once the grease tube has been opened, remove the nozzle
from
the tube, attach the cap securely
and
store the tube in a cool dark
place.
•
The grease should be used
as
quickly as possible.
• When using the grease again, remove any old grease from inside
the
nozzle first.
(Store the tube away carefully once the tube has been opened,
otherwise the grease remaining inside the tube may deteriorate,
and
this may affect its lubricating performance.)
KE-4300,
BE-4380
To Next Page
