3. INSTALLATION
12KE-430D, BE-438D

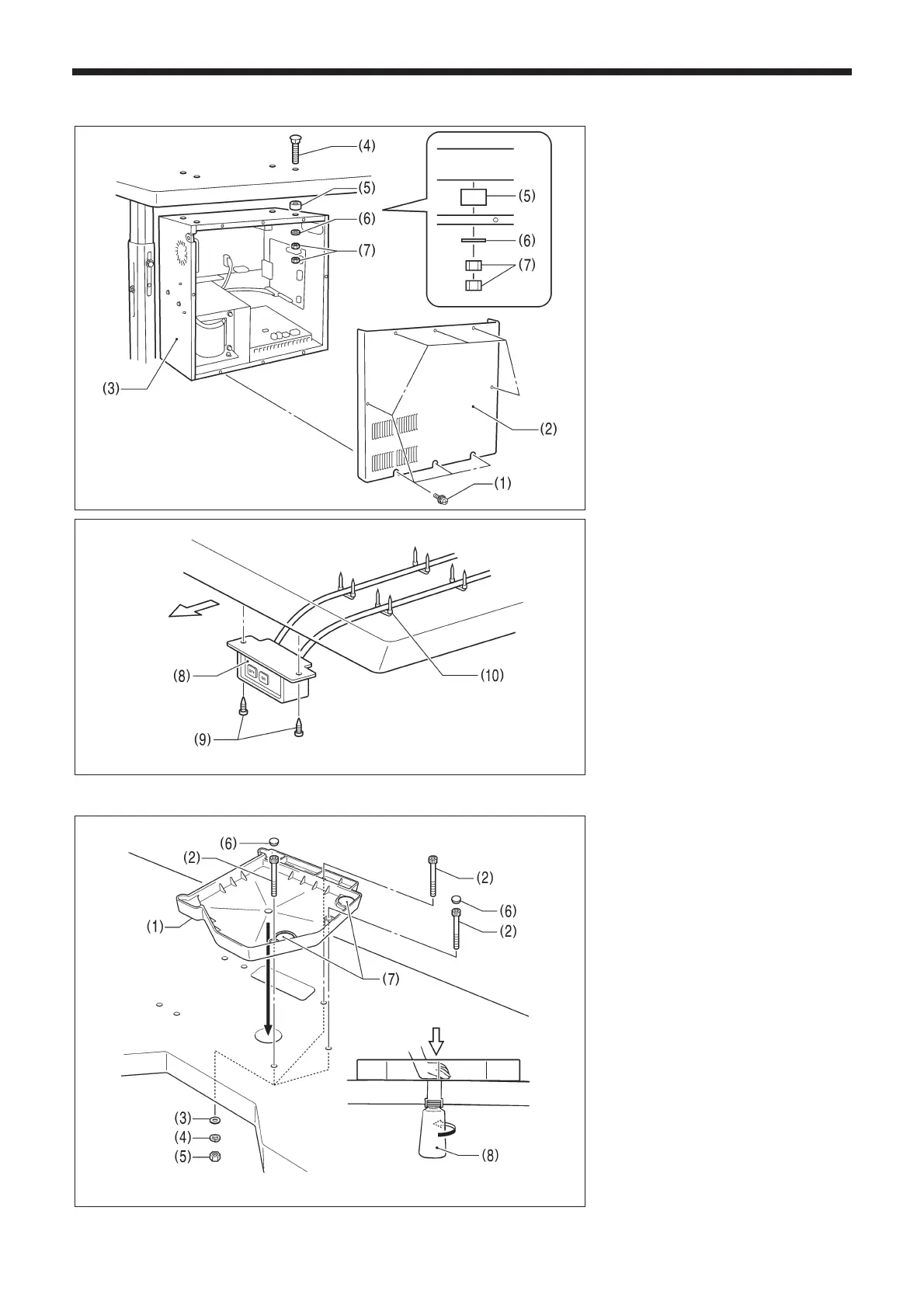

3-2. Installing the control box
Remove the eight screws (1), and then
remove the control box cover (2).
(3) Control box
(4) Bolts [4 pcs]
(5) Spacers [4 pcs]
(6) Plain washers [4 pcs]
(7) Nuts [8 pcs]
* The recommended tightening
torque for the nuts (7) is
4.0±0.1N㨯m.
(8) Power switch
(9) Wood screws [2 pcs]
(10) Staples [4 pcs]
3-3. Installing the oil pan
(1) Oil pan
(2) Bolts [3 pcs]
(3) Plain washers [3 pcs]
(4) Spring washers [3 pcs]
(5) Nuts [3 pcs]
(6) Rubber caps [2 pcs]
(7) Rubber cushion [2 pcs]
(8) Oiler
4404Q
Operator
4403Q
4405Q
To Next Page
