3. INSTALLATION
13
KE-430D, BE-438D

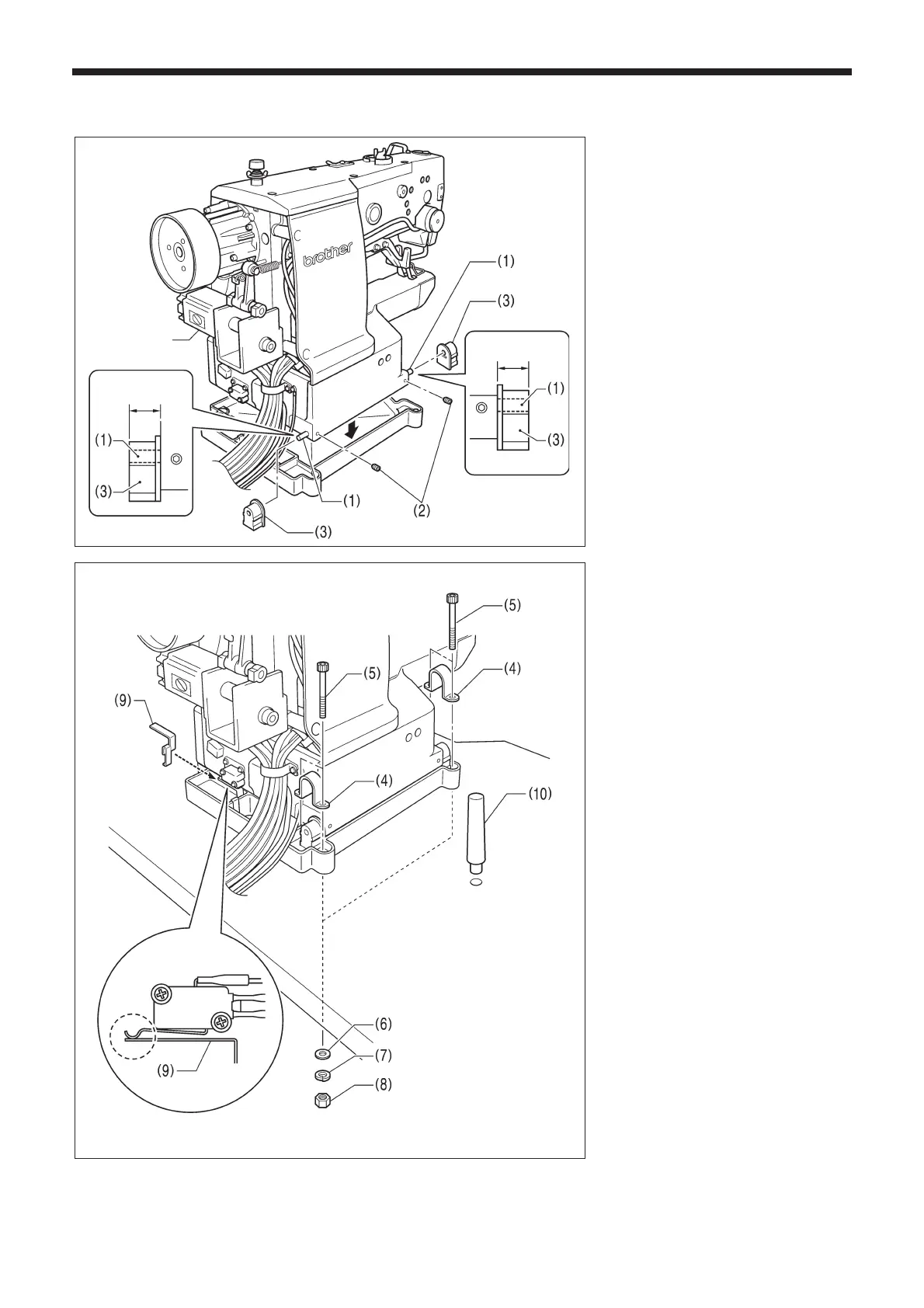

3-4. Installing the machine head
(1) Pins [2 pcs]
(2) Set screws [2 pcs]
(3) Rubber cushion assembly [2 pcs]
Place the machine head gently on top of
the oil pan and the rubber cushions.
Note:
• Be careful not to clamp any cords
between the machine head and the
oil pan.
• When holding the machine head, do
not hold it by the pulse motor,
otherwise it may damage the pulse
motor.
(4) Hinge holders [2 pcs]
(5) Bolts [4 pcs]
(6) Plain washers [4 pcs]
(7) Spring washers [4 pcs]
(8) Nuts [4 pcs]
(9) Head spring
(10) Head rest
Note:
• Check that the machine head switch
is turned on as shown in Figure 1.
• Tap the head rest (10) securely into
the table hole.
4406Q
Pulse motor
pprox. 20mm
pprox. 20mm
4407Q
Figure㧝
To Next Page
