3. INSTALLATION
15
KE-430D, BE-438D

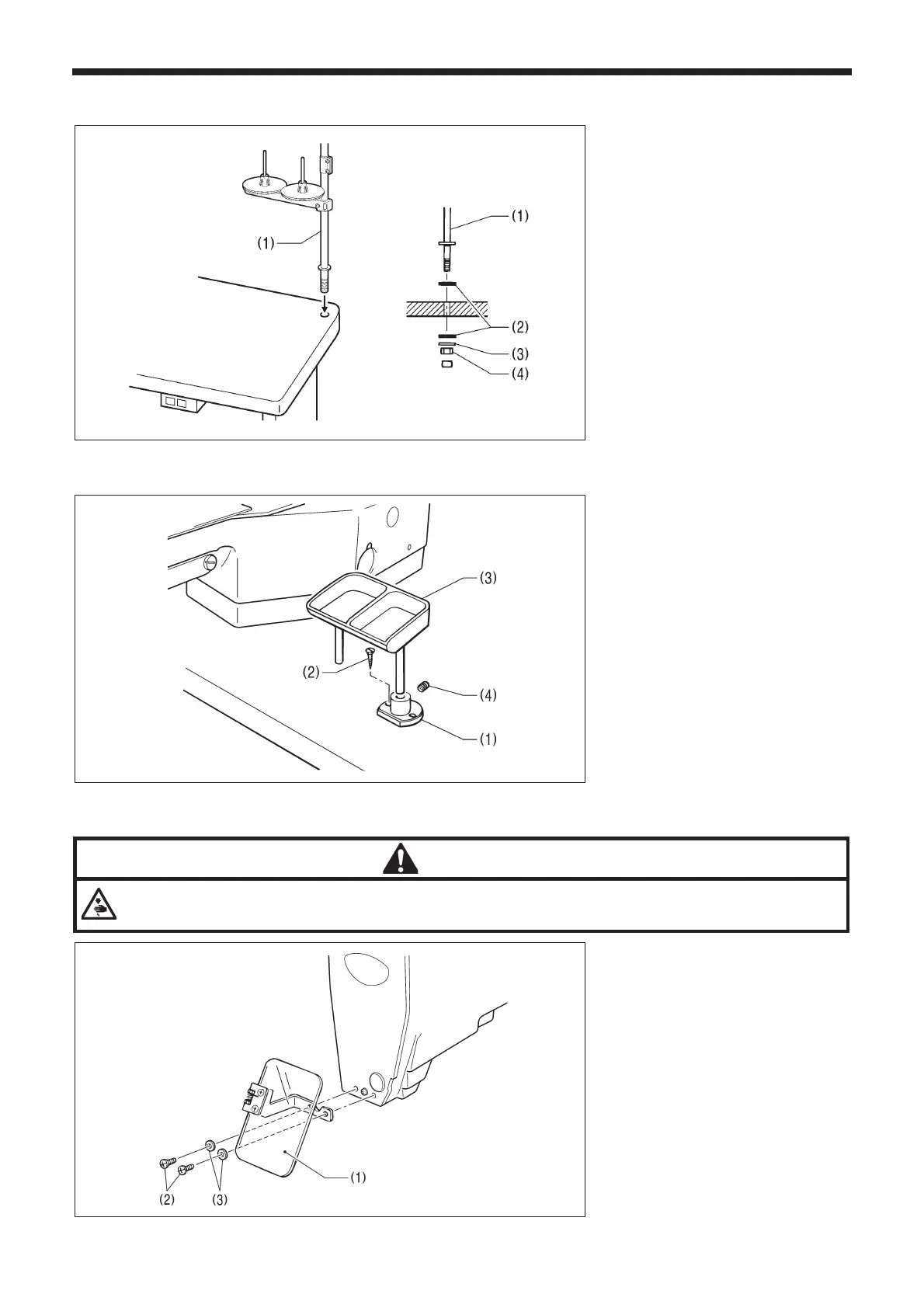

3-7. Installing the cotton stand
(1) Cotton stand
Note:
Securely tighten the nut (4) so that the
two rubber cushions (2) and the
washer (3) are securely clamped and
so that the cotton stand (1) does not
move.
3-8. Installing the button tray (BE-438D)
Install the button tray at a place
convenient for operation.
(1) Button tray holder
(2) Wood screws [2 pcs]
(3) Button tray
(4) Set screw
3-9. Installing the eye guard
CAUTION
Attach all safety devices before using the sewing machine.
If the machine is used without these devices attached, injury may result.
(1) Eye guard assembly
(2) Screws [2 pcs]
(3) Plain washers [2 pcs]
4411Q
4410Q
3636M
