3. INSTALLATION
14KE-430D, BE-438D

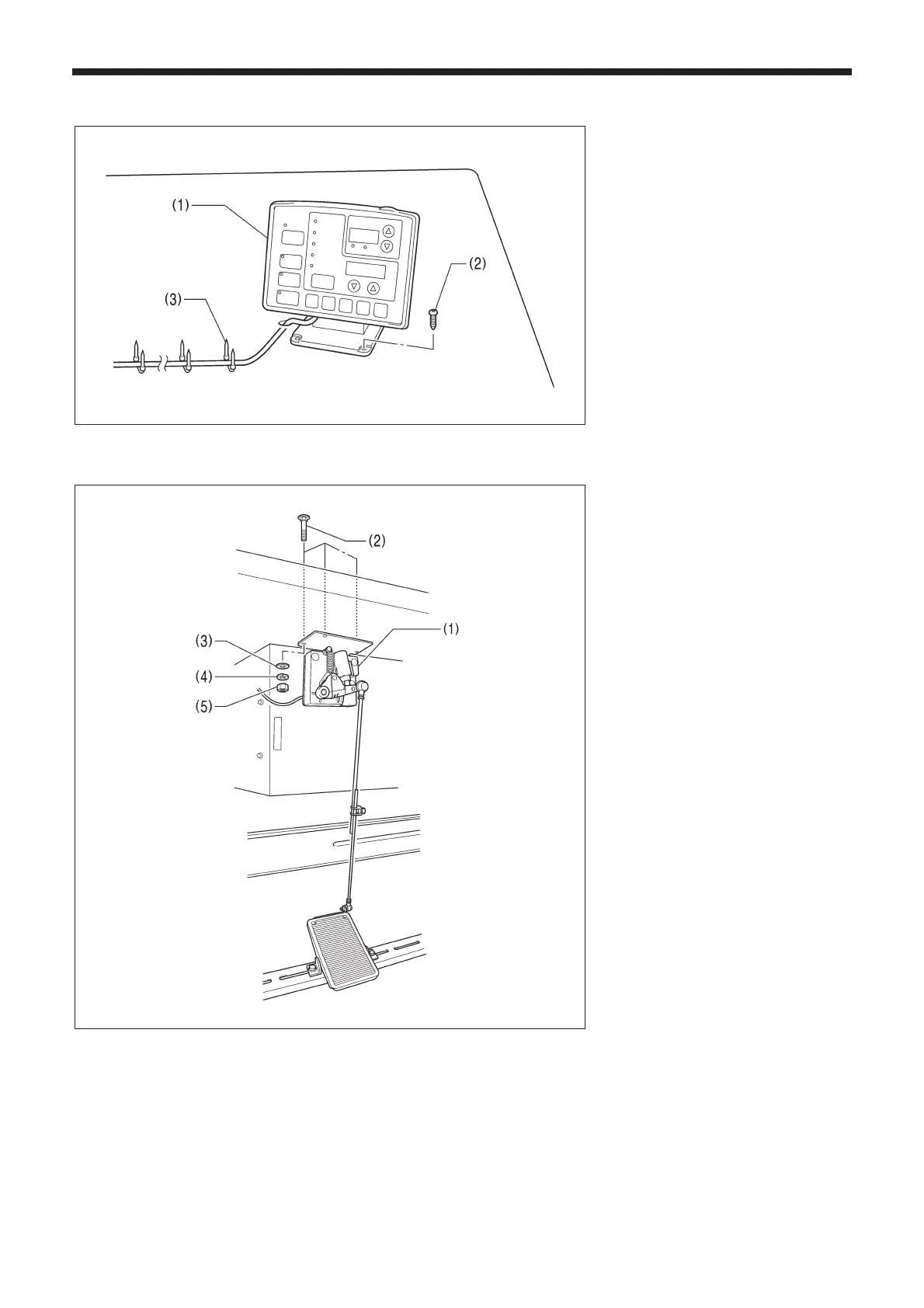

3-5. Installing the operation panel
(1) Operation panel
(2) Wood screws [4 pcs]
* Pass the panel cord through the hole in
the table, and then insert it into the
control box through the hole in the side
of the control box.
(3) Staples [3 pcs]
3-6. Installing the treadle unit
(1) Treadle unit
(2) Bolts [3 pcs]
(3) Plain washers [3 pcs]
(4) Spring washers [3 pcs]
(5) Nuts [3 pcs]
* Use a commercially-available foot
switch and connecting rod.
4409Q
4408Q
To Next Page
