Overview of the Machine
> Main Components
Main Components

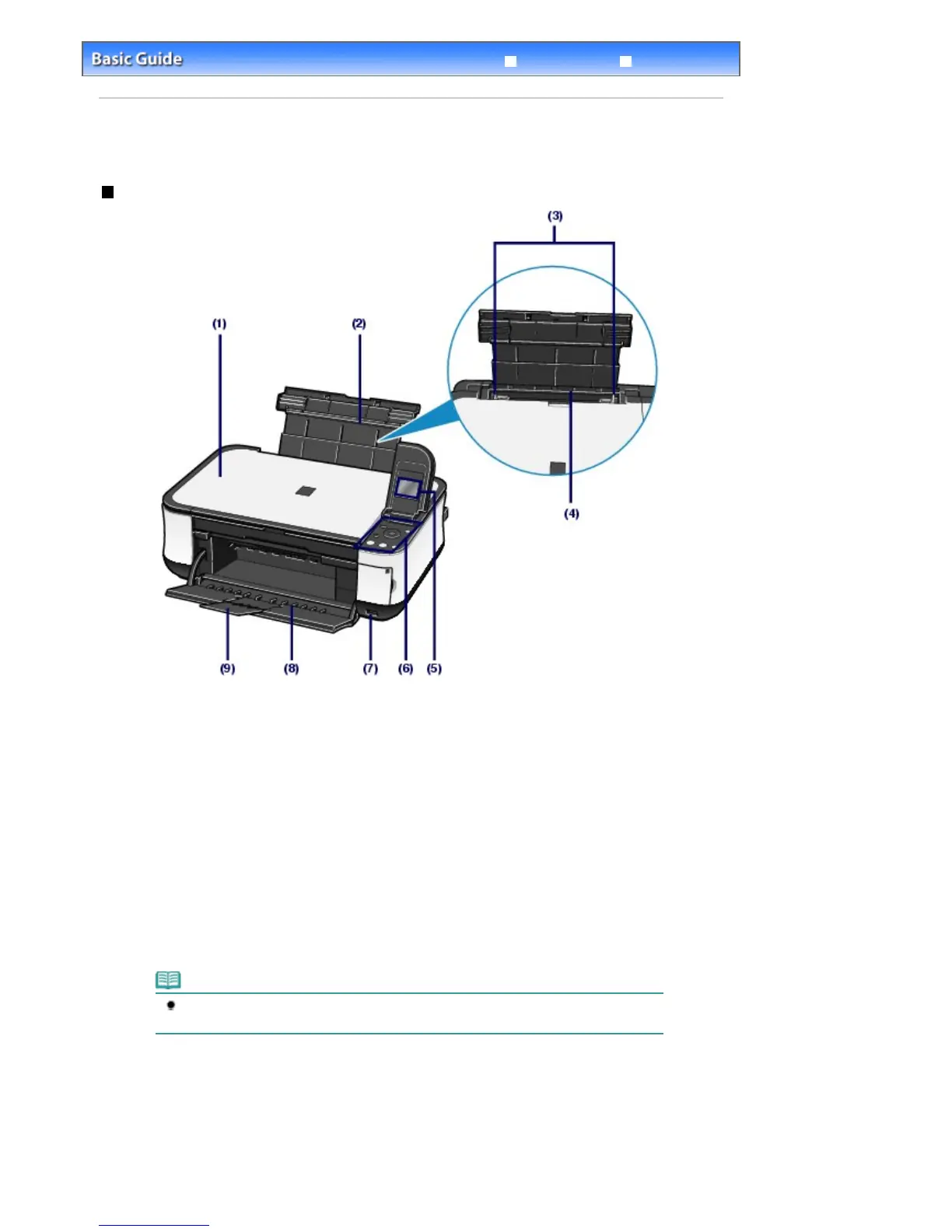

Front View
(1)
Document Cover
Open to load an original on the Platen Glass.
(2)
Paper Support
Raise and tip back to load paper in the Rear Tray.
(3)
Paper Guides
Slide to align with both sides of the paper stack.
(4)
Rear Tray
Load various sizes or types of paper which you can use on the machine. Two or more sheets of the same
size and type of paper can be loaded at the same time, and fed automatically one sheet at a time.
See
Loading Paper
.
(5)
LCD (Liquid Crystal Display)
Displays messages, menu selections, and the operation status. You can also preview photos on the LCD
before printing.
Note
The LCD will turn off if the machine is not operated for about 5 minutes. To restore the
display, press any button except the
ON
button or perform the print operation.
(6)
Operation Panel
Use to change the settings of the machine or to operate it.
See
Operation Panel
.
(7)
Direct Print Port
Connect a PictBridge compliant device such as a digital camera or the optional Bluetooth Unit BU-30* when
printing directly.
Page 4 of 681 pagesMain Components

Canon MP480 series Specifications

General

Print Technology	Inkjet
Print Resolution	4800 x 1200 dpi
Print Resolution (Black)	600 x 600 dpi
Scanner Type	Flatbed
Scanner Resolution	1200 x 2400 dpi
Functions	Print, Copy, Scan
Connectivity	USB 2.0
Display	1.8" LCD
Print Speed (Color)	16 ppm
Supported Media Sizes	Letter, Legal, 4" x 6", 5" x 7", 8" x 10", Envelopes
Operating System Support	Windows, Mac OS
Ink Cartridges	CL-211 Color
Print Speed (Black)	20 ppm
