(13)
Power Cord Connector
Plug in the supplied power cord.

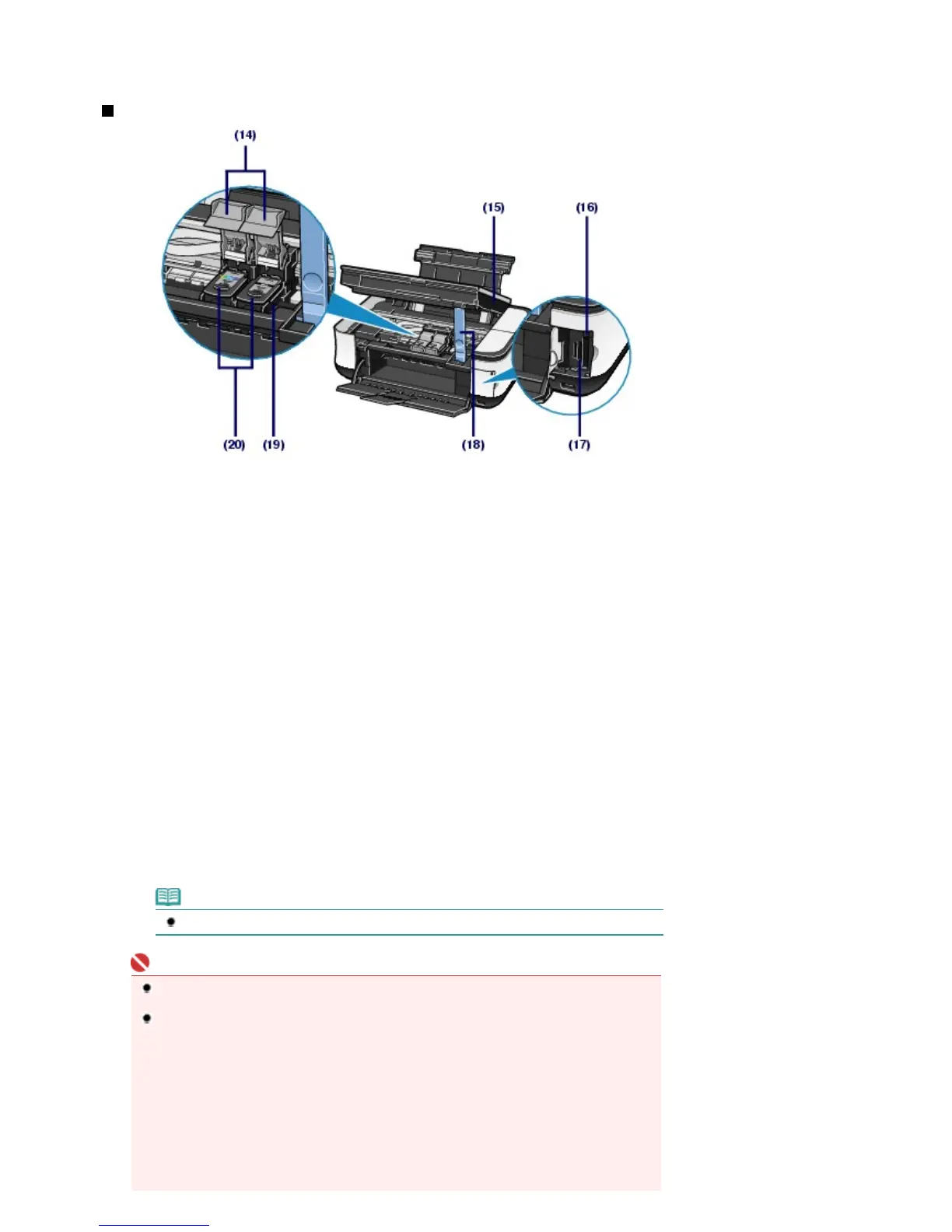

Inside View
(14)
Ink Cartridge Locking Covers
Locks the FINE Cartridges into place.
(15)
Scanning Unit (Cover)
Scans originals. Open it to replace the FINE Cartridges or remove jammed paper inside the machine. When
opening the Scanning Unit (Cover), lift it with the Document Cover closed.
(16)
Access lamp
Lights or flashes to indicate the memory card status.
See
Inserting the Memory Card
.
(17)
Card Slot
Insert a memory card.
See
Inserting the Memory Card
.
(18)
Scanning Unit Support
Holds the Scanning Unit (Cover) being opened.
(19)
FINE Cartridge Holder
Install the FINE Cartridges.
The Color FINE Cartridge should be installed into the left slot and the Black FINE Cartridge should be installed
into the right slot.
(20)
FINE Cartridges (Ink Cartridges)
replaceable cartridge that is integrated with Print Head and ink tank.
Note
For details on installing the FINE Cartridges, refer to the printed manual:
Getting Started
.
Important
The area (A) indicated in the figure below may be splattered with ink. It does not affect the
performance of the machine.
Do not touch the area (A). The machine may not print properly if you touch it.
