8.2 - Water connections
The hydraulic module options are only compatible with closed loops.
The use of the hydraulic module on open systems is prohibited.

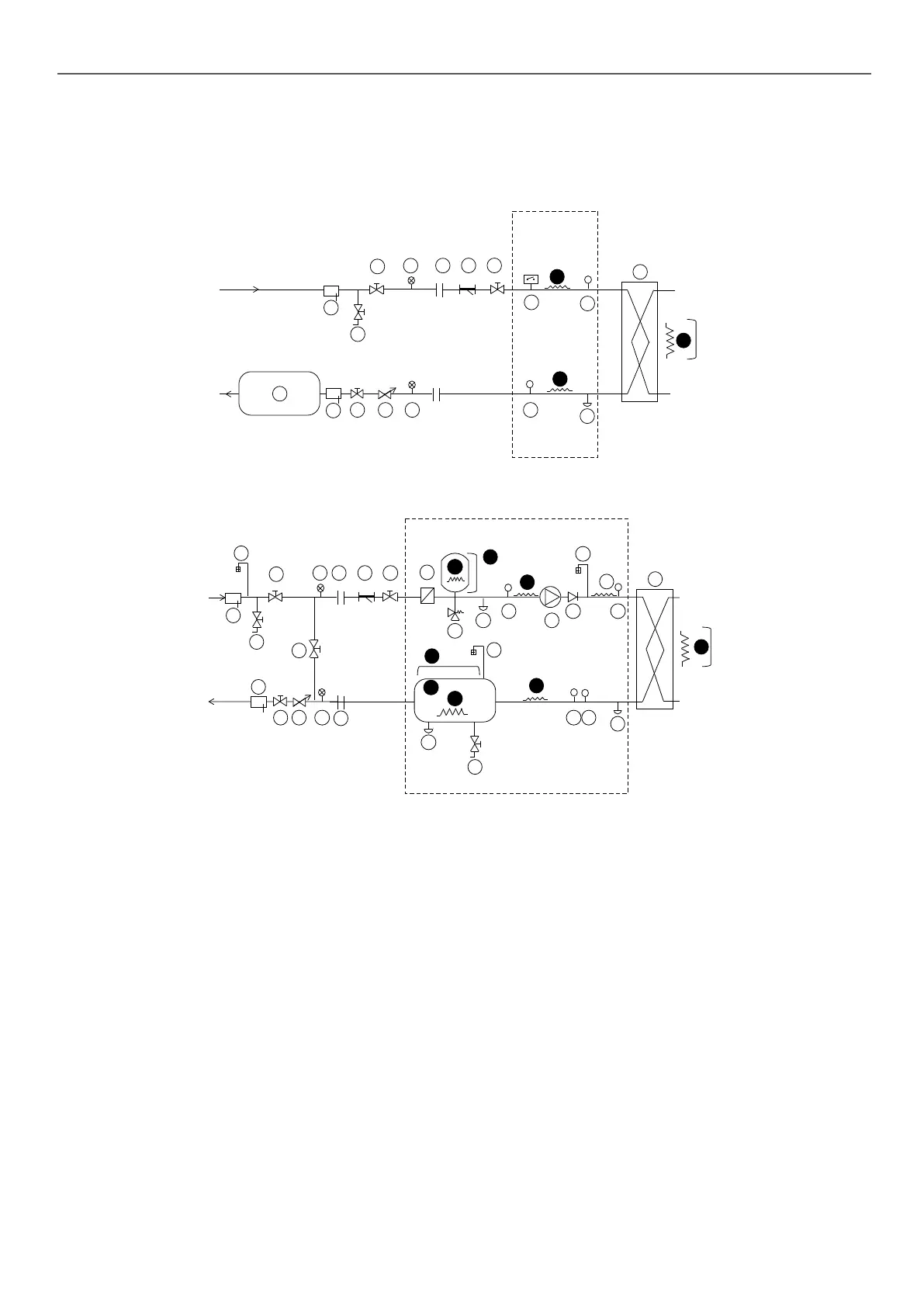

Schematic diagram of the hydraulic circuit without the hydraulic module
12
9
8
6
2119
19
22
T
T
Opon
23
Opon
Opon
21
14
25
16
16
13
13
13
20
19
18
Schematic diagram of the hydraulic circuit with the hydraulic module
12
9
8
3
4
7
6
6
21
24
19
19
16
17
22
T
P
T
Opon
20
1
10
P
5
16
19
Opon
11
23
13
Opon
Opon
Opon
21
13
2
13
13
13
Opon
6
5
23
25
25
13
15
18
18
Key
Components of the unit and hydraulic module
1  Screen lter (particle size of 1.2 mm)
2 Expansion tank (option)
3 Relief valve
4 Circulating pump (single or dual)
5 Air purge
6 Water drain tap
7 Pressure sensor
Note: Provides pressure information for the pump inlet (see Control manual)
8 Temperature probe
Note: Provides temperature information for the water exchanger outlet (see
Control manual)
9 Temperature probe
Note: Provides temperature information for the water exchanger inlet (see Control
manual)
10 Pressure sensor
Note: Provides pressure information for the water exchanger outlet (see Control
manual)
11 Check valve (If dual pump)
12 Plate heat exchanger
13 Heater or heat trace cable for frost protection (Option)
14  Water exchanger ow rate sensor 
15  Bu󰀨er Tank Module (Option)
Installation components
16 Pocket
17 Air purge
18 Flexible connection
19  Shut-o󰀨 valve
20  800 µm screen lter (mandatory for a unit without a hydraulic module)
21 Pressure gauge
22  Water ow control valve
Note: Not required if hydraulic module with variable-speed pump
23 Charging valve
24  Bypass valve for frost protection (if shut-o󰀨 valves (item 19) are closed during 
winter)
25  Bu󰀨er tank (if required)
---- Hydraulic module (unit with hydraulic module option)
Notes:
- The installation must be protected against freezing.
- The unit's hydraulic module and the water heat exchanger may be protected
(factory-tted  option)  against  freezing  using  electric  heaters  and  heat  trace 
cables (13)
- The pressure sensors are assembled on connections without Schrader.
Depressurise and drain the system before any work.
8 - WATER CONNECTIONS
Option
Option
Option
Option
Option
Option
Option
Option
Option
25
