— 17 —
7-3. OPERATION CHECK
● TAPE DETECTION SWITCH

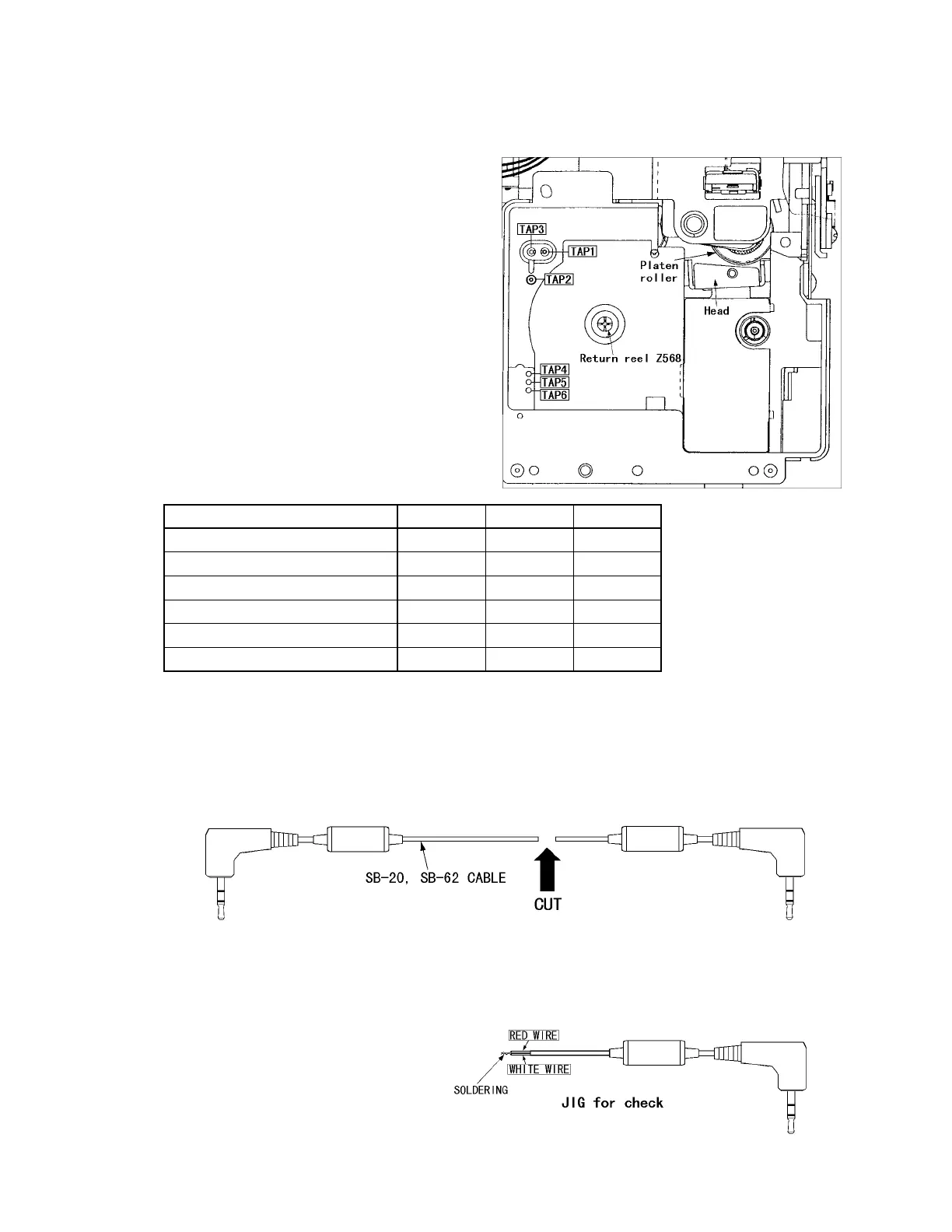

Opening the cassette case cover, six black
switches (TAP1~6) appear. (Refer to the
right figure)
These switches detect the tape width, length
and coloring.
In the case of short color tape, refer to the
lower table. Normally, these tapes are used
for QG-100.
TAPE DETECTION SWITCH 18mm 36mm 46mm
TAP1 ON OFF OFF
TAP2 ON ON OFF
TAP3 ON OFF ON
TAP4 OFF OFF OFF
TAP5 OFF OFF OFF
TAP6 OFF OFF OFF
Refer to 4. SCHEMATIC DIAGRAM (4-5. Sensor PCB Z568-2).
● OPERATION CHECK (QV camera-QV-10, QV-10A, QV-30. Don't use QV-100)
1.Make the jig for check using SB-20 or SB-62 communication cable as mentioned bellow.
Cut the cable, then strip the cov-
ering.
Strip the covering of red and
white wire, then solder these core
wire.
Cut the copper wires for shield-
ing.
➜
To Next Page
