9. DISASSEMBLY

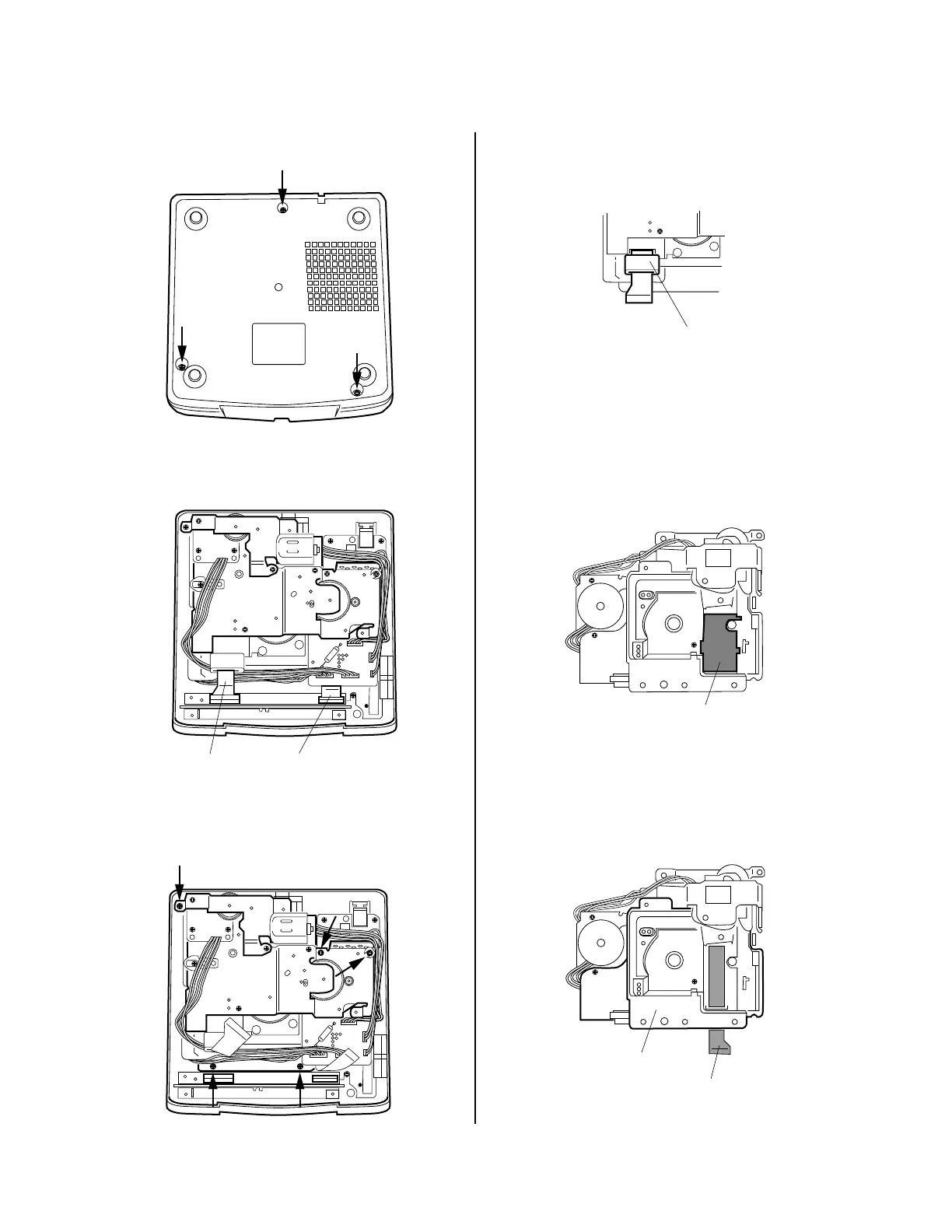

1 Turn over the unit then remove 3 screws.
4 Remove ferrite core from shield plate.
2 Disconnect FPC and FFC joiner from con-
nector.
3 Remove 5 screws pointed by arrows then
remove printer unit from the main unit.
Ferrite core
5 Turn over the printer then remove the FPC
black protector plate.
Black plate
6 Disconnect FPC from casseette case.
Cassette case
FPC
FPC
FFC joiner
