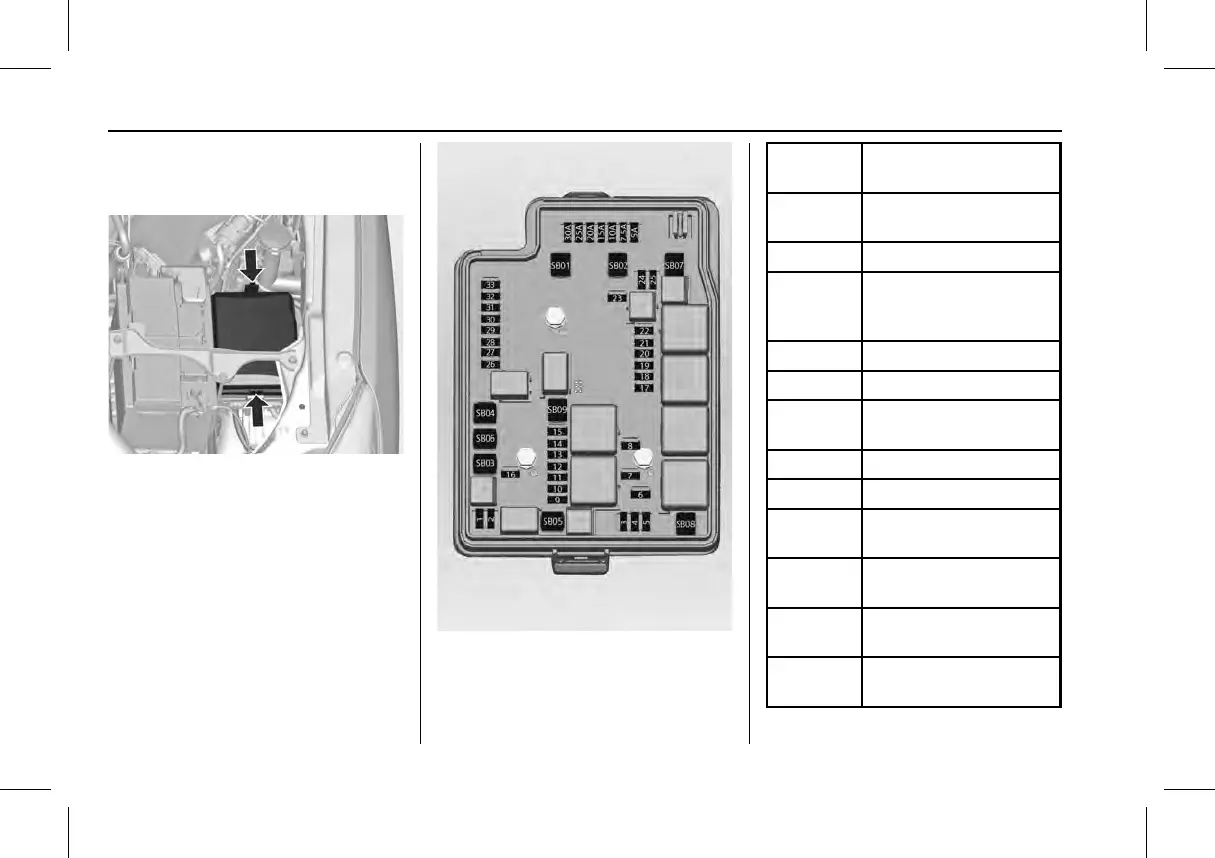

Engine Compartment
Fuse Block
The fuse box is in the front left of
the engine compartment.
Disengage the cover, lift it upward
and remove it.
Not all fuse box descriptions in this
manual may apply to your vehicle.
It is accurate at the time of printing.
When inspecting the fuse box, refer
to the fuse box label.
Mini
Fuses Usage
1
10A – Compressor
A/C Clutch
2 —
3
15A - Electric Power
Steering (EPS) (if
available)
4 —
5 15A – Horn
6
15A – Front Fog Lamp
(if available)
7 10A – High Beam LH
8 10A – High Beam RH
9
7.5A - Engine Control
Module - (Diesel)
10
15A – Powertrain
Relay (3) – (Diesel)
11
20A – Engine Control
Module (1) (Diesel)
12
10A – Powertrain
Relay (1)
To Next Page
