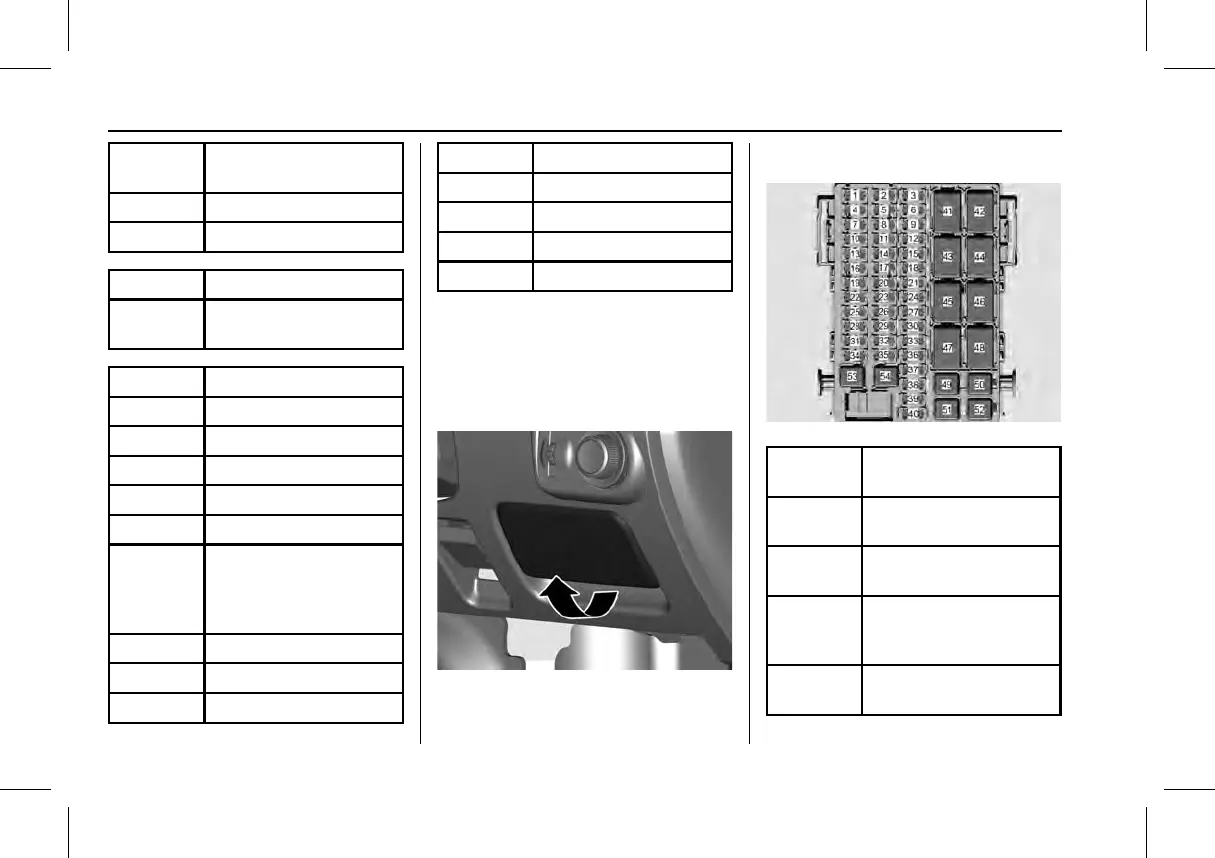

264 Vehicle Care
JCase
Fuses Usage
SB08 Not Used (Diesel)
SB09 30A – Spare (Diesel)
Maxi Usage
F34
30A – Trailer Hitch
Module (if available)
Relays Usage
RLY01 Starter
RLY03 High Beam
RLY05 Not used
RLY08 Front Wiper Control
RLY09 Front Wiper Speed
RLY10
Rear Defogger and
Outside Rear View
Mirror Defogger (if
available)
RLY11 Powertrain
RLY12 A/C Clutch
RLY13 Fuel Heater (Diesel)
Relays Usage
RLY14 Not Used (Diesel)
RLY15 Not Used
RLY18 Run Crank
RLY19 Fuel Pump (Diesel)
Instrument Panel Fuse
Block
The fuse box is behind the
instrument panel cap.
Remove the instrument panel cap in
the direction of the arrow.
Reinstall the cap in reverse order.
Mini
Fuses Usage
1
20A – Body Control
Module (6)
3
20A – Cigarette
Lighter (if available)
6
20A – Front and Rear
Power Outlets (if
available)
7
30A – Body Control
Module (8)
