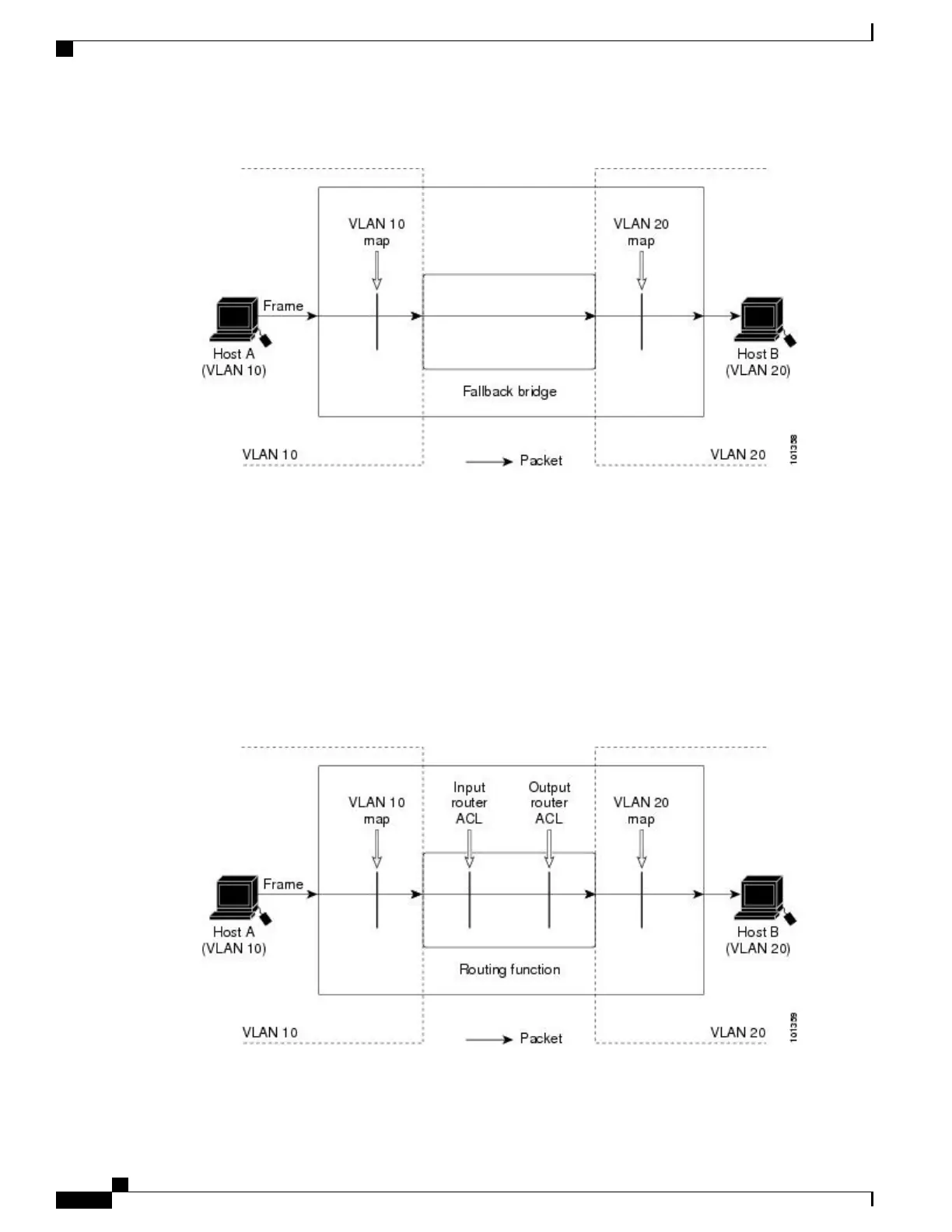

Figure 9: Applying ACLs on Bridged Packets
Example: ACLs and Routed Packets
This example shows how ACLs are applied on routed packets. The ACLs are applied in this order:
1
VLAN map for input VLAN
2
Input router ACL
3
Output router ACL
4
VLAN map for output VLAN
Figure 10: Applying ACLs on Routed Packets
Catalyst 2960-XR Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX1
152 OL-29434-01
Configuring IPv4 ACLs
Configuration Examples of Router ACLs and VLAN Maps Applied to VLANs
