Step 2
Use the two number-10 Phillips pan-head screws to secure the DIN rail mount to the switch.

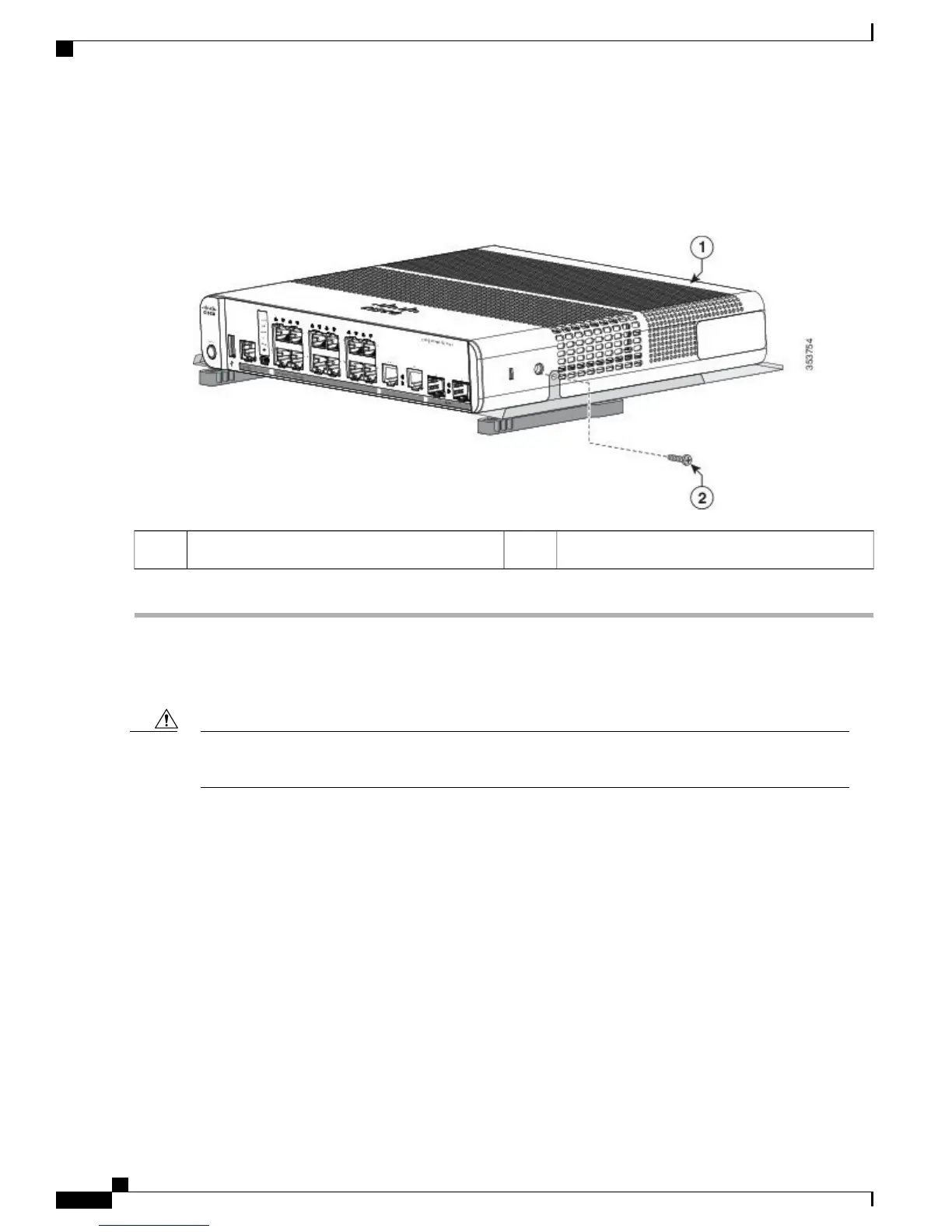

Figure 25: Securing the DIN-Mount Tray to the Switch
Number-10 Phillips pan-head screws2Switch1
Mounting the Switch on a DIN Rail
Do not install the switch with its front panel facing up. Following safety regulations, install the switch
with its front panel facing down, to allow sufficient airflow and to provide easier access to the cables.
Caution
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
32
Switch Installation
On a DIN Rail
