Cisco Catalyst 3560-CX User Manual

SFP and SFP+ Module Slots
The switch has either two 1-Gigabit SFP or 10-Gigabit SFP+ module slots. The slots marked SFP+ support
both SFP and SFP+ modules. The SFP slots support only the SFP modules.
For Cisco SFP and SFP+ modules documentation, including compatibility matrixes, refer to this URL: http:/
/www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html
LEDs
You can use the switch system and port LEDs to monitor switch activity and performance.

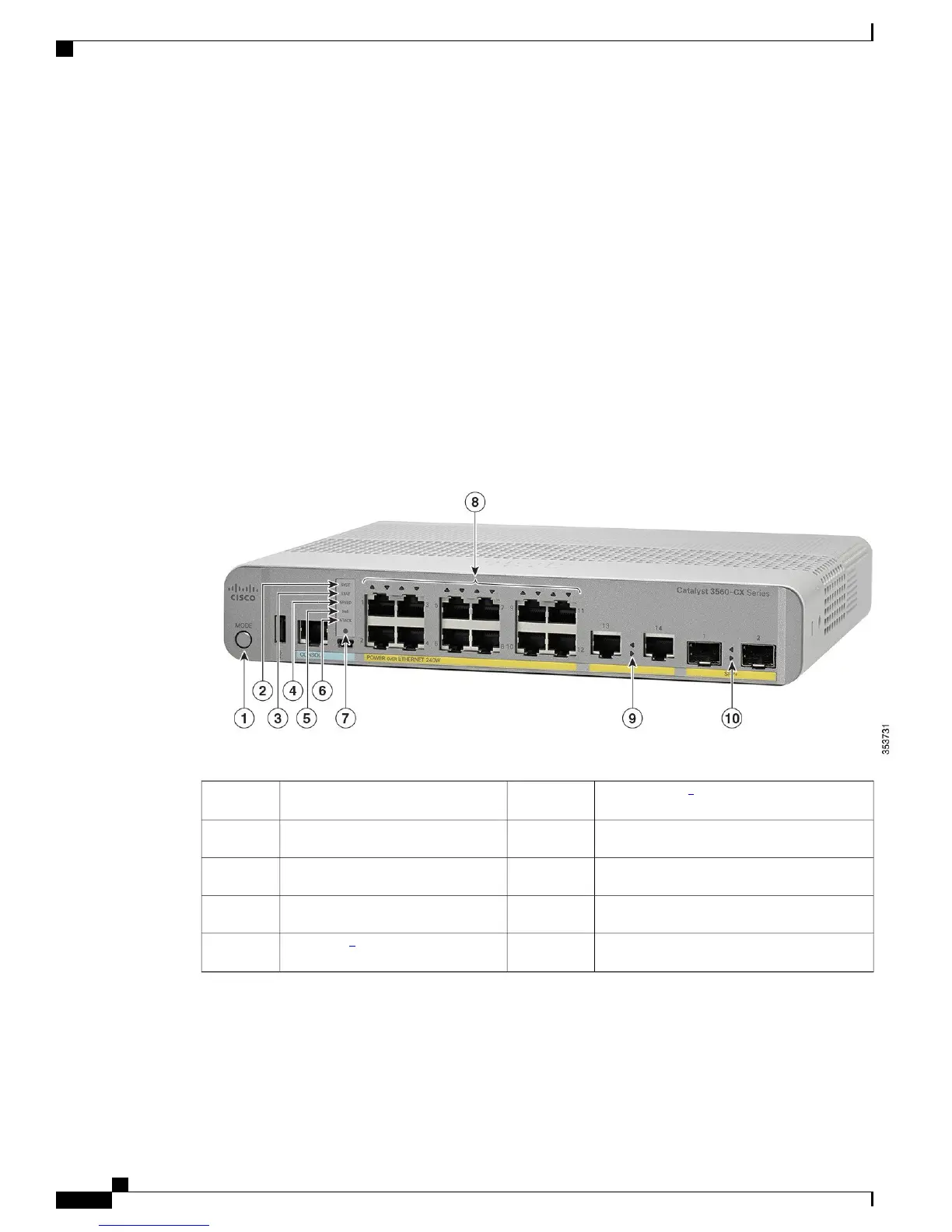

This figure shows the switch LEDs and the Mode button that you use to select a port mode.
Figure 4: Switch LEDs and Mode Button
STACK LED
4
6Mode button1
Console LED7SYST LED (system)2
Port LEDs8STAT LED (status)3
Uplink port LED (copper)9SPEED LED4
Uplink port LED ( SFP/SFP+)10PoE LED
5
5
4
Only on switch models that have stacking capability. Note that this release does not support switch stacking.
5
Only on switch models that support PoE.
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
6
Product Overview
SFP and SFP+ Module Slots

Cisco Catalyst 3560-CX Specifications
