Step 3
If the module has a bale-clasp latch, move it to the open, unlocked position.
Step 4
Align the module in front of the slot opening, and push until you feel the connector snap into place.
Step 5
If the module has a bale-clasp latch, close it.
Step 6
For fiber-optic SFP or SFP+ modules, remove the dust plugs and save.
Step 7
Connect the SFP cables.

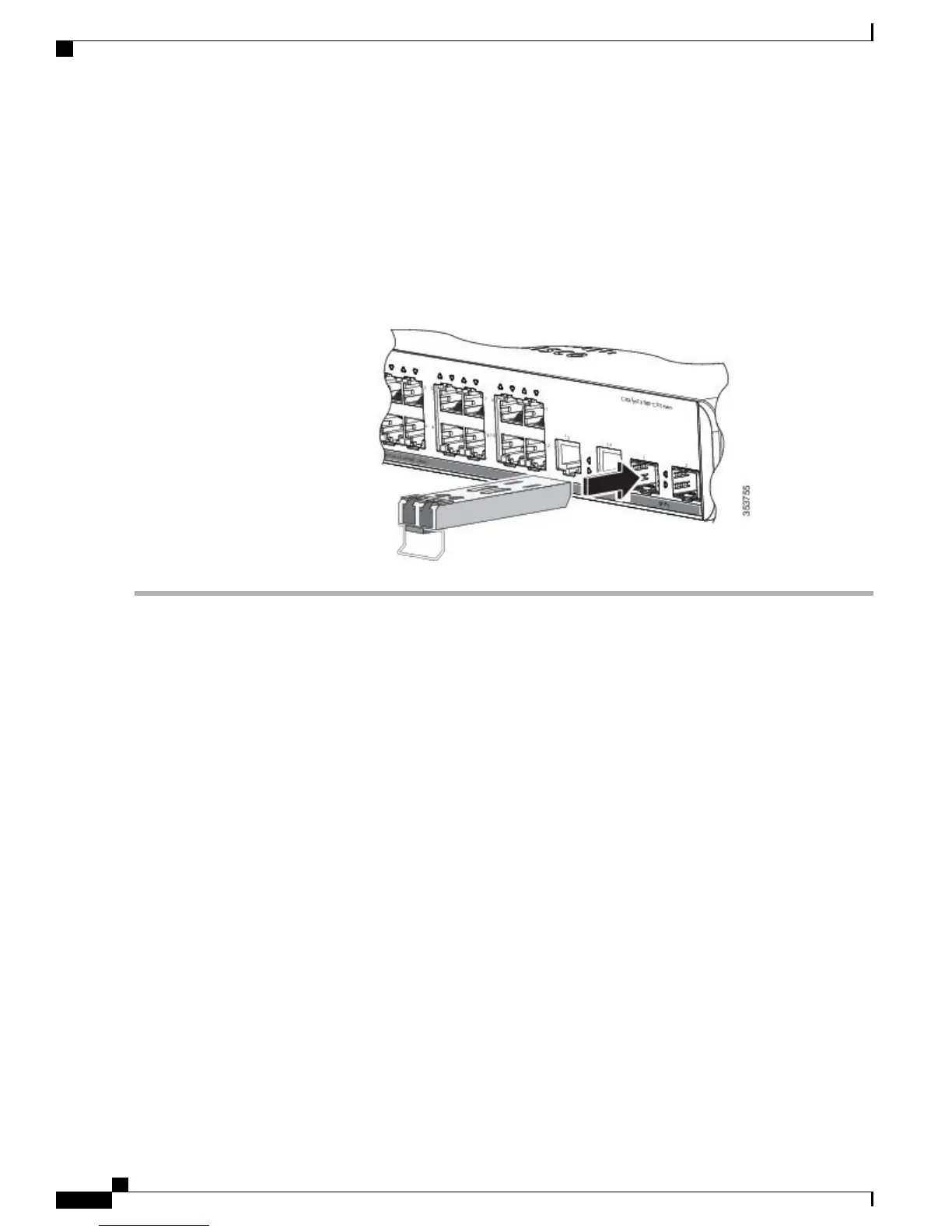

Figure 41: Installing an SFP Module
Removing an SFP or SFP+ Module
SUMMARY STEPS
1.
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
2.
Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send
(TX) and which is receive (RX).
3.
Insert a dust plug into the optical ports of the SFP or SFP+ module to keep the optical interfaces clean.
4.
If the module has a bale-clasp latch, pull the bale out and down to eject the module. If the latch is obstructed
and you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument to
open the latch.
5.
Grasp the SFP or SFP+ module, and carefully remove it from the module slot.
6.
Place the module in an antistatic bag or other protective environment.
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
44
Switch Installation
Removing an SFP or SFP+ Module
