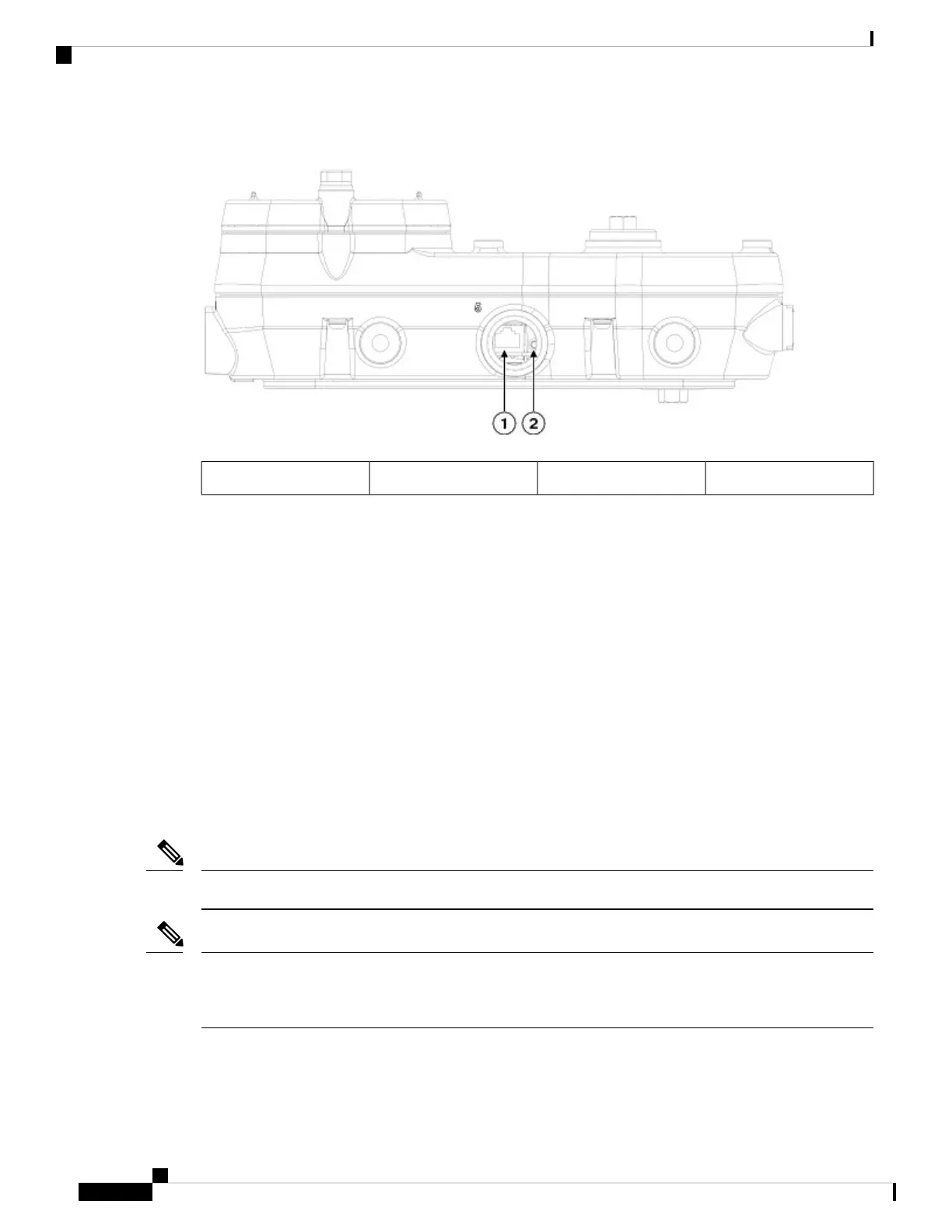

Figure 23: IW-6300H Access Point Console Port and Reset Button
Reset button2Console port1
The reset button is under a covering M25 plug. Properly tighten it at the time of installation, and also every
time it is removed and replaced. Tighten the screw to 5-6 lb-ft. If you do not tighten the plug properly, it will
not meet IP67 criteria, and may lead to water leaking into the unit.
Powering the Access Point
The access point can be powered by one of these methods:
• Power over Ethernet by power injector AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2=
• AC or DC power
• IW-6300H-AC-x-K9: 85-264V~ maximum, marked 100-240V~, 50-60Hz, 1.3A
• IW-6300H-DC-x–K9: 44 to 57Vdc, 1.2A
• IW-6300H-DCW-x-K9: 10.8 to 36Vdc, 5.9A
The marked DC input range is an absolute range. Do not apply tolerances.
Note
In all cases above, the AC branch circuit powering the access point must be limited to no more than 20A from
the over-protection device supplied by the user. This branch power protection must meet all local and national
electrical codes.
Note
The IW6300 access point for hazardous locations can be connected to more than one power source. The access
point detects the available power sources and switches to the preferred power source using the following
priority:
Cisco Catalyst IW6300 Heavy Duty Series Access Point Hardware Installation Guide
40
Installing the Access Point
Powering the Access Point
