Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features

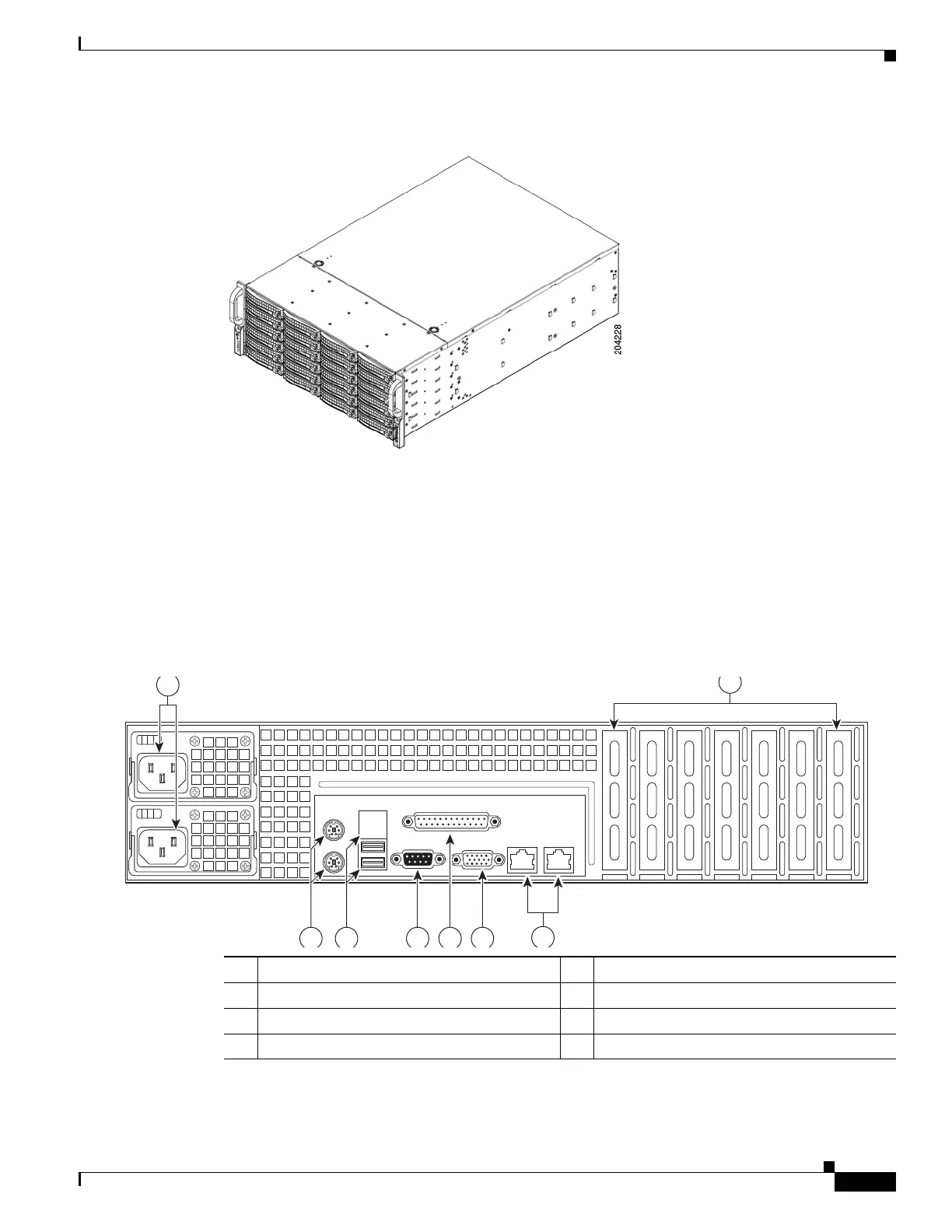

Figure 1-7 CDE420 and CDE460
To view the CDE285-S, see Cisco UCS C240 M4 High-Density Rack Server (Small Form Factor Disk
Drive Model).
To view the CDE285-L, see Cisco UCS C240 M4 High-Density Rack Server (Large Form Factor Disk
Drive Model).
Figure 1-8 is the rear view of the CDE205 and CDE220 showing the location of the power supplies,
connectors and slots.
Figure 1-8 CDE205 and CDE220 Rear View
1 Power connectors (the CDE205 only has one) 5 Parallel port (not supported)
2 PCI expansion slots 6 Serial console interface
3 Interfaces (eth0 on left; eth1 on right) 7 USB ports
4 VGA interface 8 Mouse and keyboard connectors
204347
6 5 4
3
8 7
1
2
1234567
