Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE250 2S8

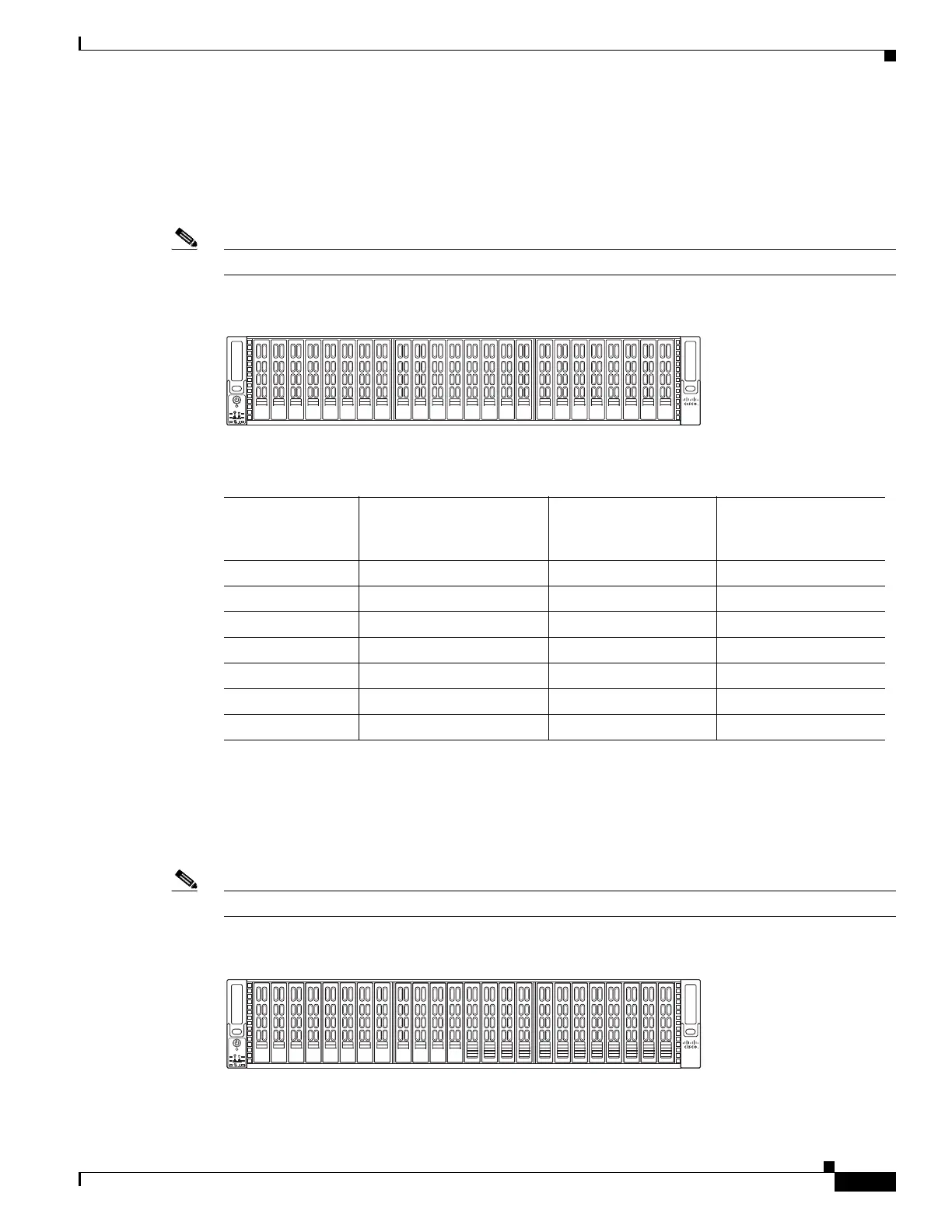

Figure 1-30 is a front view of the CDE250 2S8 showing the location of the storage drives. Table 1-35
lists the CDE250 2S8 PCI expansion cards and their corresponding PCI slot numbers (see Figure 1-9 to
see the location of the PCI expansion slots).
Note If this CDE is in an IS system, the storage drive numbering is from 0 to 25.
Figure 1-30 CDE250 2S8 Drives
CDE250 2S9
Figure 1-31 is a front view of the CDE250 2S9 showing the location of the storage drives. Table 1-36
lists the CDE250 2S9 PCI expansion cards and their corresponding PCI slot numbers (see Figure 1-9 to
see the location of the PCI expansion slots).
Note If this CDE is in an IS system, the storage drive numbering is from 0 to 12.
Figure 1-31 CDE250 2S9 Drives
RESET
2
54339
1 2 3 4 5 6 7 8 9 10111213141516 1718192021222324
Table 1-35 CDE250 2S8 PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card VDS-IS Interface
Name
(top to bottom)
VDS-TV Interface
Name
(top to bottom)
1— — —
2 NIC—dual (10GE) fiber 1/0 2/0 eth6 eth7
3— — —
4— — —
5— — —
6 NIC—dual (10GE) fiber 3/0 4/0 eth8 eth9
7 NIC—quad copper 3/0 4/0 5/0 6/0 eth2 eth3 eth4 eth5
RESET
2
54338
1
2 3 4 5 6 7 8
9 10 11 12
