Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE460-4R1
Figure 1-38 is a front view of the CDE460-4R1 showing the location of 24 of the storage drives, and
Figure 1-39 is a rear view of the CDE460-4R1 showing the location of the remaining 12 storage drives.
Table 1-47 lists the CDE460-4R1 PCI expansion cards and their corresponding PCI slot numbers.

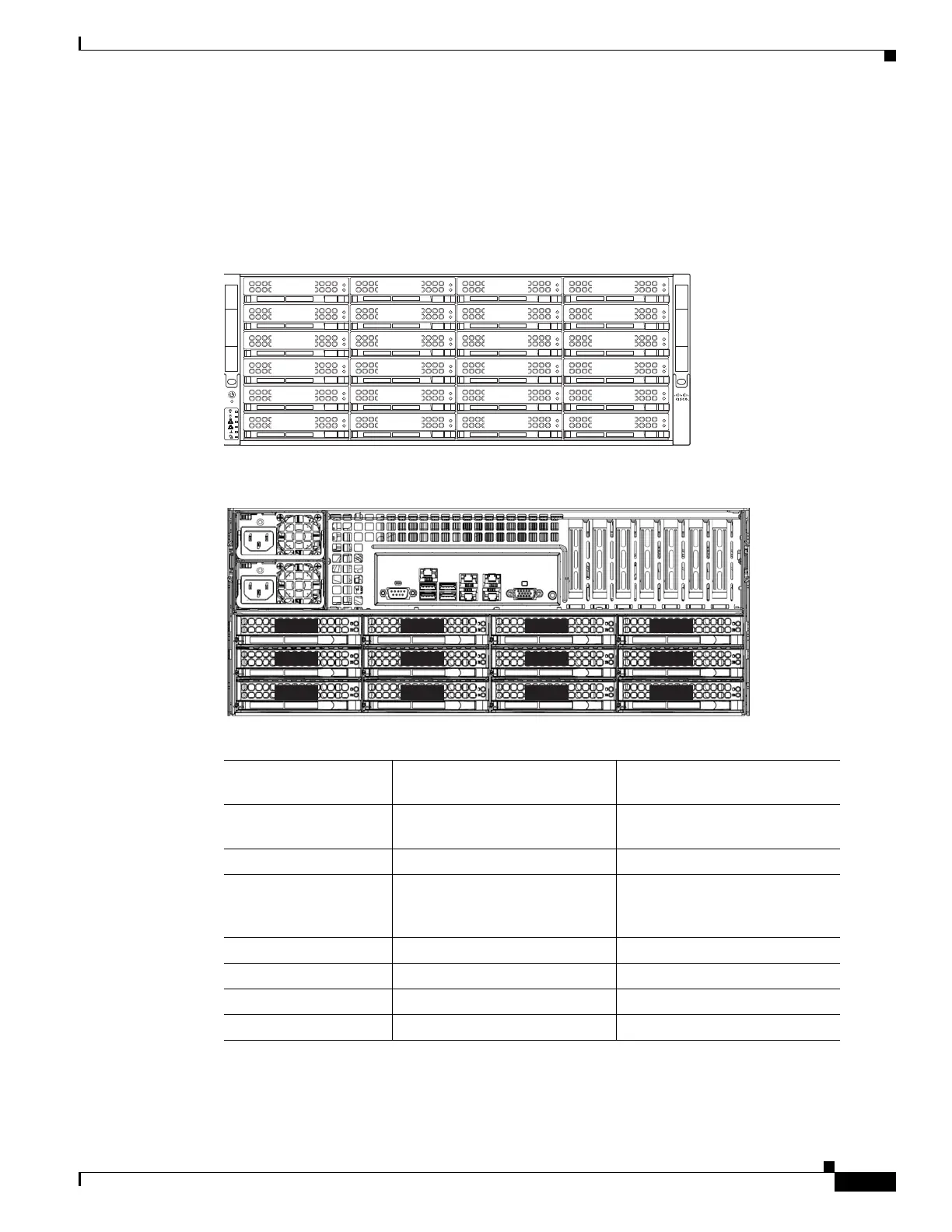

Figure 1-40 CDE460-4R1 Front Drives
Figure 1-41 CDE460-4R1 Rear Drives
RESET
205501
disk3
disk2
disk1
disk6
disk5
disk4
disk9
disk8
disk7
disk12
disk11
disk10
disk15
disk14
disk13
disk18
disk17
disk16
disk21
disk20
disk19
disk24
disk23
disk22
Table 1-47 CDE460-4R1 Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1 SAS Controller LSI SAS2
9261-8i (Internal)
—
2— —
3 SAS Controller
AOC-S2308L-L8E LSI 2308
(External)
—
4 NIC—dual fiber eth6 eth7
5 NIC—dual fiber eth2 eth3
6— —
7— —
345086
disk25
disk26
disk27
disk28
disk29
disk30
disk31
disk32
disk33
disk34
disk35
disk36
