Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE475

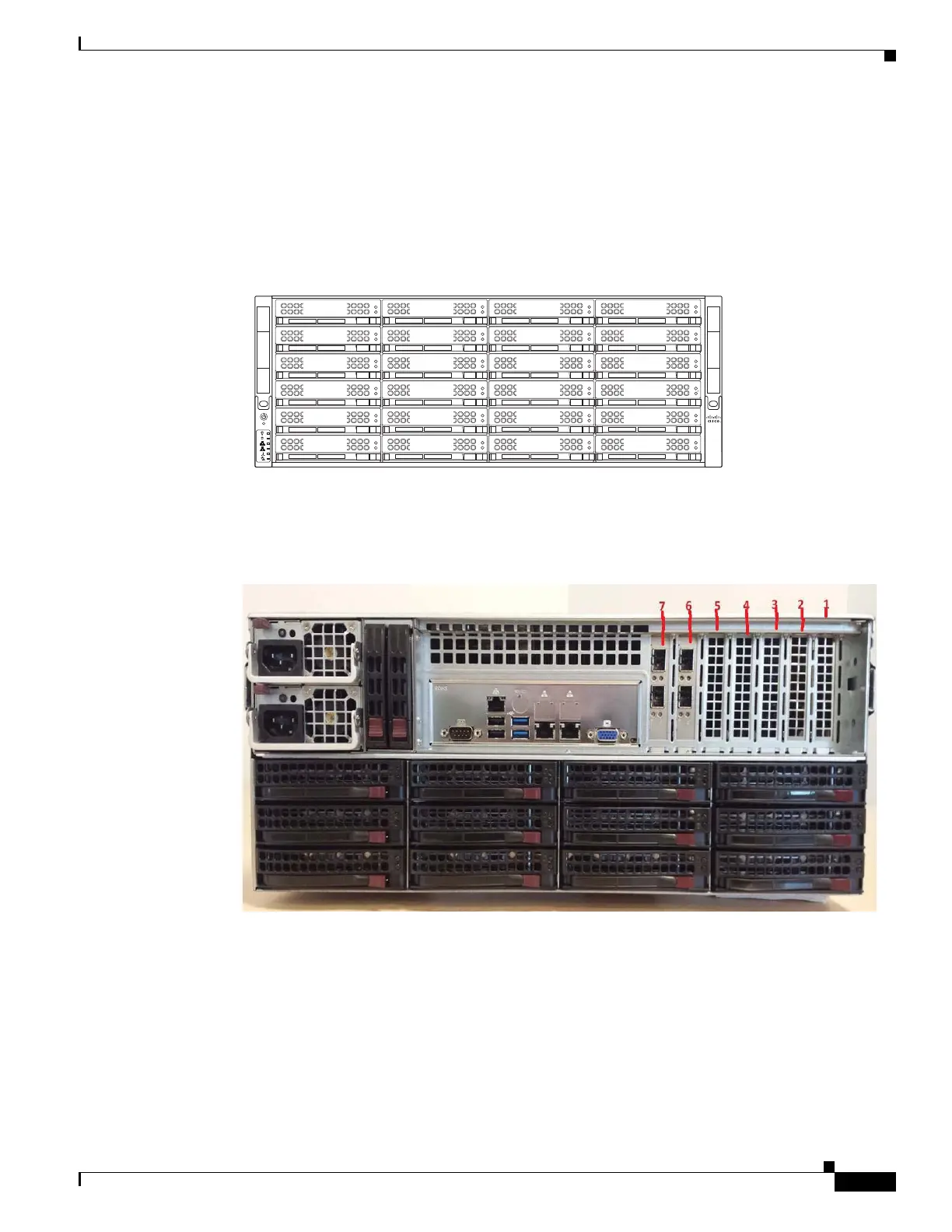

Figure 1-44 is a front view of the CDE475 showing the location of 24 of the storage drives, and
Figure 1-43 is a rear view of the CDE475 showing the location of the remaining 12 storage drives.
Table 1-49 lists the CDE475 PCI expansion cards and their corresponding PCI slot numbers.
Figure 1-44 CDE475 Front Drives
Figure 1-45 CDE475 Rear Drives
RESET
2
05501
disk3
disk2
disk1
disk6
disk5
disk4
disk9
disk8
disk7
disk12
disk11
disk10
disk15
disk14
disk13
disk18
disk17
disk16
disk21
disk20
disk19
disk24
disk23
disk22
